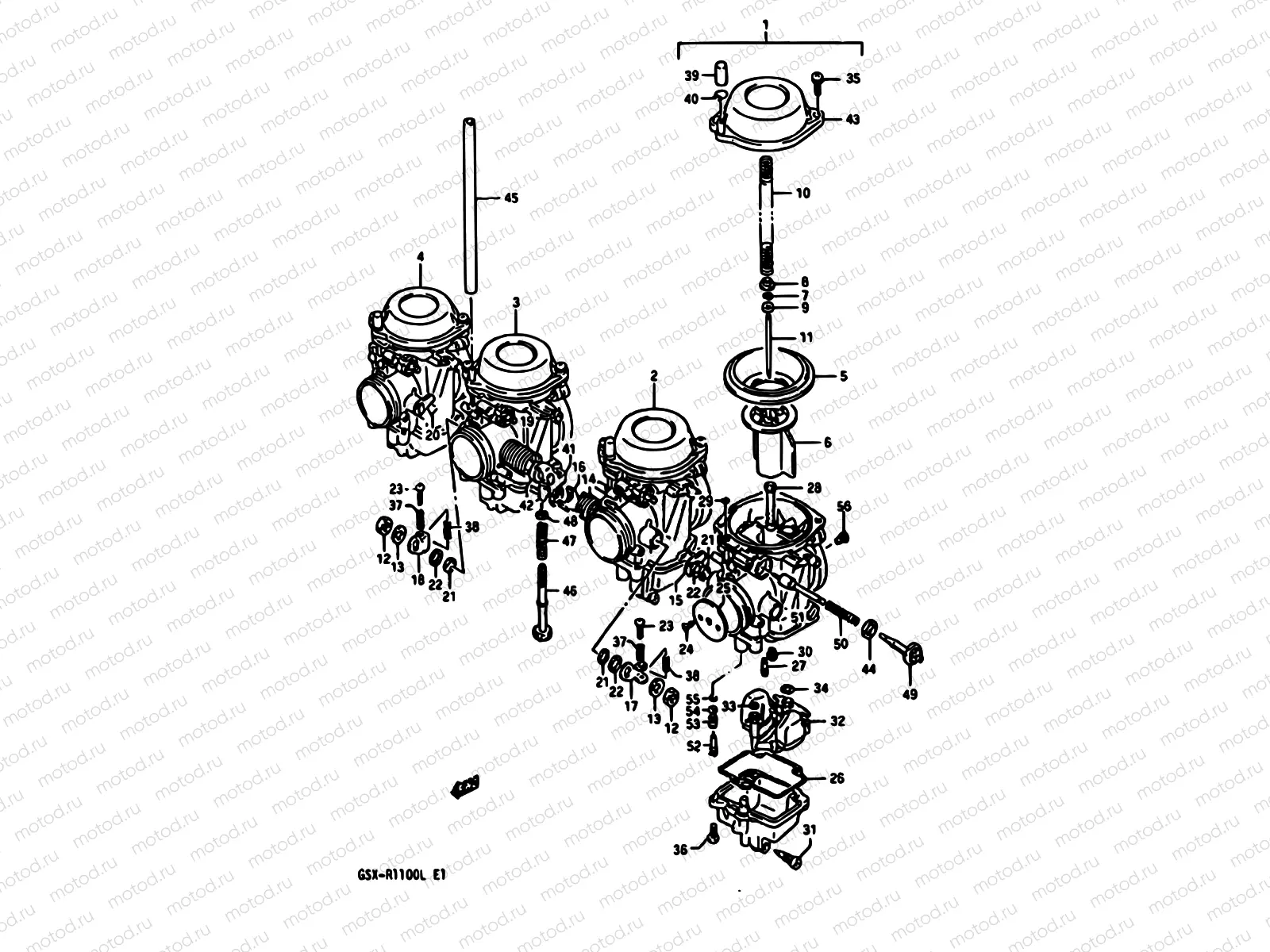

12 - CARBURETOR

12 - CARBURETOR
Например: 13201-40C00
1
13201-40C00
arburetor assy,lh
1
13201-40C40
arburetor assy,lh
1
13201-40C90
arburetor assy,lh
1
13201-40C30
arburetor assy,lh
1
13201-40C60
arburetor assy,lh
1
13201-40C50
arburetor assy,lh
1
13201-40C80
arburetor assy,lh
2
13202-40C00
arburetor assy,ml
2
13202-40C40
arburetor assy,ml
2
13202-40C90
arburetor assy,ml
2
13202-40C30
arburetor assy,ml
2
13202-40C60
arburetor assy,ml
2
13202-40C50
arburetor assy,ml
2
13202-40C80
arburetor assy,ml
3
13203-40C00
arburetor assy,mr
3
13203-40C60
arburetor assy,mr
3
13203-40C90
arburetor assy,mr
3
13203-40C30
arburetor assy,mr
3
13203-40C50
arburetor assy,mr
3
13203-40C80
arburetor assy,mr
4
13204-40C00
arburetor assy,rh
4
13204-40C60
arburetor assy,rh
4
13204-40C90
arburetor assy,rh
4
13204-40C30
arburetor assy,rh
4
13204-40C50
arburetor assy,rh
4
13204-40C80
arburetor assy,rh
5
13507-17C02
Diaphragm
3 460 ₽/шт
6
13501-17C00
VALVE,PISTON
8 668 ₽/шт
7
13394-40D20
E RING
282 ₽/шт
8
13382-42A00
RING
187 ₽/шт
9
13387-47010
RING
323 ₽/шт
10
13417-42A00
Пружина
595 ₽/шт
11
13383-40C00
NEEDLE,JET
1 091 ₽/шт
11
13383-40C40
Needle,jet
12
08310-0008B
Гайка
85 ₽/шт
13
08321-0108B
Пластина замка
81 ₽/шт
14
13573-17C00
.spring
15
13550-17C00
.shaft assy
16
13550-17C10
.shaft assy
17
13553-17C00
.lever
18
13553-44B00
.lever
19
13573-17C10
.spring
20
13550-17C30
.shaft assy
21
13556-44B00
SEAL
170 ₽/шт
22
13557-47070
GASKET,THROTTLE SHAFT
301 ₽/шт
23
13267-44B00
Болт
238 ₽/шт
24
13604-44080
Болт
235 ₽/шт
25
13551-17C00
Valve,throttle
26
13258-44B00
Прокладка крышки поплавковой камеры
767 ₽/шт
27
09492-40014
Жиклерпроводник
731 ₽/шт
27
09492-30010
Жиклерпроводник
1 220 ₽/шт
28
09494-00634
Jet,needle
28
09494-00639
.jet,needle (0-9)
29
13509-17C00
O RING
323 ₽/шт
30
09491-24013
JET,MAIN(122.5)
594 ₽/шт
30
09491-22016
JET,MAIN(110)
1 148 ₽/шт
31
13247-02340
Заглушка дренажная
258 ₽/шт
32
13250-17C00
Float/needle as
32
13250-40C00
Float / needle
33
13374-46710
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
34
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
35
02112-7516A
Болт
102 ₽/шт
36
02112-05127
Болт
81 ₽/шт
37
13271-44B00
Пружина
238 ₽/шт
38
13268-17C10
Пружина
500 ₽/шт
39
13508-17C00
КОЛПАЧОК
1 020 ₽/шт
40
13671-05A40
ХОМУТ
170 ₽/шт
41
13550-17C20
.shaft assy
42
13574-28A00
RING
43
13502-17C00
over,diaphragm
44
13418-17C01
ap,starter
323 ₽/шт
45
09352-50006-600
Hose(5X9X600)
425 ₽/шт
46
13267-14D10
Регулятор
1 627 ₽/шт
47
13375-14D10
Пружина
238 ₽/шт
48
13427-38300
WASHER
170 ₽/шт
49
13418-17C10
HOLDER,GUIDE
954 ₽/шт
50
13417-09110
Пружина стартера
414 ₽/шт
51
13411-05320
PLUNGER ASSY
1 396 ₽/шт
52
13279-47070
Винт топливный
884 ₽/шт
53
13268-47070
Пружина
272 ₽/шт
54
13291-29900
Шайба
162 ₽/шт
55
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
56
09493-27002
JET,AIR(1.35)
1 118 ₽/шт
