Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX-R 1100 SUZUKI GSX-R1100 L SUZUKI 15 - OIL COOLER

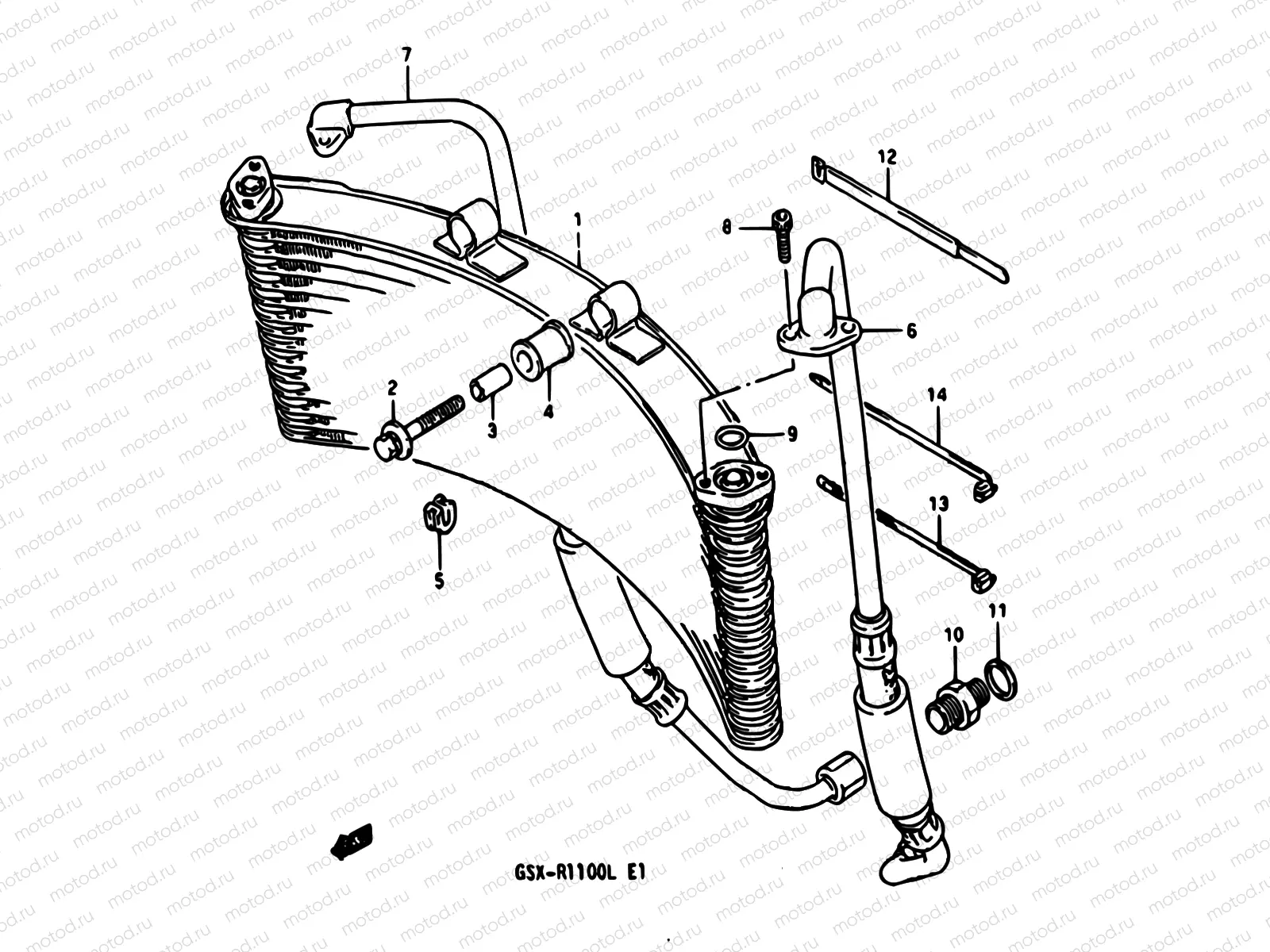

15 - OIL COOLER

15 - OIL COOLER

Например: 16600-40C03

1

16600-40C03

Refroidisseur d’huile

2

09118-08131

BOLT(8X40)

2 030 ₽/шт

3

09180-08304

Кольцо/шайба

4 380 ₽/шт

4

16629-27A01

CUSHION,OIL COOLER NO.1

301 ₽/шт

5

16628-27A00

CUSHION,OIL COOLER NO.2

172 ₽/шт

6

16460-40C10

Hose,oilclr,l

7

16470-40C10

Hose,oil clr,r

8

07130-06167

Болт

1 840 ₽/шт

9

09280-12008

O RING(D:2.4,ID:12.3)

238 ₽/шт

10

09360-20002

Болт соединяющий

10 320 ₽/шт

11

09168-16002

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

170 ₽/шт

12

09407-25302

Clamp(l:250)

13

09407-22404

CLAMP

248 ₽/шт

14

09407-25401

Хомут

221 ₽/шт
