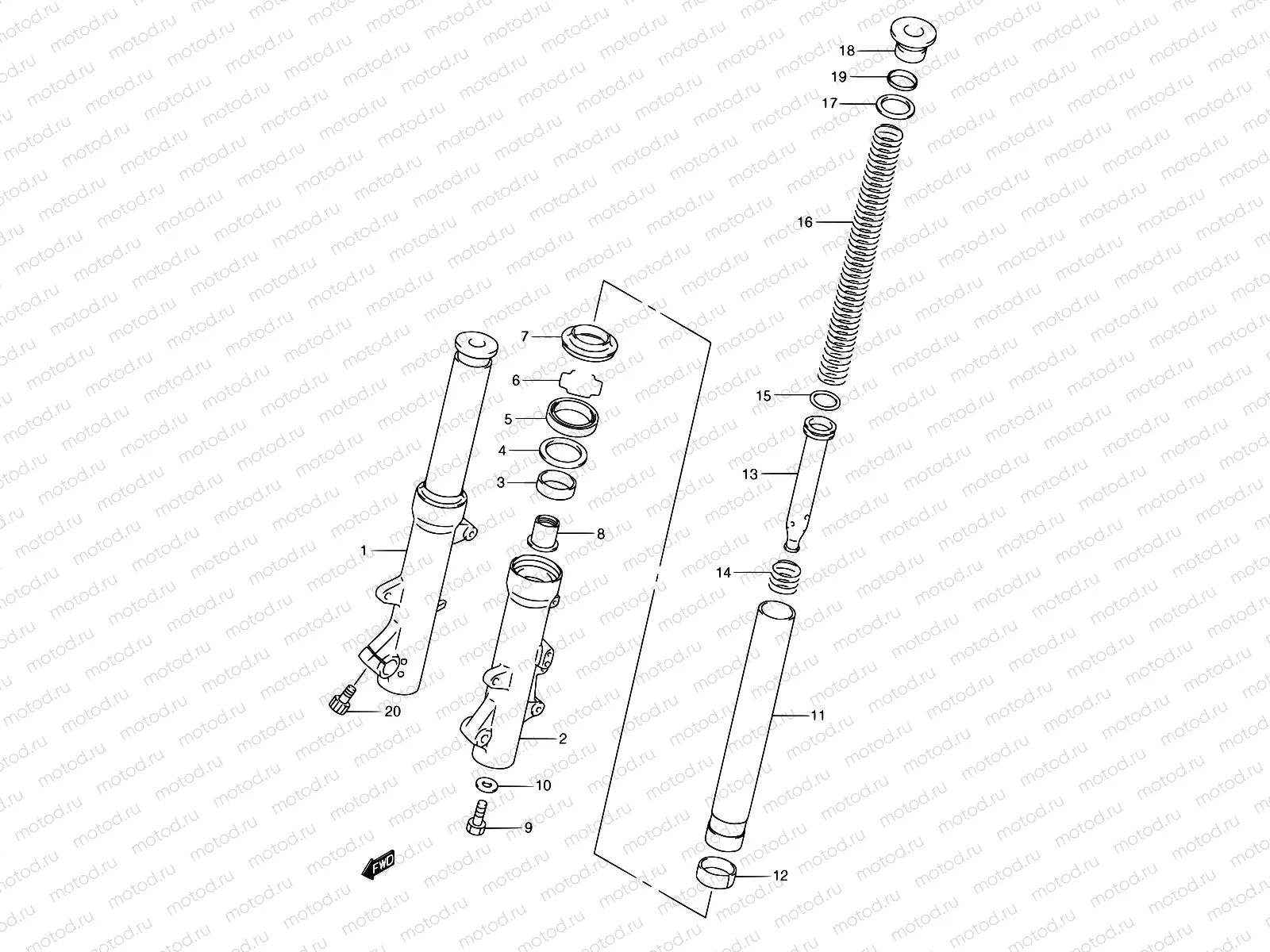

52A - FRONT FORK DAMPER (MODEL Y)

52A - FRONT FORK DAMPER (MODEL Y)

Например: 51103-14F51

0

51103-14F51

RH FR FORK DAMPER

0

51104-14F51

LH FR FORK DAMPER

1

51130-14F00

TUBE,OUTER,R

31 280 ₽/шт

2

51140-14F00

ork tube (L.H.)

3

51167-26E10

Металическая вставка

765 ₽/шт

4

51158-05A00

Шайба

299 ₽/шт

5

51153-14F00

Сальник

1 732 ₽/шт

6

51156-49440

RING,OIL SEAL STOPPER

204 ₽/шт

7

51173-14F00

Уплотнение

921 ₽/шт

8

51195-33D10

PIECE,OIL LOCK

1 197 ₽/шт

9

51147-16510

BOLT,FORK CYLINDER(10X25)

238 ₽/шт

10

51148-41310

GASKET

170 ₽/шт

11

51110-14F51

TUBE,INNER

28 152 ₽/шт

12

51121-33D10

Направляющая втулка

799 ₽/шт

13

51146-14F51

Цилиндр

4 497 ₽/шт

14

51177-06C00

Пружина

719 ₽/шт

15

51196-33D10

Кольцо поршневое

571 ₽/шт

16

51171-14F50

Пружина

4 536 ₽/шт

17

51356-27C00

Шайба

352 ₽/шт

18

51351-14F20

Крышка

3 060 ₽/шт

19

09280-32001

O RING(D:3.5,ID:31.7)

275 ₽/шт

20

07130-08257

Болт

2 070 ₽/шт
