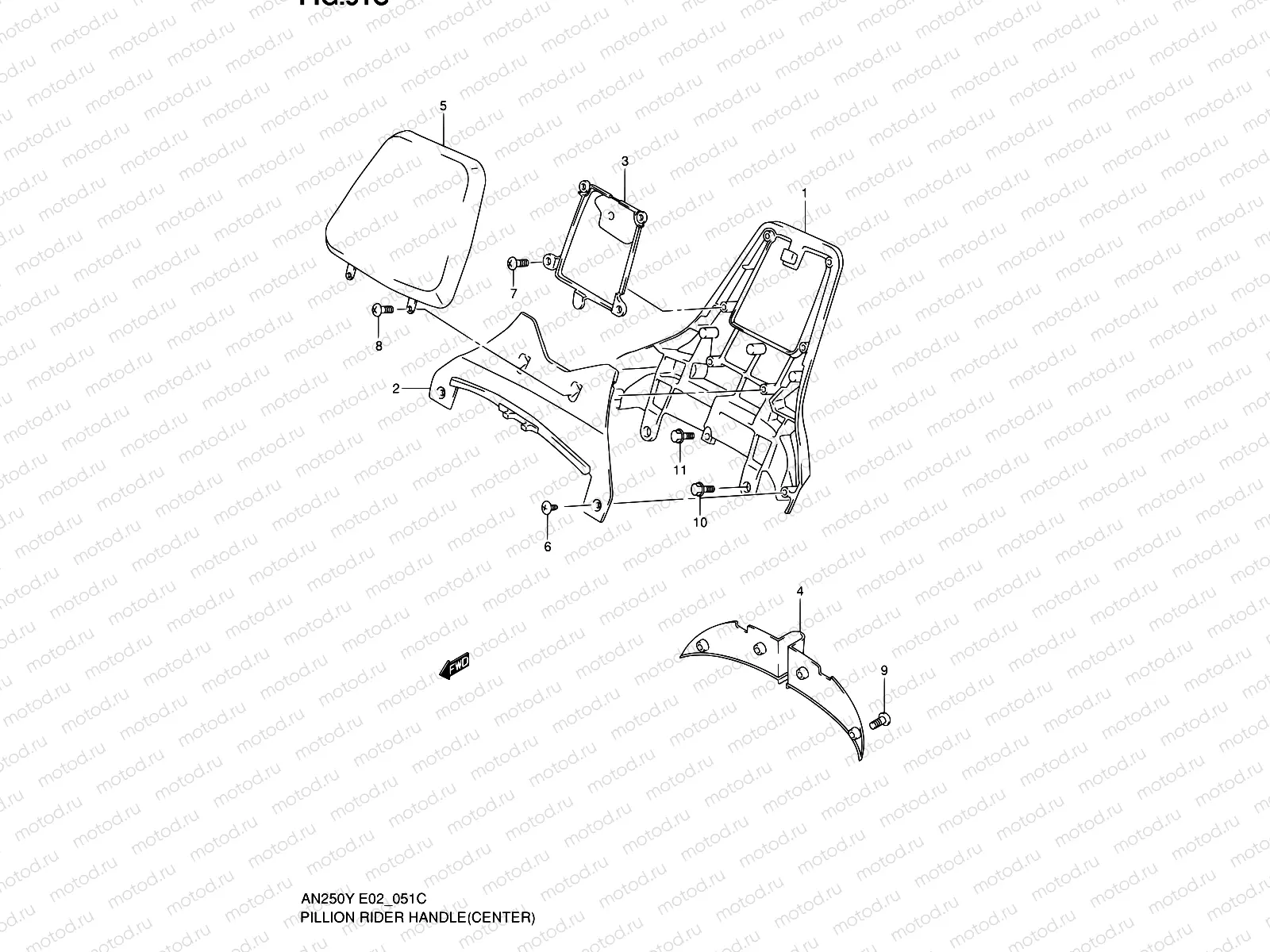

51C - PILLION RIDER HANDLE (CENTER)(MODEL W/X/Y)

51C - PILLION RIDER HANDLE (CENTER)(MODEL W/X/Y)

Например: 46211-14F51-Y7L

1

46211-14F51-Y7L

Handle,rider,ct

1

46211-14F51-YC7

Handle,rider,ct

1

46211-14F51-YD8

Handle,rider,ct

1

46211-14F51-YE1

Handle,rider,ct

1

46211-14F51-1LF

CENTER RIDER HANDLE

2

46215-14F52-Y7L

Cover,hndl.,fr.

2

46215-14F52-YC7

HANDLE FR COVER

2

46215-14F52

Cov,pln rider h

2

46215-14F52

Cov,pln rider h

2

46215-14F52-1LF

Középső kapaszkodó, első burkolat - kék

3

46216-14F51-Y0J

Coverhandle

4

46217-14F50-Y0J

COV,PILLION RIDER HNDL LWR

1 752 ₽/шт

5

46220-14F51-U97

BACK REST ASSY,PILLION RIDER(B

6

09139-06083

БОЛТ

194 ₽/шт

7

02142-0512A

Болт

85 ₽/шт

8

02142-06167

Винт крестовый 6x16

81 ₽/шт

9

03541-0410A

Болт

85 ₽/шт

10

01550-0825A

Болт

119 ₽/шт

11

01550-0830B

Болт

113 ₽/шт
