Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI AN 250 Burgman SUZUKI AN250R Y Burgman SUZUKI (VIN: JS1AN131) 4 - CRANKCASE

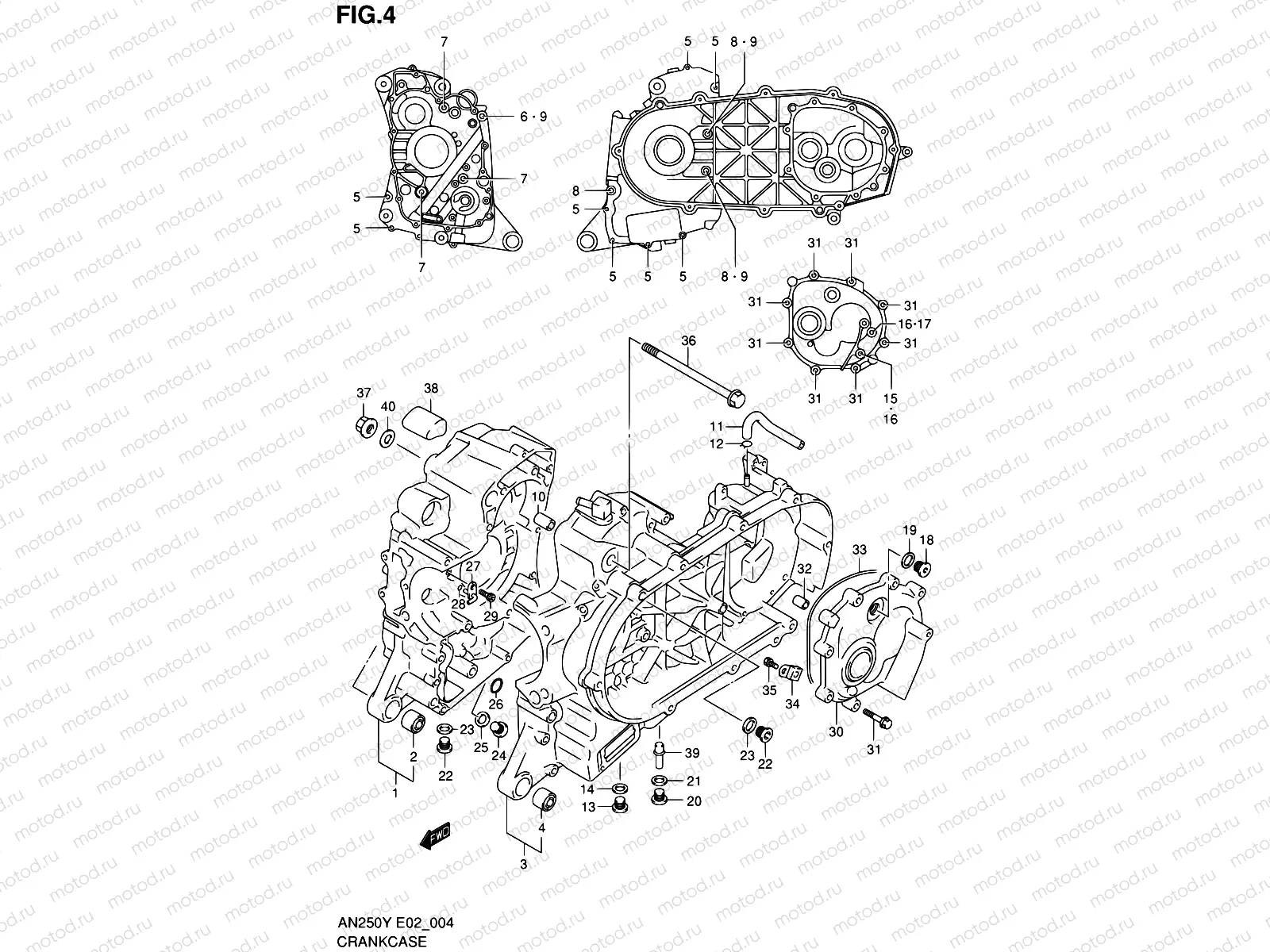

4 - CRANKCASE

4 - CRANKCASE

Например: 11310-14810

1

11310-14810

Crankcase set,r

2

09319-10043

Втулка

8 450 ₽/шт

3

11320-14814

CRANKCASE SET,LH

4

09319-10043

Втулка

8 450 ₽/шт

5

01547-0660B

Болт

1 920 ₽/шт

6

07120-08903

Vis

7

07120-0860B

Болт

2 620 ₽/шт

8

07120-0870A

Vis

9

09168-08016

Прокладка

129 ₽/шт

10

11319-33E50

PIN,CRANKCASE

289 ₽/шт

11

11329-14F00

HOSE,TRANSMISSION BREATHER

946 ₽/шт

12

09401-11403

CLIP

146 ₽/шт

13

09247-14026

Пробка редуктора сливная

289 ₽/шт

14

09168-14004

Прокладка

129 ₽/шт

15

01550-0812B

Болт

97 ₽/шт

16

09168-08016

Прокладка

129 ₽/шт

17

01550-0812B

Болт

97 ₽/шт

18

09248-16012

ШЛАНГ

289 ₽/шт

19

09168-16002

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

170 ₽/шт

20

09248-14011

PLUG

226 ₽/шт

21

09168-14004

Прокладка

129 ₽/шт

22

09248-12004

ШЛАНГ

3 950 ₽/шт

23

09168-12002

Прокладка

81 ₽/шт

24

09248-16012

ШЛАНГ

289 ₽/шт

25

09168-16002

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

170 ₽/шт

26

09280-12009

Кольцо уплотнительное

221 ₽/шт

27

11390-14F00

Жиклер

1 095 ₽/шт

28

09280-04004

O RING(D:1.2,ID:4.0)

194 ₽/шт

29

09106-06075

БОЛТ

1 450 ₽/шт

30

11431-14F10

Cover, gear box

31

01550-0835A

Болт

119 ₽/шт

32

04211-11169

PIN

113 ₽/шт

34

11393-20E00

MAGNETO,GEAR BOX

997 ₽/шт

35

01570-0612A

Болт

85 ₽/шт

36

09103-12053

BOLT(12X295)

15 800 ₽/шт

37

08319-3112A

Гайка

211 ₽/шт

38

11186-14F01

Seperator,oil

39

11323-15F00

JET,BREATHER

2 053 ₽/шт
