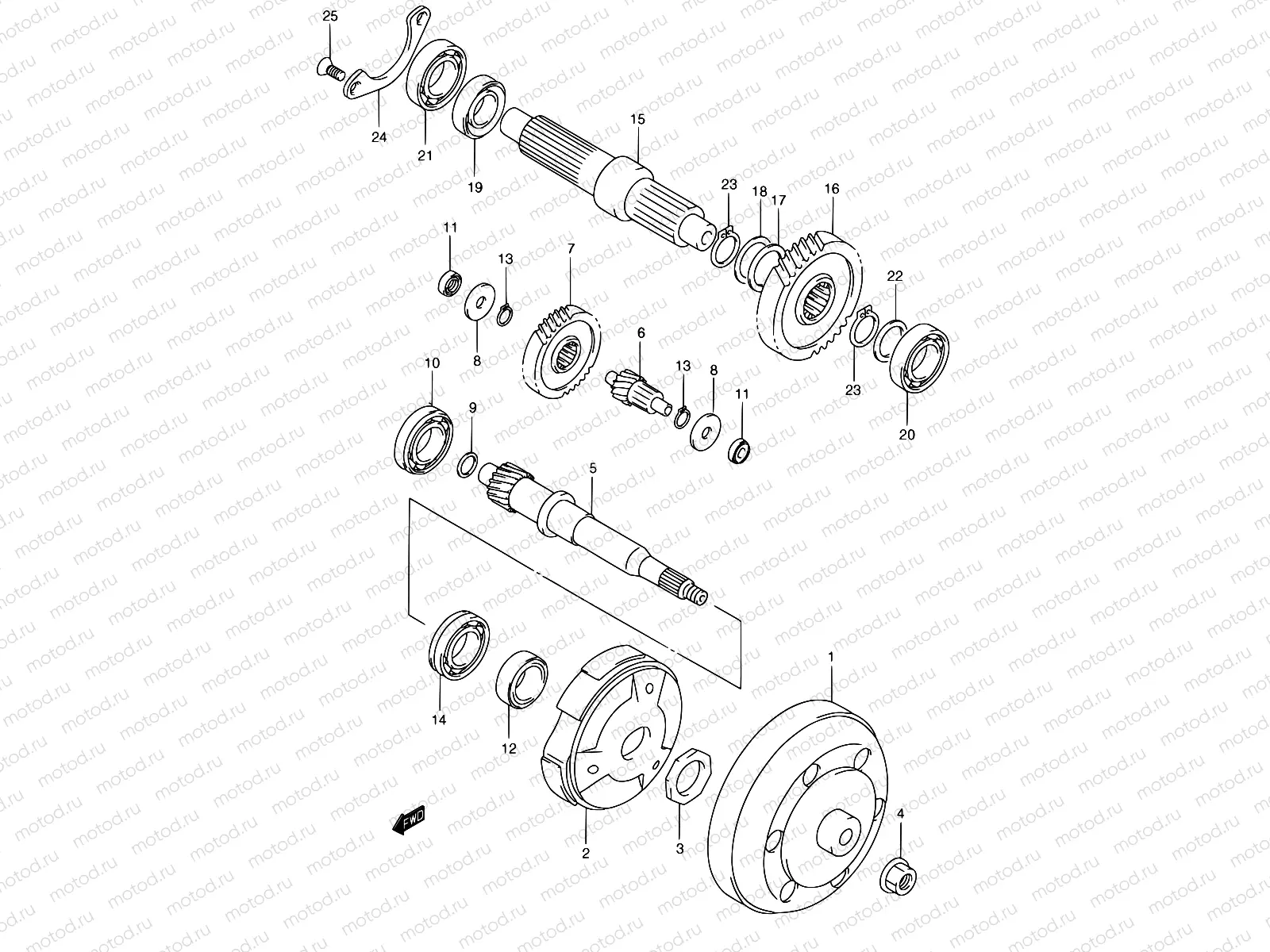

Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI AN 250 Burgman SUZUKI AN250R Y Burgman SUZUKI (VIN: JS1AN131) 21 - TRANSMISSION (2)(MODEL W/X/Y)

21 - TRANSMISSION (2)(MODEL W/X/Y)

21 - TRANSMISSION (2)(MODEL W/X/Y)

Например: 21220-14F01

1

21220-14F01

HOUSING,CLUTCH

10 166 ₽/шт

2

21501-14F03

Clutch assy,sho

3

21518-14F00

NUT,SHOE CLUTCH

536 ₽/шт

4

08316-1012A

Гайка

102 ₽/шт

5

24131-14F10

Вал ведущий

10 166 ₽/шт

6

24150-14F10

SHAFT,IDLE

10 674 ₽/шт

7

24381-14F00

GEAR,IDLER(NT:44)

5 044 ₽/шт

8

09181-15004

SHIM(15X45X2)

3 950 ₽/шт

9

09181-15156

ПРОКЛАДКА

194 ₽/шт

10

09262-15027

BEARING TRANSMISSION

1 935 ₽/шт

11

09263-15043

BEARING(15X26X15)

3 108 ₽/шт

12

09283-25097

SEAL,OIL(25X37X6)

748 ₽/шт

13

09380-27001

CIRCLIP

1 170 ₽/шт

14

09262-25003

Подшипник B1 25X52X15

1 360 ₽/шт

15

24140-14F10

Shaft,rear axle

16

24371-14F10

GEAR,FINAL DRIVEN,NT:44

16

09181-30167

Шайба

194 ₽/шт

16

09164-30004

WASHER

2 660 ₽/шт

17

09164-30004

WASHER

2 660 ₽/шт

18

09181-30167

Шайба

194 ₽/шт

19

09283-38019

SEAL,OIL(38X52X7)

889 ₽/шт

20

09262-20073

ПОДШИПНИК КАЧЕНИЯ

1 308 ₽/шт

21

08133-63067

BEARING

4 223 ₽/шт

22

08211-20352

WASHER

187 ₽/шт

23

08331-31309

CIRCLIP

170 ₽/шт

24

24751-14F00

RETAINER,AXLE SHAFT BEARING

489 ₽/шт

25

02122-0616B

Болт

85 ₽/шт
