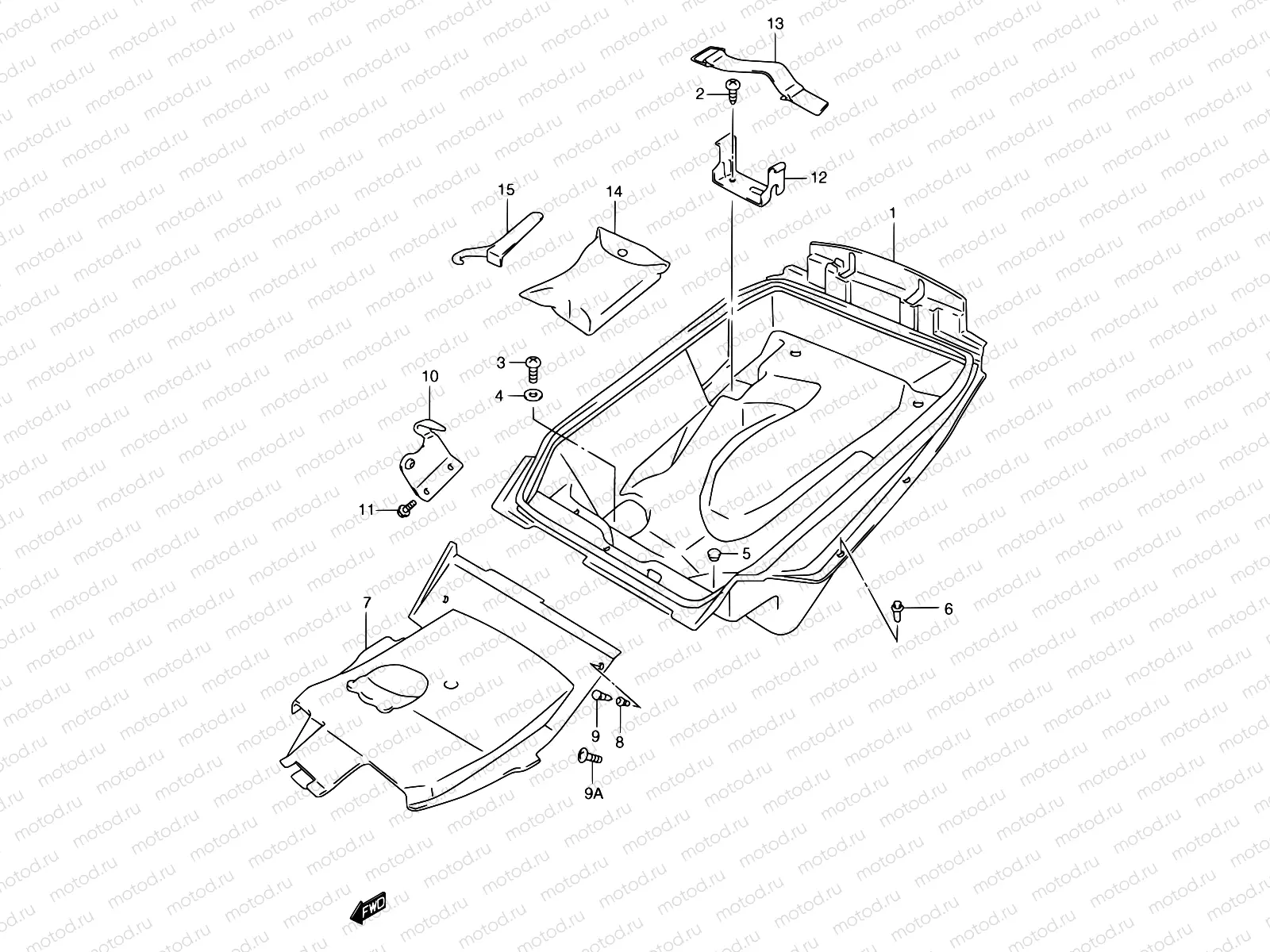

43 - HELMET BOX (MODEL W/X/Y)

43 - HELMET BOX (MODEL W/X/Y)

Например: 92211-14F01

1

92211-14F01

Box,helmet

2

09139-06108

Болт

1 840 ₽/шт

3

09139-06237

Screw(6X16)

1 880 ₽/шт

4

09169-06010

WASHER

211 ₽/шт

5

09250-12016

Cap(Od:20)

162 ₽/шт

6

09409-08308-5ES

CLIP(GRAY)

178 ₽/шт

7

92212-14F10

Cover,helmet bo

9

02142-0616A

Болт

81 ₽/шт

10

95721-14F02

Holder,helmet,r

11

01550-0616B

БОЛТ

81 ₽/шт

12

41551-14F0V

Szerszámkészlet tartó konzol

13

47435-02F02

Band,tool

14

09800-21038

Trousse d'outils

15

09822-00005

CLAMP

845 ₽/шт
