Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 350 SUZUKI DR350S M (E02) SUZUKI (VIN: SK42B) 42A - FRONT MASTER CYLINDER (DR350SHN/SHP/SHR)

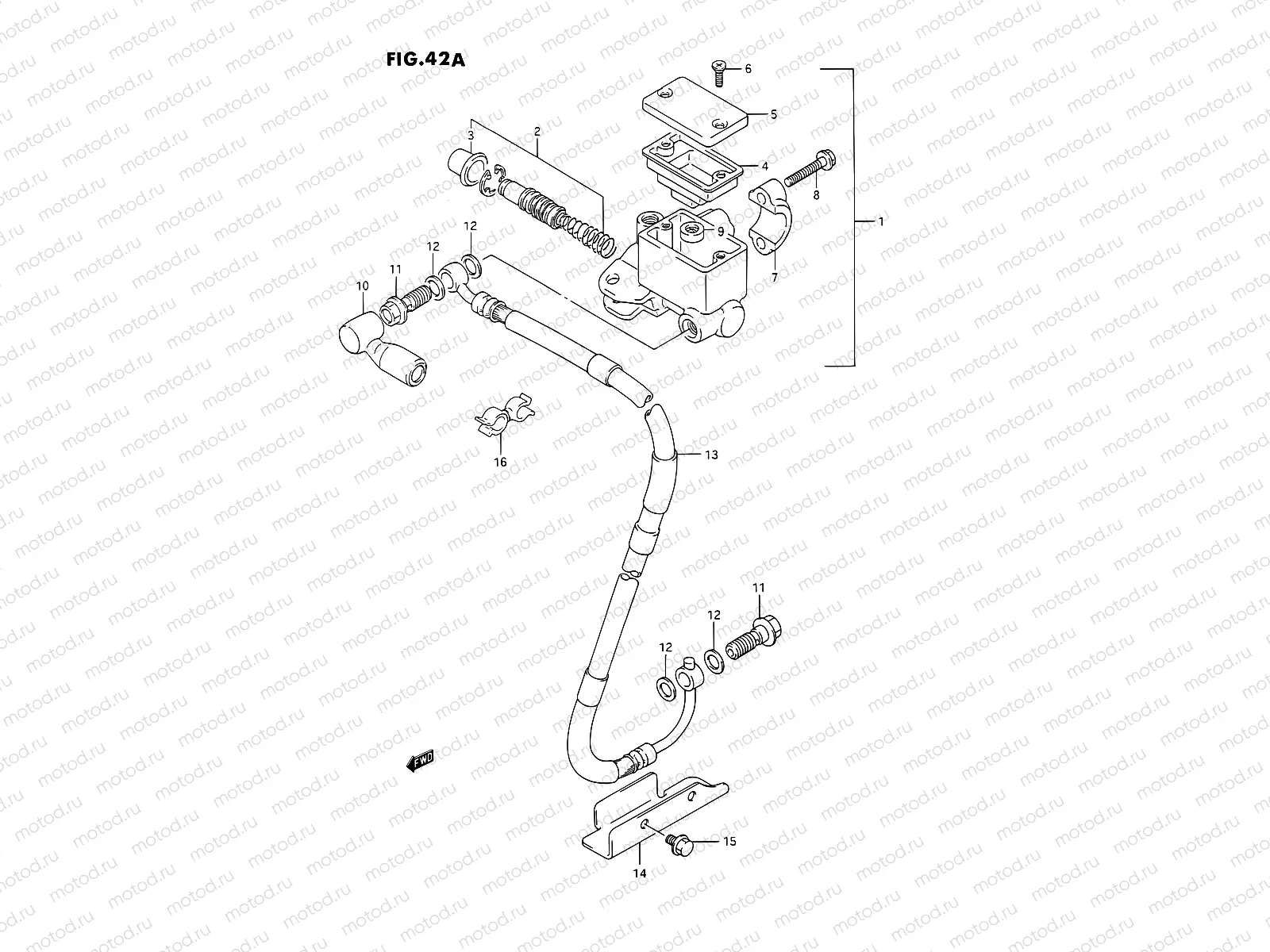

42A - FRONT MASTER CYLINDER (DR350SHN/SHP/SHR)

42A - FRONT MASTER CYLINDER (DR350SHN/SHP/SHR)

Например: 59600-03D01

1

59600-03D01

CYLINDER ASSY,FR MASTER

18 533 ₽/шт

2

69600-38810

PISTON/CUP SET

3 472 ₽/шт

3

59666-44300

Пыльник

194 ₽/шт

4

59667-44B00

DIAPHRAGM

799 ₽/шт

5

59669-03D00

CAP

1 642 ₽/шт

6

02122-04127

Болт

85 ₽/шт

7

59671-03D00

HOLDER

1 337 ₽/шт

8

59675-27C00

Болт

215 ₽/шт

9

59748-14500

Сепаратор

614 ₽/шт

10

59711-04701

Boot,master Cylinder

2 635 ₽/шт

11

09360-10061

Болт соединяющий

3 910 ₽/шт

12

09161-10009

Шайба

113 ₽/шт

13

59480-14D10

Hose, front brake

14

59281-08D00

Protector, front brake hose

15

01550-0610B

Болт

85 ₽/шт

16

09408-00145

CLIP

2 820 ₽/шт
