Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 350 SUZUKI DR350S M (E02) SUZUKI (VIN: SK42B) 40 - LEFT HANDLE SWITCH

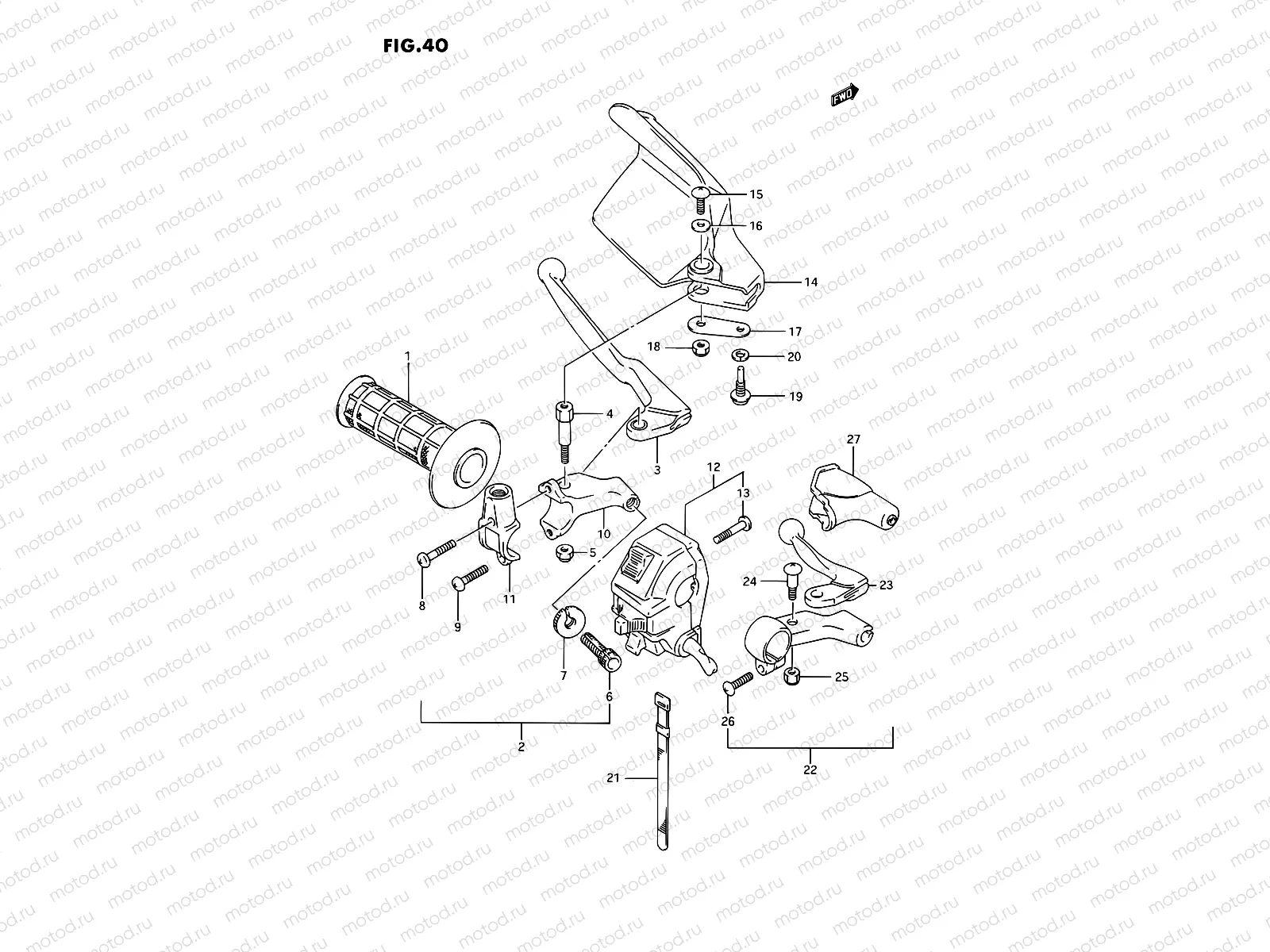

40 - LEFT HANDLE SWITCH

40 - LEFT HANDLE SWITCH

Например: 57211-27C00

1

57211-27C00

РУКОЯТКА

872 ₽/шт

2

57500-15D00

Рычаг сцепления

5 982 ₽/шт

3

57620-14300

Рукоятка муфты

8 755 ₽/шт

4

57631-05D00

Болт рукоятки

1 428 ₽/шт

5

08319-2106A

Гайка

114 ₽/шт

6

57441-11010

Кабель регулирующий

323 ₽/шт

7

57442-05D00

Гайка блокирующая

289 ₽/шт

8

09125-05105-XC0

SCREW(5X22)

2 740 ₽/шт

9

02112-05167

Болт

81 ₽/шт

10

57511-14300

HOLDER,CLUTCH LEVER

6 068 ₽/шт

11

57512-03D00

BRACKET,HOLDER

2 678 ₽/шт

12

37400-15D20

SWITCH ASSY,HANDLE,L

11 790 ₽/шт

13

02112-0530B

Болт

85 ₽/шт

14

57541-05D01-0NF

COVER,KNUCKLE,L

3 089 ₽/шт

14

57541-05D01-25Y

Cover,knuckle,l

15

02142-0510A

Болт

82 ₽/шт

15

02142-0510A

Болт

82 ₽/шт

16

09160-05043

Шайба

102 ₽/шт

16

09160-05024

Шайба

900 ₽/шт

17

57542-05D00

PLATE,KNUCKLE COVER,L LWR

680 ₽/шт

18

08319-2106A

Гайка

114 ₽/шт

19

09139-06086

Болт

2 030 ₽/шт

20

08321-01067

Шайба, стопорная

81 ₽/шт

21

09407-12402

Струбцина

211 ₽/шт

22

58700-38210

LEVER ASSY,DECOMP

15 640 ₽/шт

23

58731-38200

Рукоятка

3 441 ₽/шт

24

57431-01012

Болт

238 ₽/шт

25

08319-2105B

Гайка

1 520 ₽/шт

26

02112-0620A

Болт

85 ₽/шт

27

57342-37101

COVER,DECOMP LEVER DUST

817 ₽/шт
