Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 350 SUZUKI DR350S M (E02) SUZUKI (VIN: SK42B) 23 - TURN SIGNAL LAMP

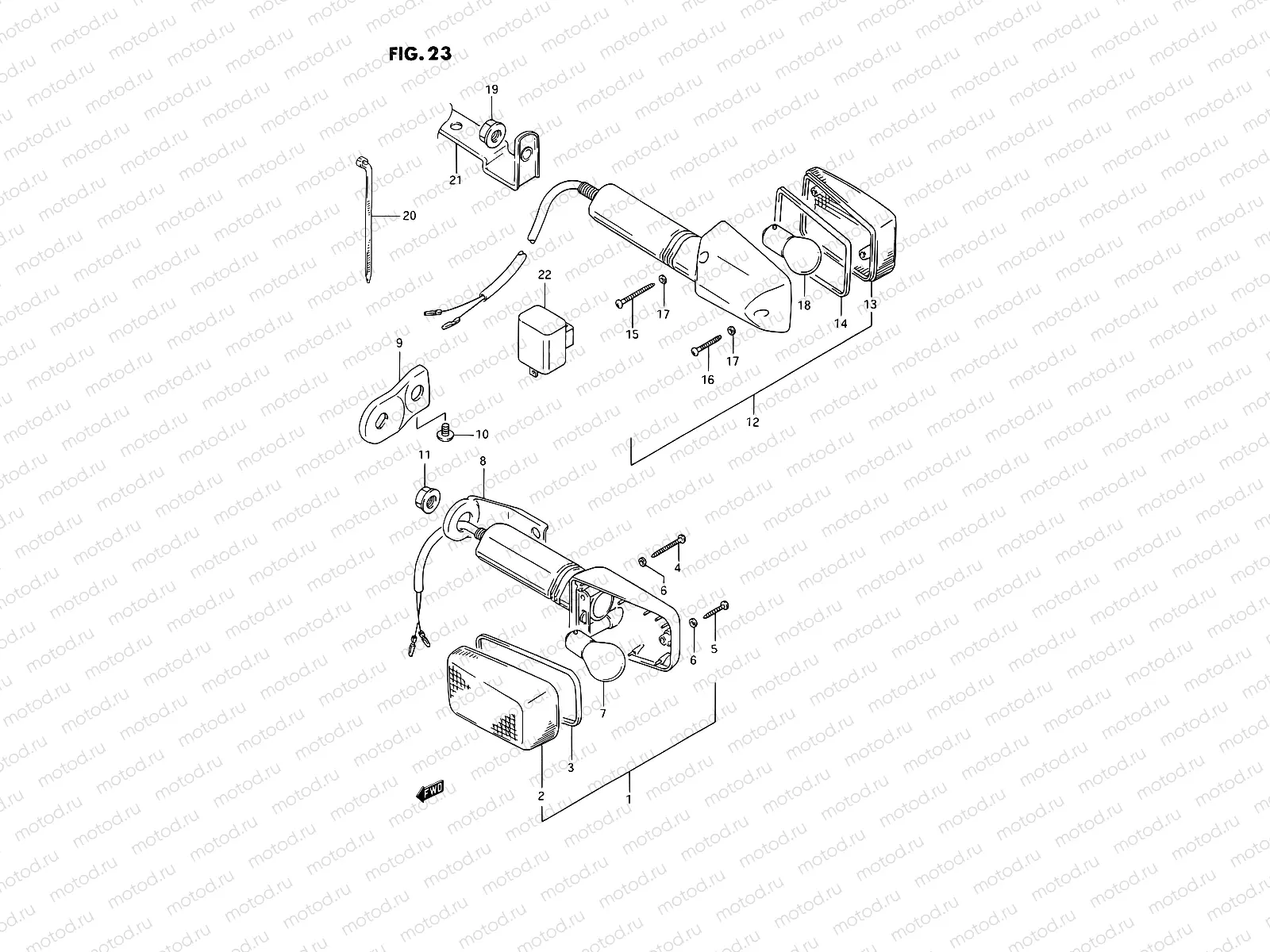

23 - TURN SIGNAL LAMP

23 - TURN SIGNAL LAMP

Например: 35601-01D10

1

35601-01D10

LAMP ASSY,FR TURN SIGNAL

7 351 ₽/шт

2

35612-17C20

Линза

816 ₽/шт

3

35613-27A00

Прокладка

274 ₽/шт

4

35623-27A00

Болт

90 ₽/шт

5

35725-40511

Болт

98 ₽/шт

6

35627-27A02

Прокладка

82 ₽/шт

7

40503-00838-120

Bulb (12V 21W BA15s)

8

35670-14D12

BRACKET,FR TURNSIGNAL,R

864 ₽/шт

8

35680-14D12

BRACKET,FR TURNSIGNAL,L

864 ₽/шт

9

35670-03D20

Bracket, front turn rh

9

35680-03D20

LH FR TURN BRACKET

10

02142-0508A

SCREW

85 ₽/шт

11

08316-1010B

Гайка

85 ₽/шт

12

35603-14D10

Lamp,rr turnsgn

12

35603-14D20

Lamp assy rear

13

35652-17C20

Линза

653 ₽/шт

14

35613-27A00

Прокладка

274 ₽/шт

15

35623-27A00

Болт

90 ₽/шт

16

35725-40511

Болт

98 ₽/шт

17

35627-27A02

Прокладка

82 ₽/шт

18

40503-00838-120

Bulb (12V 21W BA15s)

19

08316-1010B

Гайка

85 ₽/шт

20

09407-02401

Clamp

21

35620-14D00

Bracket, rear turn signal

22

38610-31X50

RELAY ASSY,TURNSIGNAL

2 805 ₽/шт

22

38610-06F01

Relay Assy,turnsignal Lamp

5 435 ₽/шт
