Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 350 SUZUKI DR350S M (E02) SUZUKI (VIN: SK42B) 13D - SECOND AIR (DR350SR E18,DR350SN/SP/SUP/SR E39)

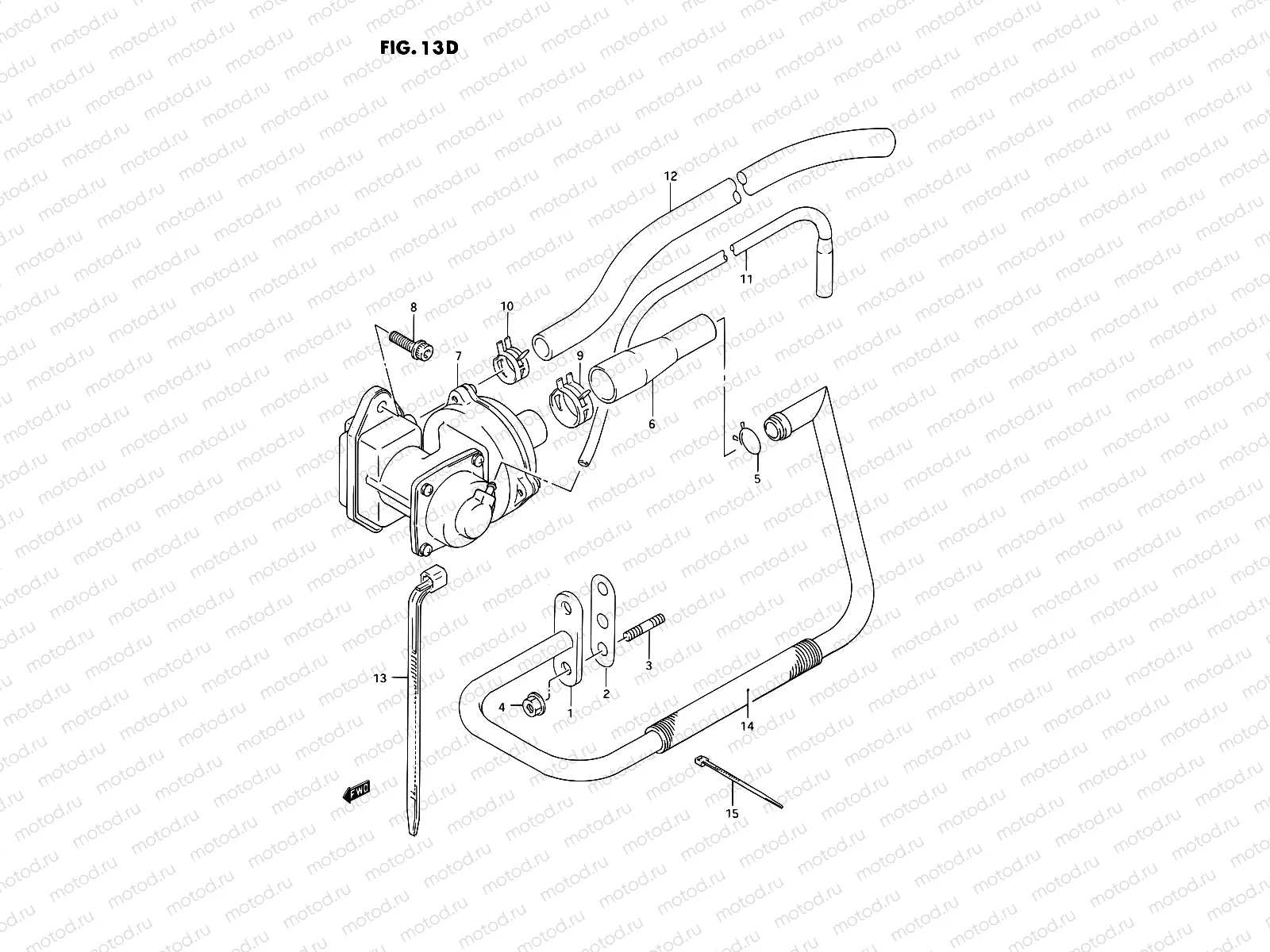

13D - SECOND AIR (DR350SR E18,DR350SN/SP/SUP/SR E39)

13D - SECOND AIR (DR350SR E18,DR350SN/SP/SUP/SR E39)

Например: 18420-14D21

1

18420-14D21

Pipe, 2nd air

2

18441-45C01

Прокладка

446 ₽/шт

3

01421-0616A

Болт заклепка

114 ₽/шт

5

09401-15301

CLIP

1 720 ₽/шт

6

18446-31D00

HOSE,2ND AIR

7

18450-14D00

Valve assy, 2nd air reed

9

09401-23403

CLIP

2 970 ₽/шт

10

09401-15404

ХОМУТ МАЛЫЙ

242 ₽/шт

11

09355-40805-600

Шланг

663 ₽/шт

12

09352-12164-600

Hose(12X16X600)

1 421 ₽/шт

13

09407-18402

Струбцина (L:165)

211 ₽/шт

14

13825-26F00

PROTECTOR,BREATHER TUBE

829 ₽/шт

15

09407-14407

ЗАЖИМ

221 ₽/шт
