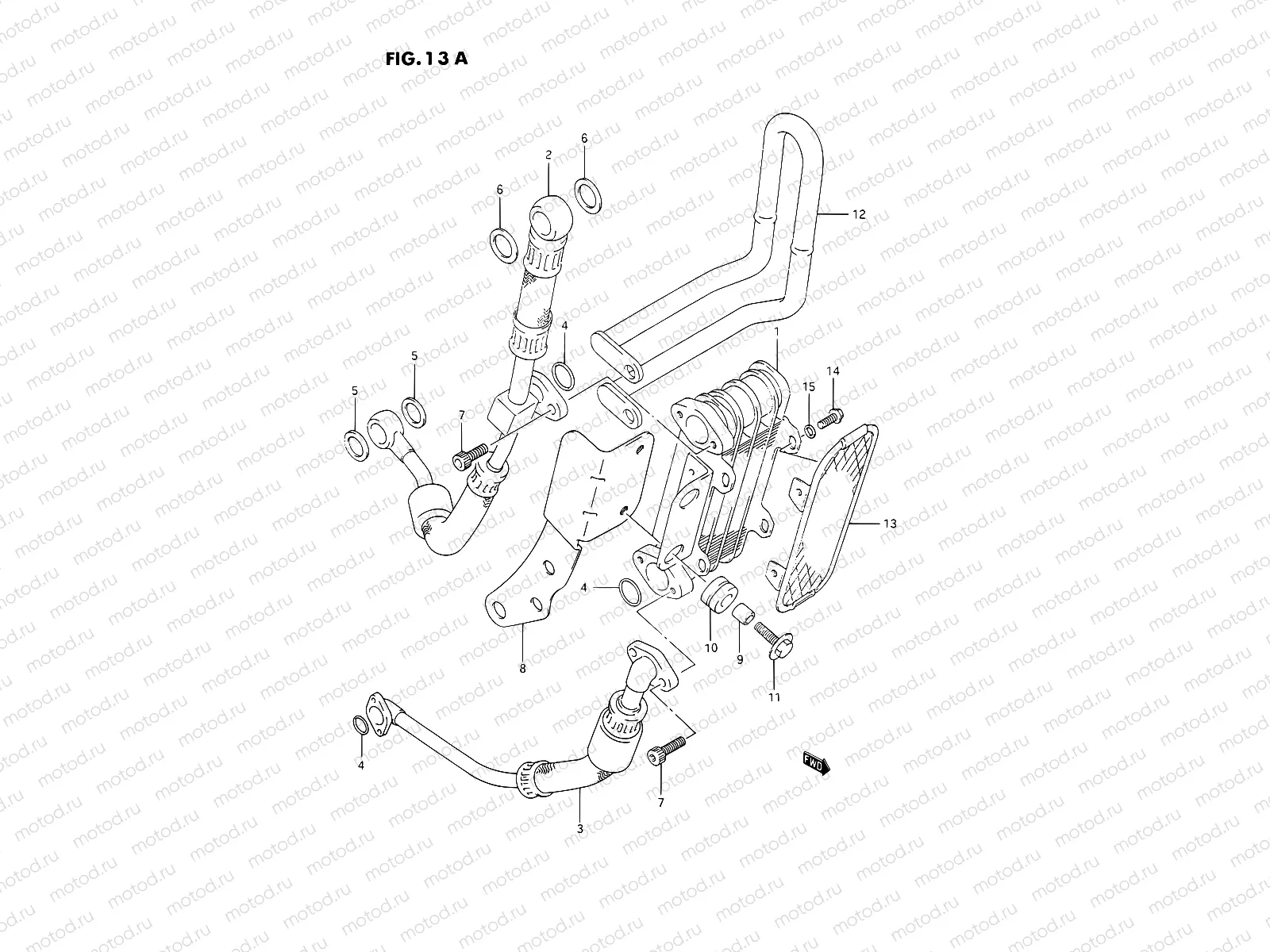

13A - OIL COOLER (OPTIONAL,EXCEPT E18)

13A - OIL COOLER (OPTIONAL,EXCEPT E18)
Например: 16000-14820
0
16000-14820
COOLER SET, OIL
1
16600-14D00
Cooler assy,oil
2
16480-14D10
OVERLOOP PIJP
2
16450-14D00
HOSE,OIL COOLER UPR
18 455 ₽/шт
3
16490-14D00
HOSE,OIL COOLER LWR
16 774 ₽/шт
4
09280-12008
O RING(D:2.4,ID:12.3)
238 ₽/шт
5
09168-12010
GASKET(12X16.5X1.5)
162 ₽/шт
6
09168-16003
Прокладка
119 ₽/шт
7
07130-06167
Болт
1 840 ₽/шт
8
16620-14D10
Bracket
8
16620-14D00
BRACKET,OIL COOLER
8 641 ₽/шт
9
09180-06310
SPACER
178 ₽/шт
10
09320-10015
САЙЛЕНТБЛОК
226 ₽/шт
11
09116-06115
Болт копрусный
153 ₽/шт
12
16640-14D00
Guard, oil cooler
13
16650-14D00
Bumper, oil cooler
14
01547-0510B
Болт
82 ₽/шт
15
08321-0105A
Пластина замка
81 ₽/шт
