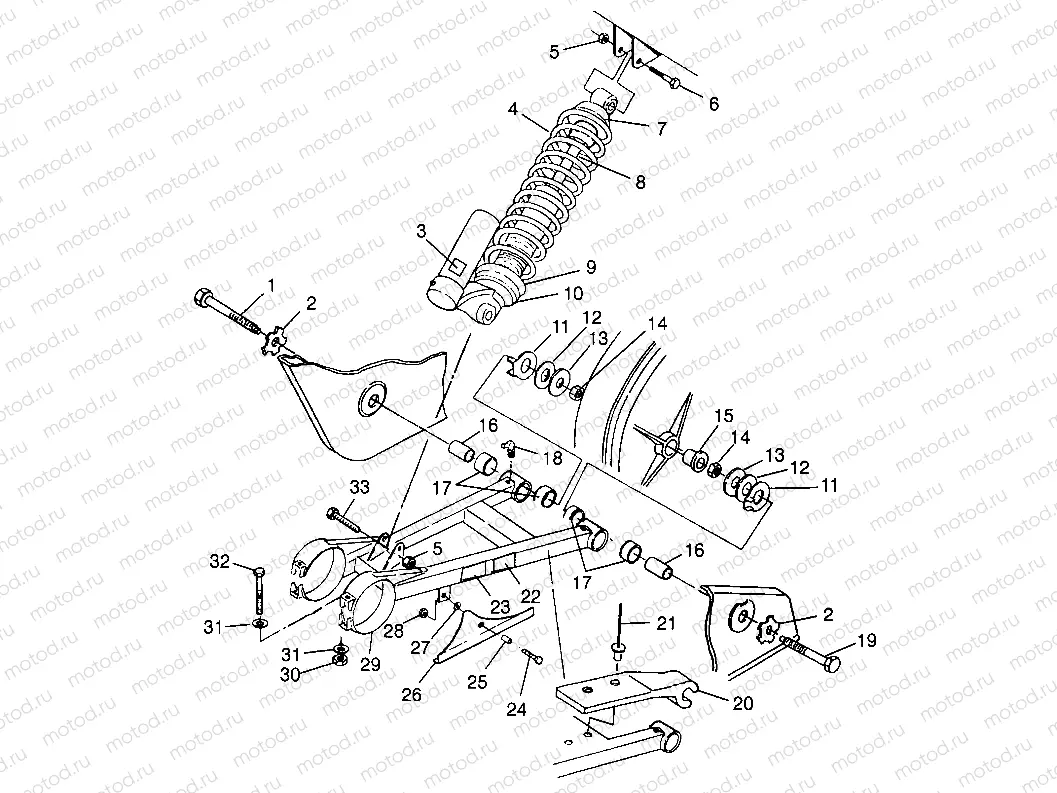

SWING ARM/SHOCK MOUNTING Scrambler 500 W97BC50A (4943074307C001) | SWING ARM/SHOCK MOUNTING Scrambler 500 W97BC50A (4943074307C001)

SWING ARM/SHOCK MOUNTING Scrambler 500 W97BC50A (4943074307C001) | SWING ARM/SHOCK MOUNTING Scrambler 500 W97BC50A (4943074307C001)

Например: 7512701

1

7512701

BOLT SHOULDER

2

5220958

PLATE BOLT LOCK

3

7075343

DECAL,WARN.(FOX ATV SHOCK)

4

7041389-067

SPRING COMP BLK.

5

7542439

Nut (SELF-LOCKING)

6

7515415

Vis

7

5251753

RETAINER-SPRING STEEL

9

1500063

RETAINER SPRING BODY THREADED

10

5431734

RING SPRING PRELOAD ADJ.

11

5240952

BUSHING

12

5433414

BUSHING-THRUST

13

7555911

Rondelle

14

7542602

NUT LOCK

15

LR--

CALIPER, BRAKE, RH

16

5020793

BUSHING SWING ARM

17

5433417

BUSHING-SWINGARM

18

7080438

FITTING LUBE.

19

7512702

BOLT SHOULDER

20

5431310

GUIDE CHAIN

21

7621433

RIVET

22

7074214

DECAL,LUBRICATION

23

7074752

DECAL,CHAIN FREE PLAY

24

7515304

SCREW-FLANGED

25

5332828

BUSHING

26

5430776

GUARD CHAIN

27

7558402

WASHER FLAT

28

7542321

NUT FLANGE

29

1580088

ARM ASM,SWING

30

7542503

NUT FLEXLOCK

31

7555883

Rondelle

32

7512576

Vis

33

7515438
