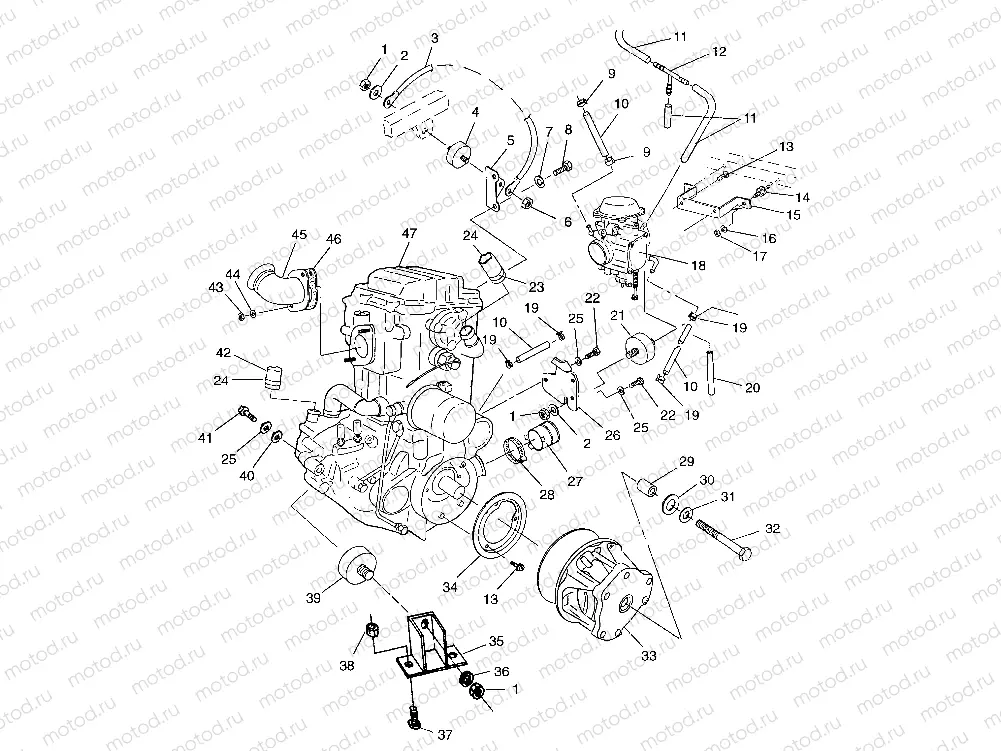

ENGINE MOUNTING Scrambler 500 W97BC50A (4943074307A009) | ENGINE MOUNTING Scrambler 500 W97BC50A (4943074307A009)

ENGINE MOUNTING Scrambler 500 W97BC50A (4943074307A009) | ENGINE MOUNTING Scrambler 500 W97BC50A (4943074307A009)

Например: 7542411

1

7542411

NUT FLEXLOC

2

7555801

Rondelle

3

4010132

CABLE GND-ENGINE

4

3024012

ISOLATOR-3/8-24M/M 60DURO

5

5240328-067

MOUNT,ENG.TOP, BLK.

6

7542403

NUT LOCK

7

7552901

Rondelle (Lock)

8

7512315

Vis

9

7080307

CLAMP HOSE

10

8450040-600

LINE FUEL 1/4 ID(600 CM.)

10

5811373

FOIL-TAPE,AIR BOX

11

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

12

7052075

FITTING TEE

14

3110050

MOUNT CARBURETOR

15

5240609-067

BRKT CARB.MT.

16

7552605

Rondelle

17

7542105

NUT HEX

19

7080003

CLAMP HOSE

20

8360009-600

LINE FUEL 1/8 ID 600 CM.

21

3022074

ISOLATOR-3/8-24M/M 45DURO

22

7512490

Vis

24

7080696

CLAMP HOSE 1.25 WORM DRIVE

25

7552603

Rondelle (Lock)

26

5241921-067

MOUNT,R.ENG,BLK

27

5410421

BOOT CLUTCH INTAKE

28

7080511

CLAMP NARROW BAND

29

5430261

BUSHING

30

5210748

Rondelle

31

7575202

Rondelle (Lock)

32

7512566

Vis

35

1040534-067

MOUNT,ENG,BLK

36

7555806

WASHER FLAT

37

7515398

Vis

38

7542324

Nut (SELF-LOCKING)

39

3110067

MOUNT MOTOR

40

7555832

Rondelle

41

7515438

Vis

43

LR--

CALIPER, BRAKE, RH

45

1260832-489

WELD-MANIFOLD BLK

47

9990000

Suspension, Rear
