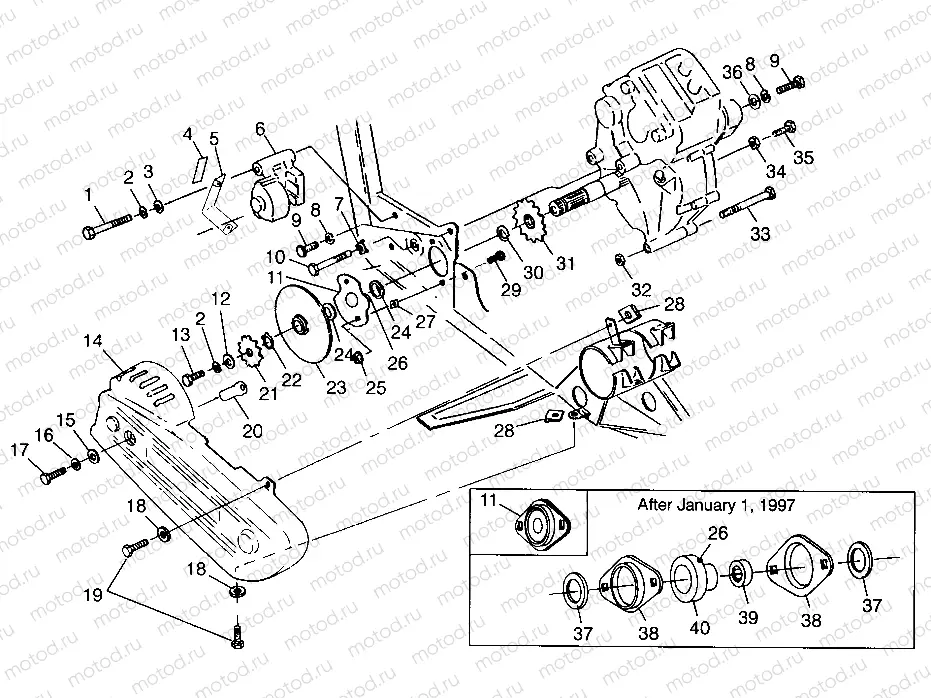

GEARCASE/BRAKE and CHAIN COVER MOUNTING Scrambler 500 W97BC50A (4943074307C004) | GEARCASE/BRAKE and CHAIN COVER MOUNTING Scrambler 500 W97BC50A (4943074307C004)

GEARCASE/BRAKE and CHAIN COVER MOUNTING Scrambler 500 W97BC50A (4943074307C004) | GEARCASE/BRAKE and CHAIN COVER MOUNTING Scrambler 500 W97BC50A (4943074307C004)

Например: 7515345

1

7515345

Vis

2

7552901

Rondelle (Lock)

3

7558402

WASHER FLAT

4

7075339

DECAL BRAKE SHIELD

5

5241018-067

SHIELD,R.CALIPER,BLK.

6

1910227

CALIPER ASM,R.BRAKE

7

LR--

CALIPER, BRAKE, RH

8

7552603

Rondelle (Lock)

9

7515522

Vis

11

2201115

KIT RELUBE BEARING

11

1590237

BRG.ASM O/P SHAFT

12

7555701

WASHER FLAT

13

7515321

Vis

14

5431717

GUARD CHAIN CTR.

15

7558402

WASHER FLAT

16

7552606

Rondelle

17

7515384

Vis

18

7558302

WASHER WROUGHT

19

7512269

Vis

20

5333254

SPACER,CHAIN GUARD

21

3221058

SPKT 11T

22

7710433

RING RETAINING

23

1910177

DISC ASM,BRAKE

24

3610026

SEAL BRAKE

25

7542449

NUT FLANGE LOCK

26

7080433

FITTING LUBRICATION THREADED(1

27

5211065

SHIM .010

27

5211517

SHIM (.030)

27

5210764

SPACER-.020

28

7670060

NUT SPEED

29

7515484

BOLT,CARRIAGE(10)

30

7710434

RING SNAP

31

3221044

SPKT 12T

32

7542403

NUT LOCK

33

7515472

Vis

34

7542404

Nut

35

7515485

Vis

36

7555806

WASHER FLAT

37

3610062

SEAL BRAKE

38

5242072

FLANGETTE,O/P SHAFT BRNG.

39

3554202

BEARING NEEDLE

40

5131643
