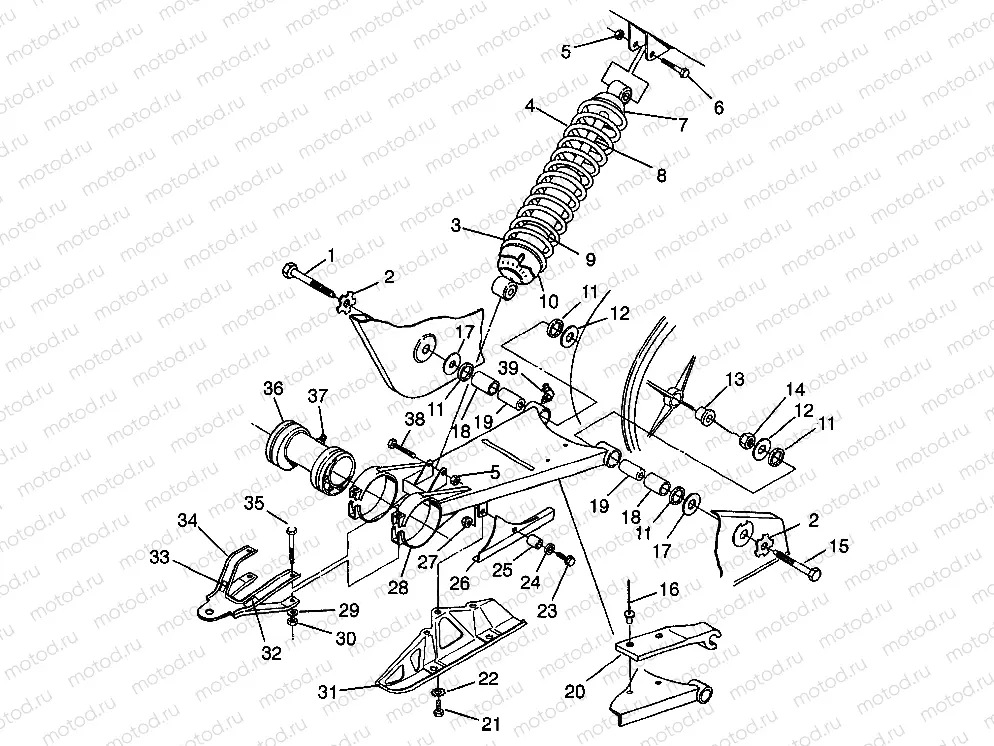

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 400L 4X4 (W948140) Polaris 1994 ATV SWING ARM/SHOCK MOUNTING 4X4 400L W948140 (4926772677B013) | SWING ARM/SHOCK MOUNTING 4X4 400L W948140 (4926772677B013)

SWING ARM/SHOCK MOUNTING 4X4 400L W948140 (4926772677B013) | SWING ARM/SHOCK MOUNTING 4X4 400L W948140 (4926772677B013)

SWING ARM/SHOCK MOUNTING 4X4 400L W948140 (4926772677B013) | SWING ARM/SHOCK MOUNTING 4X4 400L W948140 (4926772677B013)

Например: 7512701

1

7512701

BOLT SHOULDER

2

5220958

PLATE BOLT LOCK

3

5630351

ADAPTER,SPRING,SEAT

4

7041204-067

SPRING COMP REAR

5

7542439

Nut (SELF-LOCKING)

6

7515415

Vis

7

5251753

RETAINER-SPRING STEEL

8

7041448

SHOCK REAR

9

5431032

SLEEVE SPRING PROTECTOR

10

5630334

CAM ADJUSTING SPRING

11

3610016

SEAL OIL

12

7555779

WASHER(10)

13

LR--

CALIPER, BRAKE, RH

14

7542601

NUT,CROWN LOCK(10)

15

7512702

BOLT SHOULDER

16

7621433

RIVET

17

7555752

BUSHING, MACH.(10)

18

3576512

BEARING SWINGARM

19

5010255

BUSHING,SWING ARM

20

5431310

GUIDE CHAIN

21

7512252

SCREW(10)

22

7552604

Rondelle

23

7515304

SCREW-FLANGED

24

7558402

WASHER FLAT

25

5332828

BUSHING

26

5430776

GUARD CHAIN

27

7542321

NUT FLANGE

28

1580090

ARM ASM,SWING

29

7555883

Rondelle

30

7542503

NUT FLEXLOCK

31

1040166-067

GUARD SWING ARM

32

7074177

DECAL,CHAIN TENSION Substituted by 7074752

33

7072533

"""DECAL HITCH"""

34

2873036

HITCH ATV CHAIN DRVN

35

7512576

Vis

36

5130663

HOUSING, AXLE

37

7080306

FITTING LUBE.W/BALL CK.

38

7515438

Vis

39

7080438

FITTING LUBE.
