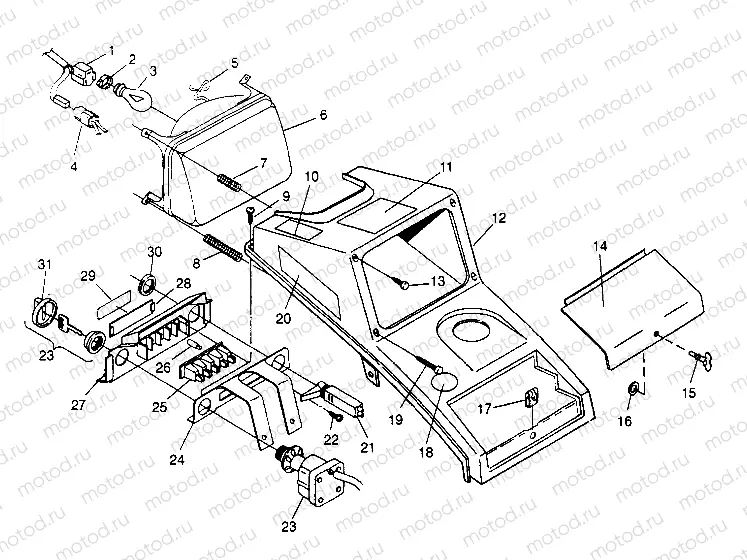

Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 400L 4X4 (W948140) Polaris 1994 ATV HEADLIGHT ASSEMBLY 4X4 400L W948140 (4926772677A013) | HEADLIGHT ASSEMBLY 4X4 400L W948140 (4926772677A013)

HEADLIGHT ASSEMBLY 4X4 400L W948140 (4926772677A013) | HEADLIGHT ASSEMBLY 4X4 400L W948140 (4926772677A013)

HEADLIGHT ASSEMBLY 4X4 400L W948140 (4926772677A013) | HEADLIGHT ASSEMBLY 4X4 400L W948140 (4926772677A013)

Например: 2460424

1

2460424

HARNESS HEADLIGHT

2

4032066

COVER,SOCKET,H/L.

3

4030028

BULB H/L

4

4040024

HSG,DUAL,FEMALE

5

4032063

RETAINER H/L BULB

6

4032065

HEADLIGHT ASM., INCANDESCENT W/BULB SEAL

7

4032002

SPRING-ADJ

8

4032041

SPRING ADJ.

9

7512017

Vis

10

7072737

"""DECAL WARN DEM.4 SW."""

11

7073464

DECAL, CERTIFICATION

12

5431202-136

COVER,(P.RED),H/L.

13

7518157

SCR-M5X.8X50MM

14

5431201-136

DOOR,ACCESS(P.RED)

15

7670064

FASTENER, 1/4 TURN(10)

16

7670065

RING SPLIT RETAINER

17

7670066

RECEPTACLE,CLIP-ON(10)

18

7074695

LOGO 40 YEARS

19

4032042

SCREW ADJUST (ATV)

20

7074227

DECAL,'POLARIS'H/L POD

21

7080371

CABLE CHOKE

21

2200188

KIT-CHOKE CONTROL

22

7511862

Vis

23

4110140

SWITCH IGNITION

24

5220965-067

BRKT, IGN. PANEL

25

4032037

STRIP, SOCKET

26

4080872

BULB

27

5430995

PANEL, IGNITION

28

2652049

LENS ASM PILOT LIGHT

29

7072528

DECAL, PANEL [No Longer Available]

30

7080229

Nut

31

5433534

KEY COVER-KEYSWITCH
