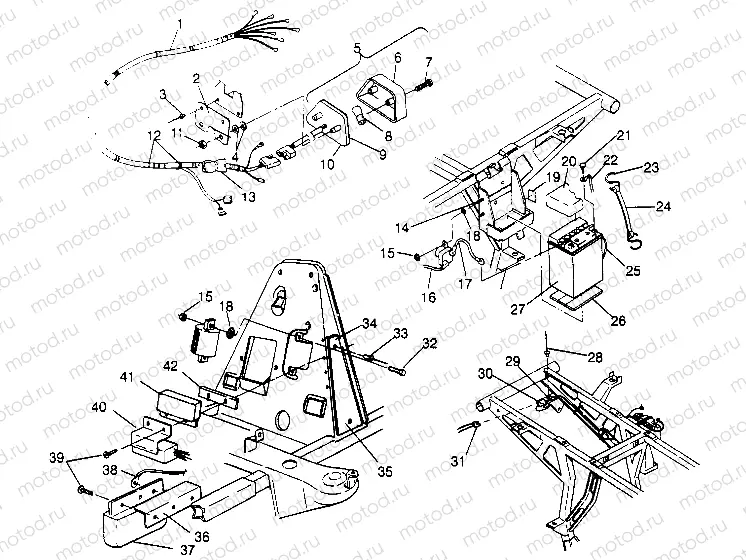

ELECTRICAL/TAILLIGHT ASSEMBLY 4X4 400L W948140 (4926772677C009) | ELECTRICAL/TAILLIGHT ASSEMBLY 4X4 400L W948140 (4926772677C009)

ELECTRICAL/TAILLIGHT ASSEMBLY 4X4 400L W948140 (4926772677C009) | ELECTRICAL/TAILLIGHT ASSEMBLY 4X4 400L W948140 (4926772677C009)

Например: 2460476

1

2460476

HARNESS,MAIN WIRE(400-4X4)

2

5211391-067

ISOLATOR,TAILLIGHT

3

7621453

RIVET

4

7558301

WASHER FLAT

5

2432034

TAIL LIGHT ASM.

6

4032046

Taillight lens

7

4032029

Vis

8

4030043

BULB

9

4032045

Gasket

10

4032064

BACKING TAILLIGHT

11

7670054

NUT PUSH-ON

12

7080138

CABLE TIE

13

2434012

CKT.BREAKER 20 AMP.

14

7512027

Vis

15

7541925

NUT NYLOK 10-24 Y

16

4010064

CABLE SOLENOID/STARTER

17

4010094

CABLE BATT/SOLENOID RED

18

7571602

Rondelle

19

7072606

DECAL, BATTERY [No Longer Available]

20

5431769

COVER BATTERY

21

2200361

KIT-BATTERY BOLT (SHORT)

22

4010095

CABLE BATT/ENG. BLK.

23

7010032

HOOK-BATTERY STRAP

24

5418182

STRAP-BATTERY HOLD DOWN-C

25

8360009-600

LINE FUEL 1/8 ID 600 CM.

26

5810290

PAD BATTERY

27

4140006

La batterie

28

7621336

RIVET

29

7080524

CLAMP BLK 5/16 PLASTIC

30

2410022

POWER ASM 12V

31

2460442

PIGTAIL POWER

32

7512007

Vis

33

7621322

RIVET, POP(50)

34

4040022

BOARD,TERMINAL

35

5431152

SHIELD,TERM.BOARD

36

5131036

HEATSINK RECT.

37

2205046

KIT-REGULATOR RECTIFIER LR-35

38

2460485

HARNESS JUMPER RECTIFIER

39

7512018

Vis

40

5240428

BRKT CDI(ATV 400)

41

4060112

LIMITER,RPM,350HZ. Substituted by 4060203

42

5210650

HEAT SINK
