Главная Каталог товаров Polaris EPC 1994 Polaris ATV Polaris 1994 400L 4X4 (W948140) Polaris 1994 ATV FRONT STRUT ASSEMBLY 4X4 400L W948140 (4926772677B004) | FRONT STRUT ASSEMBLY 4X4 400L W948140 (4926772677B004)

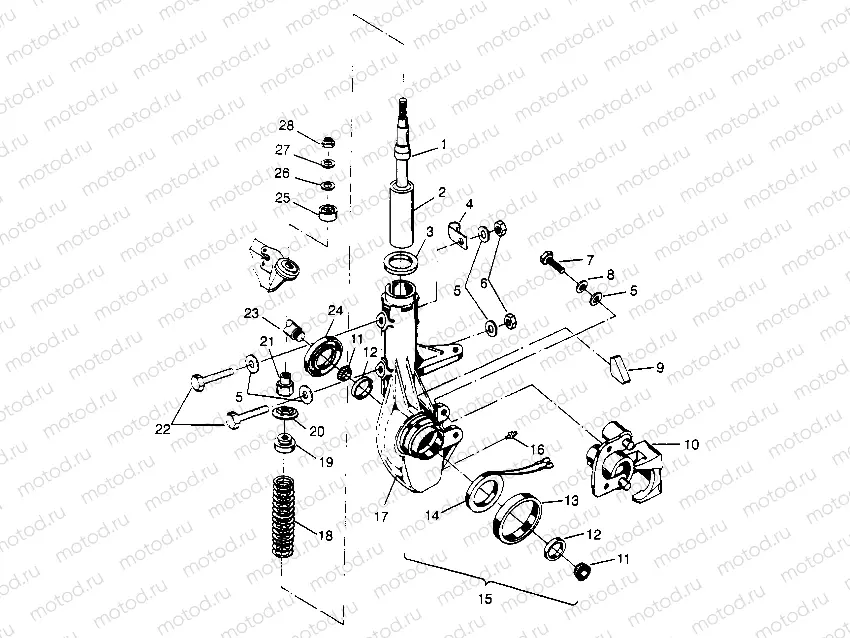

FRONT STRUT ASSEMBLY 4X4 400L W948140 (4926772677B004) | FRONT STRUT ASSEMBLY 4X4 400L W948140 (4926772677B004)

FRONT STRUT ASSEMBLY 4X4 400L W948140 (4926772677B004) | FRONT STRUT ASSEMBLY 4X4 400L W948140 (4926772677B004)

Например: 5410429

1

5410429

BUMPER RUBBER

2

7041451

STRUT ASM FRONT 25MM.

3

5211115

Rondelle

4

7080573

CLAMP RUBBER-COATED .562

5

7558402

WASHER FLAT

6

7542303

NUT FLEX-LOC

7

7512365

SCREW CAP

8

7552901

Rondelle (Lock)

9

5810439

RETAINER,WIRE,STRUT CAST

10

1910264

CALIPER ASM RH F.BRAKE

11

3554506

BRG TAPER.ROLL.CONE

12

3554507

BRG TAPER ROLL CUP

13

5222193

SLEEVE STRUT HUB SEAL

14

4170003

COIL MAGNETIC

15

2200317

HUBSTRUT ASM, RH (Incl. 6, 18, 20, 23, 24)

15

2200316

HUBSTRUT ASM LH

16

7080306

FITTING LUBE.W/BALL CK.

17

5131016

"""SUPPORT LH HUBSTRUT"""

17

5131017

SUPPORT,RH,HUBSTRUT Substituted by 2200602

18

7041161-067

SPRING STRUT

19

5220602

RETAINER,SPRING,TOP

20

5432871

PIVOT BALL BOTTOM

21

5130668

SPACER THREADED

22

7515339

Vis

23

LR--

CALIPER, BRAKE, RH

24

3610028

SEAL HUB STRUT

25

5432872

PIVOT BALL TOP

26

5810291

SPACER RUBBER

27

7555749

Rondelle

28

7542507

NUT FLEX LOC
