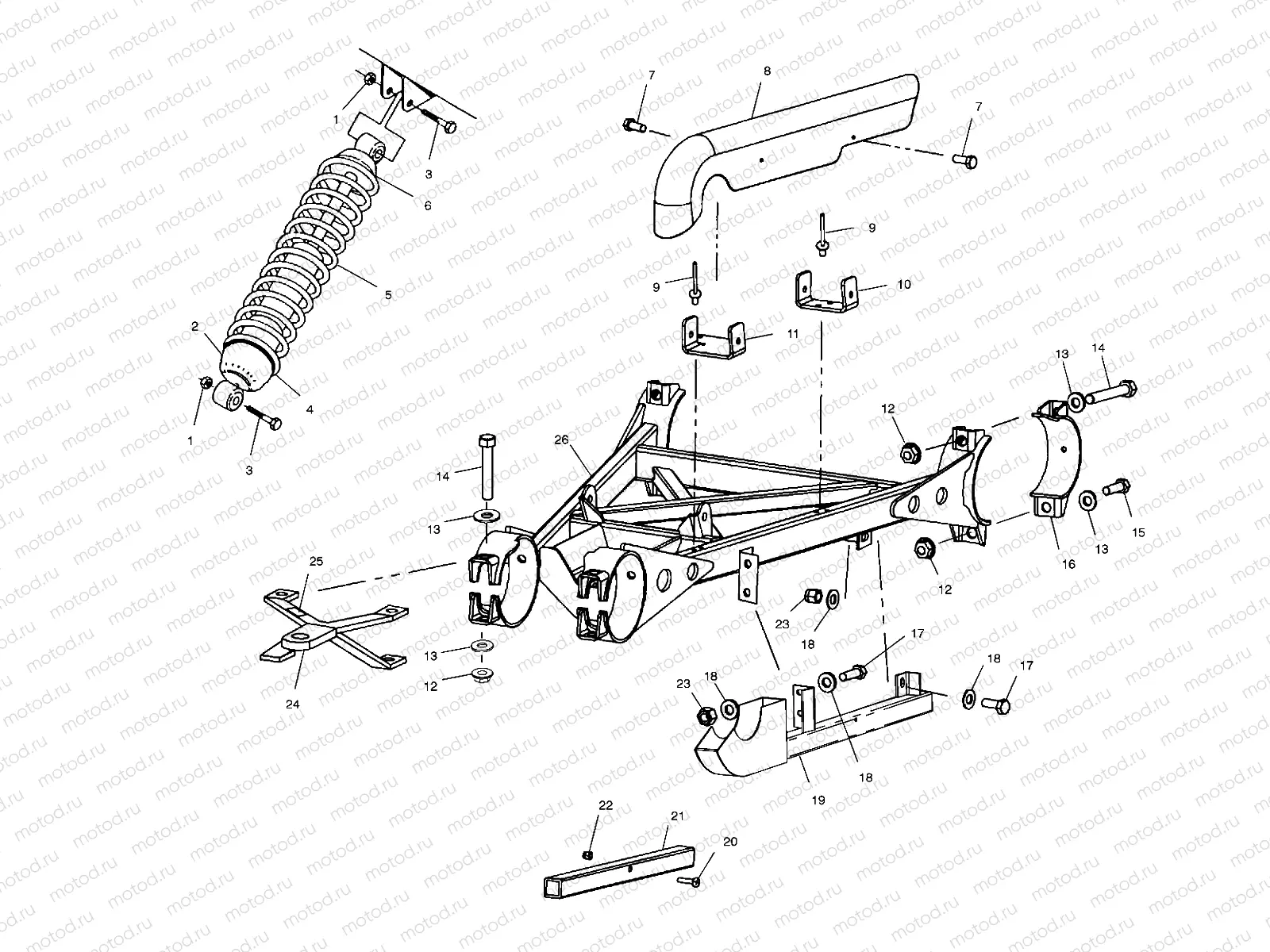

Главная Каталог товаров Polaris EPC SERIES 10 Polaris PPS Polaris SERIES 10 PTV 6X6 (C10CL50AA) Polaris SERIES 10 PPS SWING ARM WELDMENT (REAR) - C10CL50AA (4978707870C03) | SWING ARM WELDMENT (REAR) - C10CL50AA (4978707870C03)

SWING ARM WELDMENT (REAR) - C10CL50AA (4978707870C03) | SWING ARM WELDMENT (REAR) - C10CL50AA (4978707870C03)

SWING ARM WELDMENT (REAR) - C10CL50AA (4978707870C03) | SWING ARM WELDMENT (REAR) - C10CL50AA (4978707870C03)

Например: 7542439

1

7542439

Nut (SELF-LOCKING)

2

7041963

SHOCK-RR

3

7515415

Vis

4

7556142

WASHER 2.085X2.88X.135

5

7042119-067

Spring, Compression

6

5251753

RETAINER-SPRING STEEL

7

7517386

Vis

8

5433539

COVER-CHAIN REAR

9

7661637

RIVET INTERLOCK Z

10

5244077-067

MOUNT-CHAIN COVER FRONT BLK

11

5244078-067

MOUNT-CHAIN COVER REAR BLK

12

7542522

NUT FLANGE

13

7555883

Rondelle

14

7512576

Vis

15

7512520

Vis

16

1580067-067

WELD-BRKT SWING ARM EXT BLK

17

7515321

Vis

18

7558402

WASHER FLAT

19

1013327-067

LOWER EXT CHAIN GUARD BLK

20

7515117

Vis

21

5521279

GUIDE REAR CHAIN

22

7541925

NUT NYLOK 10-24 Y

23

7542324

Nut (SELF-LOCKING)

24

2873036

HITCH ATV CHAIN DRVN

25

7078261

DECAL-HITCH (1225)

26

1541344-067

SWING ARM EXT BLK.
