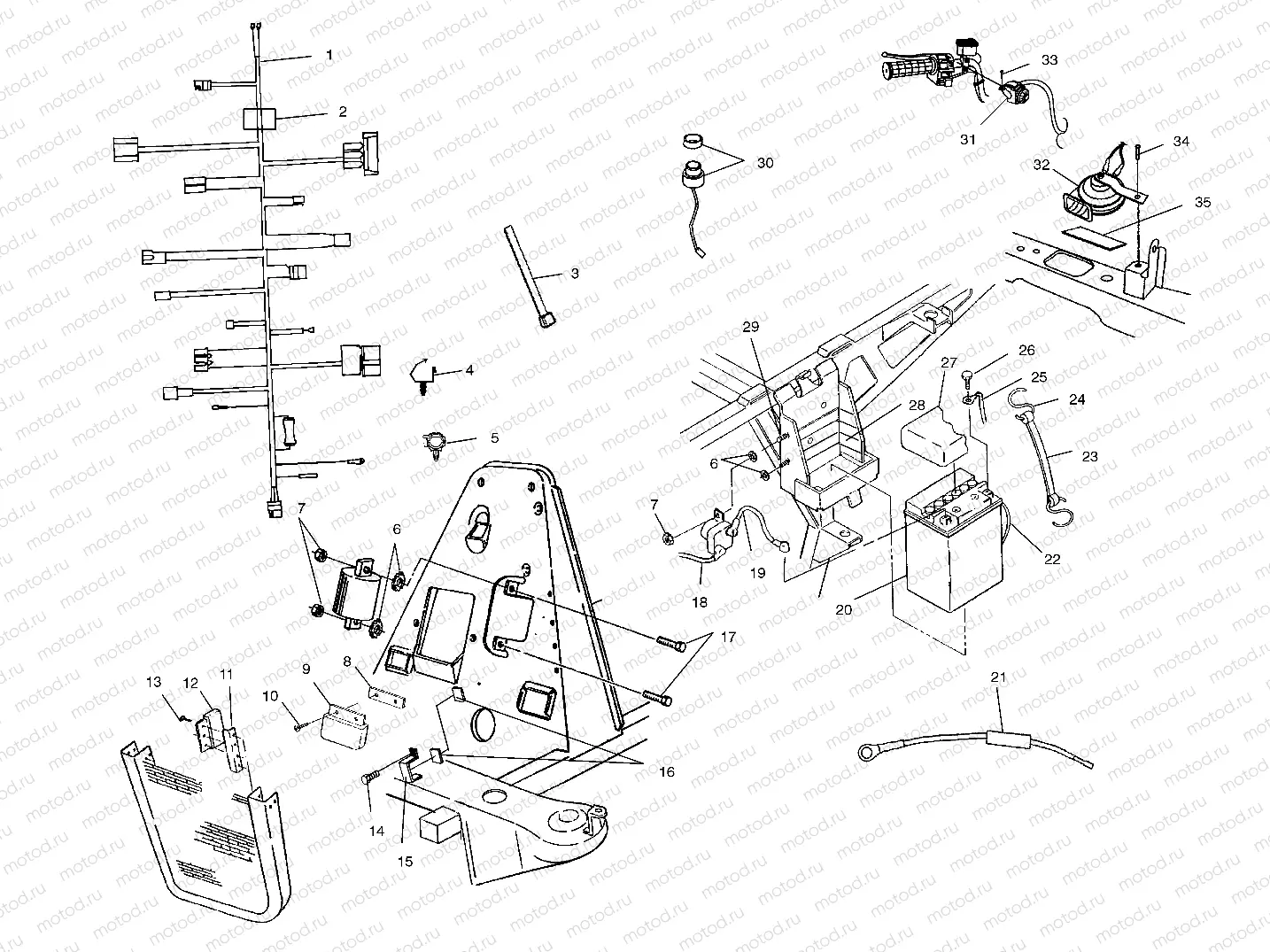

ELECTRICAL - C10CL50AA (4978707870C10) | ELECTRICAL - C10CL50AA (4978707870C10)

ELECTRICAL - C10CL50AA (4978707870C10) | ELECTRICAL - C10CL50AA (4978707870C10)

Например: 2461029

1

2461029

HARNESS-MAIN 6X6 PROFESSIONAL

2

2201795

KIT-CIRCUT BREAKER FAN

3

7080138

CABLE TIE

4

7670109

CLIP-ROUTING

5

4020139

CLIP ROSEBUD

6

7571602

Rondelle

7

7541925

NUT NYLOK 10-24 Y

8

5210650

HEAT SINK

9

4010639

Limiter, RPM

10

7519641

BLT-10-24X3/4 MACHSCR PHL PAN

11

5131036

HEATSINK RECT.

12

2203638

KIT RCT-REG RPLC 4010670

13

7512018

Vis

14

7512024

Vis

15

5246378

Bracket, CDI (If built after 10/08/01)

16

5810455

PAD

17

7512007

Vis

18

4010093

CABLE SOL/STARTER

19

4010094

CABLE BATT/SOLENOID RED

20

4140006

La batterie

21

2202147

KIT-FUSIBLE LINK

22

5432077

TUBE VENT

23

5418182

STRAP-BATTERY HOLD DOWN-C

24

7010032

HOOK-BATTERY STRAP

25

4010095

CABLE BATT/ENG. BLK.

26

2200361

KIT-BATTERY BOLT (SHORT)

27

5431769

COVER BATTERY

28

5810290

PAD BATTERY

29

7512027

Vis

30

4040028

Alarm, Reverse

31

4010311

SWITCH BUTTON

32

4010310

HORN (FA)

33

7512057

SCREW(10) (FA)(FB)

34

7517386

Vis

35

5810317

PAD,FUELTANK BRKT. Substituted by 8360026
