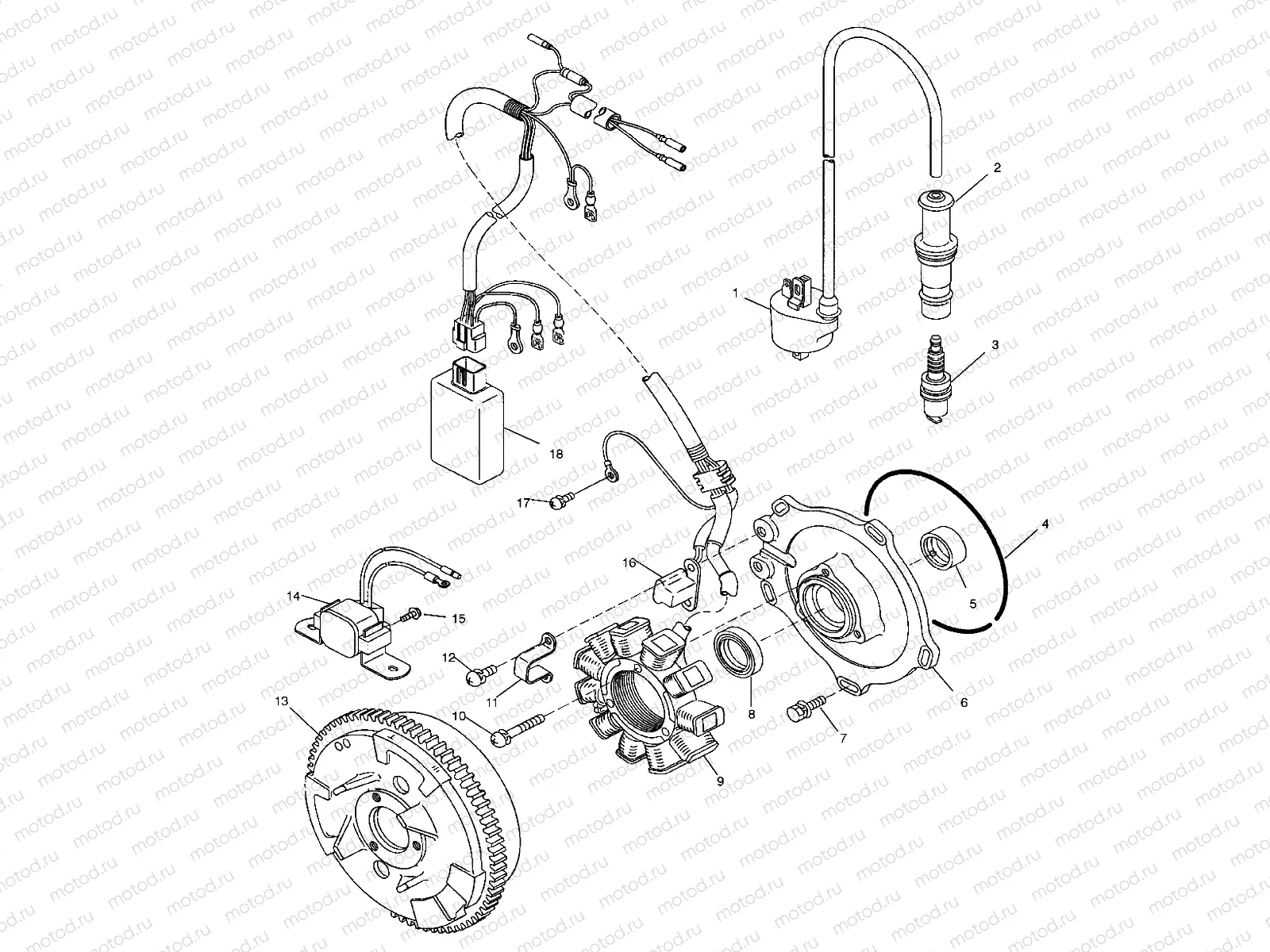

Главная Каталог товаров Polaris EPC SERIES 10 Polaris PPS Polaris SERIES 10 PTV 6X6 (C10CL50AA) Polaris SERIES 10 PPS MAGNETO - C10CL50AA (4978707870E01) | MAGNETO - C10CL50AA (4978707870E01)

MAGNETO - C10CL50AA (4978707870E01) | MAGNETO - C10CL50AA (4978707870E01)

MAGNETO - C10CL50AA (4978707870E01) | MAGNETO - C10CL50AA (4978707870E01)

Например: 3085227

1

3085227

COIL IGNITION

1

3085227

COIL IGNITION

2

3084980

Spark plug cap

3

3070175

Bougie d'allumage

4

3084978

O-Ring

5

3084972

BEARING METAL

6

3087167

ASM-PLATE (Incl. 5,6,8-12,14,15) (S#99-02080 & after)

6

3086981

PLATE (S#99-02080 & after)

7

3081657

BOLT&WASHER ASM.

8

3084973

SEAL OIL

9

3087168

STATOR

10

3086985

SCREW & WASHER (S#99-02080 & after)

11

3085554

BAND PULSE

12

3084976

SCREW&WASHER ASM.

13

3087166

FLYWHEEL-W/RING GEAR

14

4011335

SWITCH-MAGNETIC

15

3085359

Vis

16

3085360

COIL PULSER

17

3081256

SCREW&WASHER ASM

18

3087201

CDI System
