Главная Каталог товаров DUCATI EPC 1992 DUCATI Superbike 851 DUCATI 1992 SWING ARM » SWING ARM

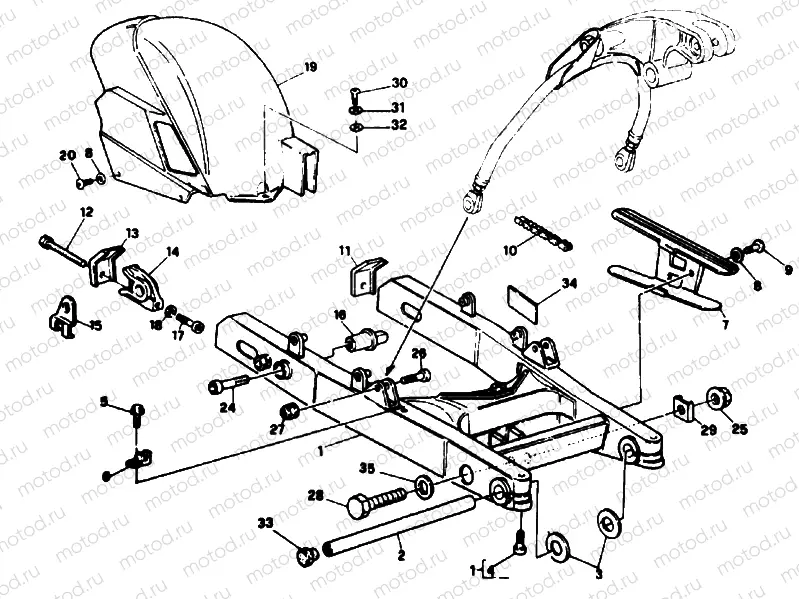

SWING ARM » SWING ARM

SWING ARM » SWING ARM
Например: 37010022B
1
37010022B
SWING ARM
2
36910011A
XLE, REAR SWING ARM
3
85210011B
. THRUST WASHER 20.5X36X1.8 MM
3
85210021A
pc - Rondelle (0,2 mm)
3
85210031B
Rondelle
4
77151578B
Vis
5
77210551A
pc - Vis (M5x0.8x16)
6
800046419
CLIP
7
44710011BB
Guard chain sliding shoe
8
036499710
Gasket (NYLON)
9
77910891B
pc - Vis
10
67640042A
Chaîne
11
37310041A
LEFT COVER
12
77910242A
Vis (M8x90)
13
37310021A
RIGHT COVER
14
37310011A
WHEEL CARRIER
15
37410021A
JAW
16
037740070
LOCATING PIN
17
77150048B
pc - Vis (M3x8)
18
85250021B
pc - Rondelle (3.2x7x1)
19
77151568B
pc - Vis
20
036499015
2 pc - .BOLT 6X16
21
96910794C
Garde-boue arrière
22
77150668B
Vis
23
85310031A
Rondelle (spring)
24
037014240
Rondelle (6.4xD.18x1.5)
25
87210191A
.PLUG
26
77910021B
Vis (spec)
27
74940081A
2 pc - Nut
28
77110011A
Vis (spec)
29
85610642A
Rondelle
30
82710291A
.PLATE
31
763010N01
ut
32
43311051A
LABEL-MANUAL,CHAIN
