Главная Каталог товаров DUCATI EPC 1992 DUCATI Superbike 851 DUCATI 1992 FOOTREST » FRAME

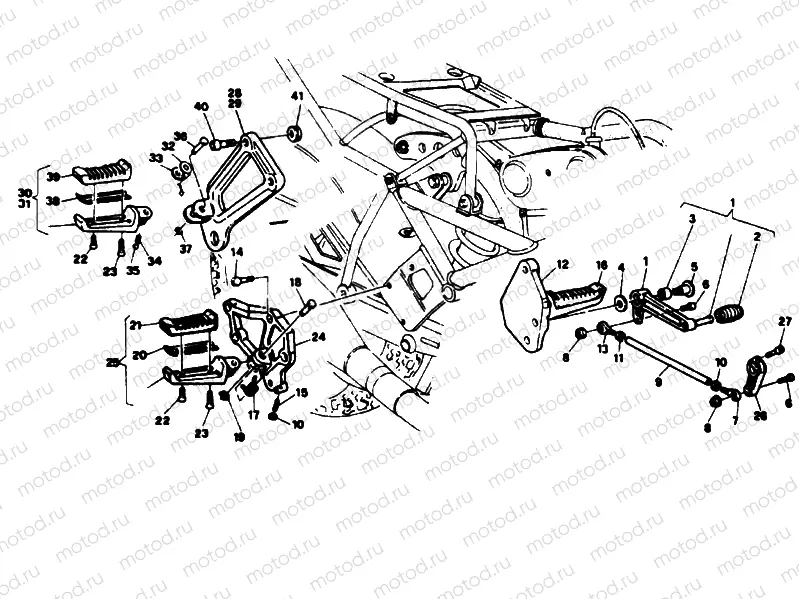

FOOTREST » FRAME

FOOTREST » FRAME
Например: 037069510
1
037069510
Gear change pedal
2
76510171A
Damper
3
037069525
. BUSH
4
096059040
Rondelle (THRUST)
5
037069530
PIN PEDAL
6
77350678B
Vis
7
84850021A
.BALL JOINT, RIGHT
8
74950061A
2 pc - Nut
9
037069540
GEARCHANGE ROD
10
74750101A
pc - Nut
11
74750011AB
Nut
12
82410131A
BRACKET FRONT LEFT FOOTREST
13
84850011A
.BALL JOINT, LEFT
14
037069850
Repose pieds (Front LH)
15
45610461B
Gear change pedal
16
82410121A
BRACKET FRONT RIGHT FOOTREST
17
037069910
Spring, step return
18
037069920
.FOOTREST PIN
19
735000827
Seeger
20
037069930
.PLATE
21
037069940
Footrest rubber
22
77750011A
. SCREW M5X10
23
77750021A
.SCREW M5X14
24
037069855
Repose pieds (Front RH)
25
82410051A
REAR FOOT REST BRACKET LEFT
26
82410041A
REAR RIGHT PLATE
27
037069860
Repose pieds (Rear, Left)
28
037069865
Repose pieds (rear Right)
29
74940081A
2 pc - Nut
30
77151248B
Vis
31
037069970
PLATE
32
82710451A
PLATE, RETAINER
33
79910241A
pc - Spring
34
84740021A
pc - .BALL
35
77151238B
0 pc - Vis
