Главная Каталог товаров DUCATI EPC 1992 DUCATI Superbike 851 DUCATI 1992 FRAME » FRAME

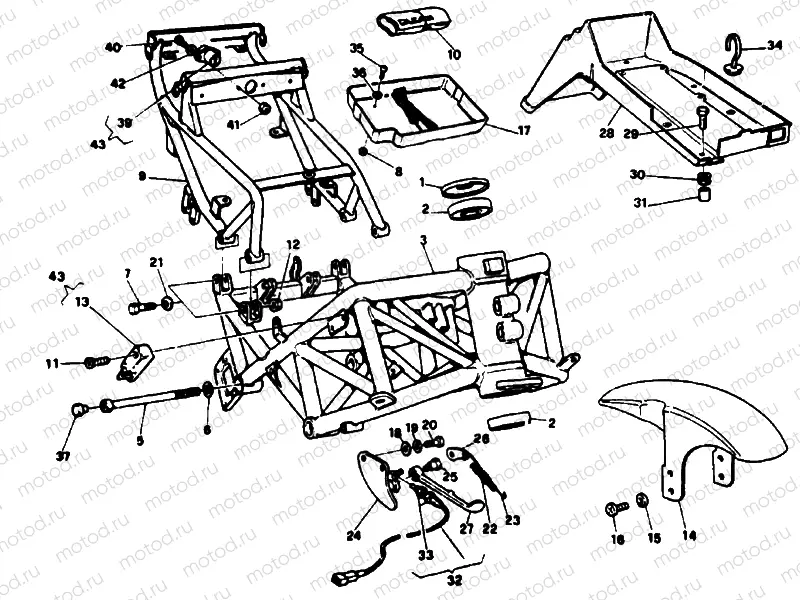

FRAME » FRAME

FRAME » FRAME
Например: 069137020
1
069137020
Rondelle (SPECIAL)
2
069191010
.CONICAL ROLLERS BEARING 639174
3
47010252A
FRAME
5
77910011A
Vis
6
85350071A
Rondelle (spring)
7
800062796
SCREW TE M8X1.25X40 CH12
8
74940081A
2 pc - Nut
9
47010241A
REAR FRAME
10
87210021A
.PLUG
11
77750568C
10 pc - Vis (6x30)
12
59840051A
HELMET LOCK
13
59840043A
SEAT LOCK
14
60N102462
Vis
15
85250011C
pc - Rondelle
16
74950011B
Nut
17
69720011C
Trousse d'outils
18
85610642A
Rondelle
19
85350071A
Rondelle (spring)
20
77910441A
SCREW M10X28
21
037012510
PLATE
22
79910461A
Spring (Outer)
23
79910071A
Spring (Inner)
24
55610031B
RACKET, SIDE STAND
25
77910553A
Vis (spec)
26
60N115079
UT M8X1.00
27
037012500
Béquille latérale
28
037012590
Switch, side stand
29
77914461A
Vis
30
096091765
. GASKET NYLON
31
56410151AA
Front mudguard
32
56110081A
NUMBER PLATE HOLDER
33
77250011A
SCREW M6X25
34
76414191A
Damper
35
037072030
BUSH
36
74140201A
Collier
37
55920021A
. TOOLS BOX
38
722766420
Vis
39
85211761A
0 pc - Rondelle
40
74941118B
Nut
41
80610091A
HANDLE
42
71310721A
Entretoise
43
800062796
SCREW TE M8X1.25X40 CH12
44
82110471A
PIN
45
79910501A
Spring
46
83510011A
KNOB
47
86150011A
. PIN
48
59820101A
LOCKS KIT
50
52940021A
REFLECTOR, SIDE
51
46010291A
MUDFLAP
52
74941118B
Nut
53
77250988B
pc - Vis
54
88110171A
. RING
55
77250718B
pc - Vis
56
88110181A
RING
