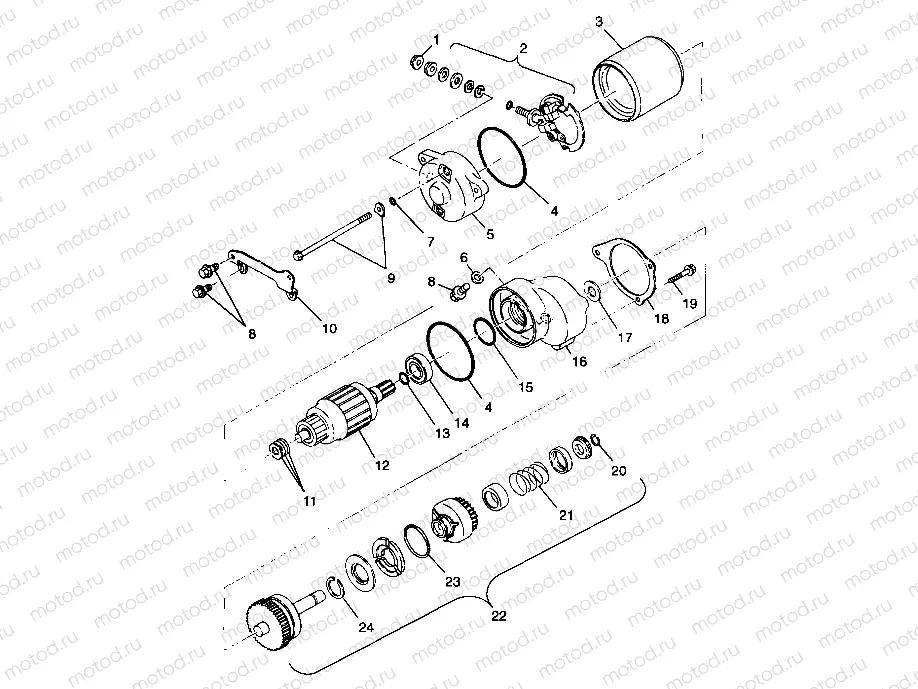

Главная Каталог товаров Polaris EPC 1999 Polaris ATV Polaris 1999 XPLORER 400 (A99CG38CA) Polaris 1999 ATV STARTING MOTOR - A99CG38CA (4949634963D008) | STARTING MOTOR - A99CG38CA (4949634963D008)

STARTING MOTOR - A99CG38CA (4949634963D008) | STARTING MOTOR - A99CG38CA (4949634963D008)

STARTING MOTOR - A99CG38CA (4949634963D008) | STARTING MOTOR - A99CG38CA (4949634963D008)

Например: 3083649

1

3083649

NUT FLANGE

2

3088169

CARBON BRUSH SET

3

3085393

STARTER MOTOR ASM.

3

3087043

Moteur de démarreur

4

3084405

RING RUBBER

5

3085032

COVER,REAR,STARTER(300-400)

6

7555998

WASHER FLAT

7

3084408

O-Ring

8

3087256

Vis

9

3084407

BOLT THROUGH

10

3086780

BRACKET

11

3083754

WASHER SET

12

3084404

ARMATURE ASM.

13

3083934

O-Ring

14

3083777

Roulement

15

3083741

O-Ring

16

3085305

COVER FRONT

17

7555908

Rondelle

18

3085283

GASKET STARTER(NON-ASBESTOS)

19

3086781

Vis

20

3084409

CLIP

21

3084410

SPRING RETURN

22

3090034

ASM-GEAR SHAFT

23

3084411

SPRING WEIGHT

24

3084412

CLIP
