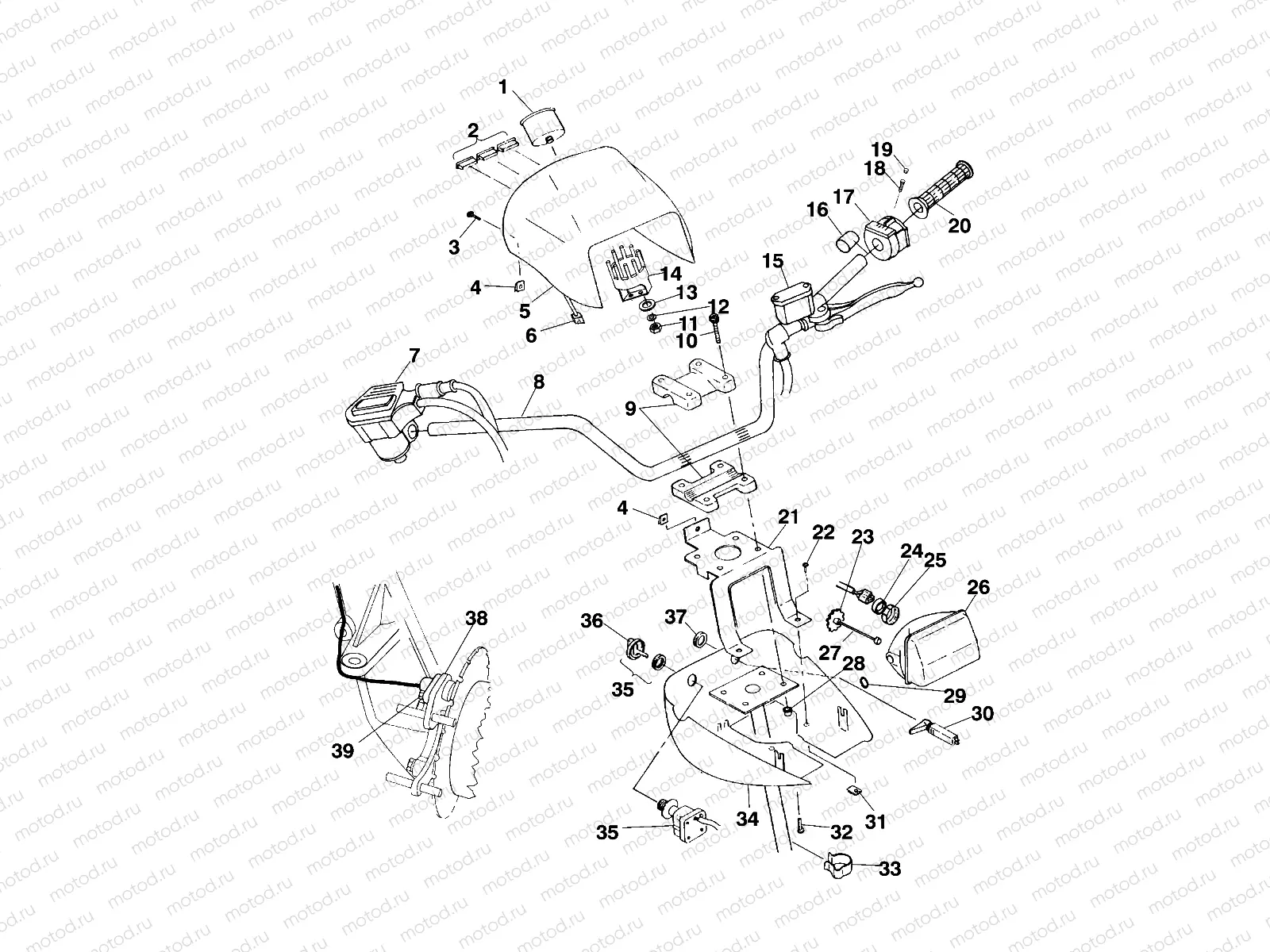

HANDLEBAR and HEADLIGHT POD - A99CG38CA (4949634963B011) | HANDLEBAR and HEADLIGHT POD - A99CG38CA (4949634963B011)

HANDLEBAR and HEADLIGHT POD - A99CG38CA (4949634963B011) | HANDLEBAR and HEADLIGHT POD - A99CG38CA (4949634963B011)
1
3280363
SPEEDOMETER 3.38 6-PULSE
2
4040053
INDICHOT TEMPERATURE
2
4040054
INDICNEUT./REV.
2
4010140
INDICATOR"LOW OIL"(SYMBOL) (Symbol)
3
7511881
Vis
4
7670086
NUT
5
5433042-195
POD,HEADLIGHT,UPPER,EB GREEN
6
2460720
HARNESS-HEADLIGHT POD,XPL 400
8
5242987-067
TUBE-HANDLEBAR BLK
9
2202395
KIT-HANDLE BAR BLOCK
9
5630616-067
BLOCK,H'BAR RETAINER,BLK
10
7515189
Vis
11
7541933
Nut
12
7555868
Rondelle (Lock)
13
7558212
WASHER 13/64X1/2X18GA FL-Y (10
14
3280291
CLAMP BACK ELEC.SPEEDO 3.38
15
LR--
CALIPER, BRAKE, RH
16
5432926
SPACER,SWITCH,LH
17
4010262
SWITCH-HANDLEBAR H/L/O REV/OR
18
7517625
SCREW SET
19
5432952
PLUG HOLE
20
5433834-070
GRIP-HNDLBAR 7/8 ID BLACK
21
5244969-329
BRKT-POD MOUNTING E-COAT
22
7517317
Vis
23
4032079
KNOB ADJUSTING
24
5411120
BOOT HEADLIGHT
25
4032077
COLLAR LOCK
26
4032075
ASM HEADLIGHT W/ADJUST ROD-KNO
26
2870448
BULB QUARTZ.H/L H4 60/55W
27
4032078
ROD ADJUSTING
28
7542122
NUT-NYLOK
29
5410163
O RING
30
7080371
CABLE CHOKE
30
2200188
KIT-CHOKE CONTROL
31
7670089
NUT U-TYPE
32
7522021
Vis
33
7080631
CLIP CABLE RETAIN
34
5431811-070
POD,H/L,LOW,BLK.
35
4110141
Clé Vierge
35
5433733
NUT IGNITION SWITCH
35
4110209
SWITCH IGN.W/ CON
35
4110148
Clé Vierge
36
5433534
KEY COVER-KEYSWITCH
37
7080229
Nut
38
2201625
KIT SPEEDO SENSOR LG
39
7515133
Vis

Узлы для XPLORER 400 (A99CG38CA) Polaris 1999 ATV
