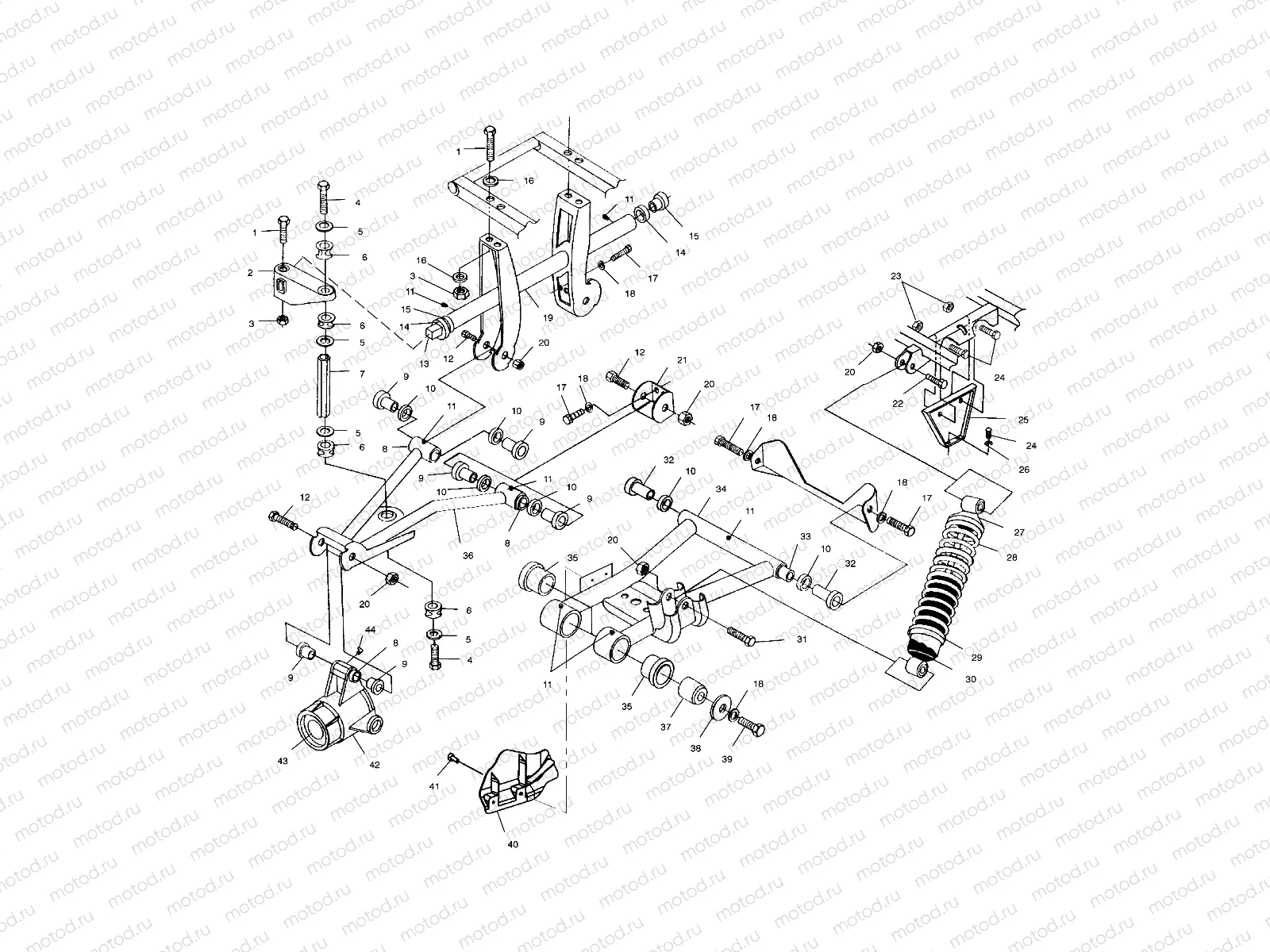

REAR SUSPENSION - A02CH42AA (4968536853C07) | REAR SUSPENSION - A02CH42AA (4968536853C07)

REAR SUSPENSION - A02CH42AA (4968536853C07) | REAR SUSPENSION - A02CH42AA (4968536853C07)

Например: 7512329

1

7512329

Vis

2

1543119-067

WELD-ARM STABILIZER BAR BLK

3

7542324

Nut (SELF-LOCKING)

4

7517231

Vis

5

7555761

Rondelle

6

5432598

BUSHING STAB.LINK

7

5020827

ROD-LINKAGE STABILIZER

8

5020826

SHAFT A-ARM SHORT

9

5439270

BUSHING-A-ARM-SHORT BLK

9

5439270

BUSHING-A-ARM-SHORT BLK

10

5020677

BUSHING A-ARM SPACER

11

7080433

FITTING LUBRICATION THREADED(1

12

7515472

Vis

13

5334114-329

BAR-STABILIZER TUBE E-COAT

14

7555939

Rondelle

15

5438901

BUSHING-STABILIZER TUBE BLK

15

5438901

BUSHING-STABILIZER TUBE BLK

16

7558402

WASHER FLAT

17

7512492

Vis

18

7552603

Rondelle (Lock)

19

1541322-067

SUPPORT,STABILIZER,BLK.

19

1541802-067

WELD-STABILIZER SUPPORT BLK

20

7542439

Nut (SELF-LOCKING)

21

5247345

BRKT-A-ARM PIVOT PLTD

22

7515433

Vis

23

7542321

NUT FLANGE

24

7515321

Vis

25

5224667-067

SUPPORT UPR.TRANS BLK

26

7552901

Rondelle (Lock)

27

5251753

RETAINER-SPRING STEEL

28

7042311-067

SPRING-COMP REAR BLK

29

5631014

CAM SPRING ADJUST 1-3/8

29

5433551

SLEEVE SHOCK PROTECTOR

30

7041959

SHOCK-RR IRS

31

7515415

Vis

32

5436973

BUSHING-A-ARM LONG 102.36MM(10

32

5436973

BUSHING-A-ARM LONG 102.36MM(10

33

5133806

SHAFT-A-ARM

34

1012717-067

ARM,CONTROL,LH,LOW,BLK.

34

1012718-067

ARM,CONTROL,RH,LOW,BLK.

35

5438902

BUSHING-CONTROL LOWER BLK

35

5438902

BUSHING-CONTROL LOWER BLK

36

1040731-067

CONTROL,UPPER,ARM,BLK.RH

36

1040730-067

CONTROL,UPPER,ARM,BLK,LH

37

5631141

Bushing, Bearing Carrier

38

7555936

Rondelle

39

7517297

Vis

40

5433098-070

SHIELD-CV,REAR,BLACK,LH

40

5433099-070

SHIELD-CV,REAR,BLACK,RH

41

7512084

Vis

42

5134206

CARRIER-BEARING WHEEL(MACH)

43

3514635

BEARING-WHEEL 40X74X40MM

44

7080586

FITTING LUBE 45 DEG.
