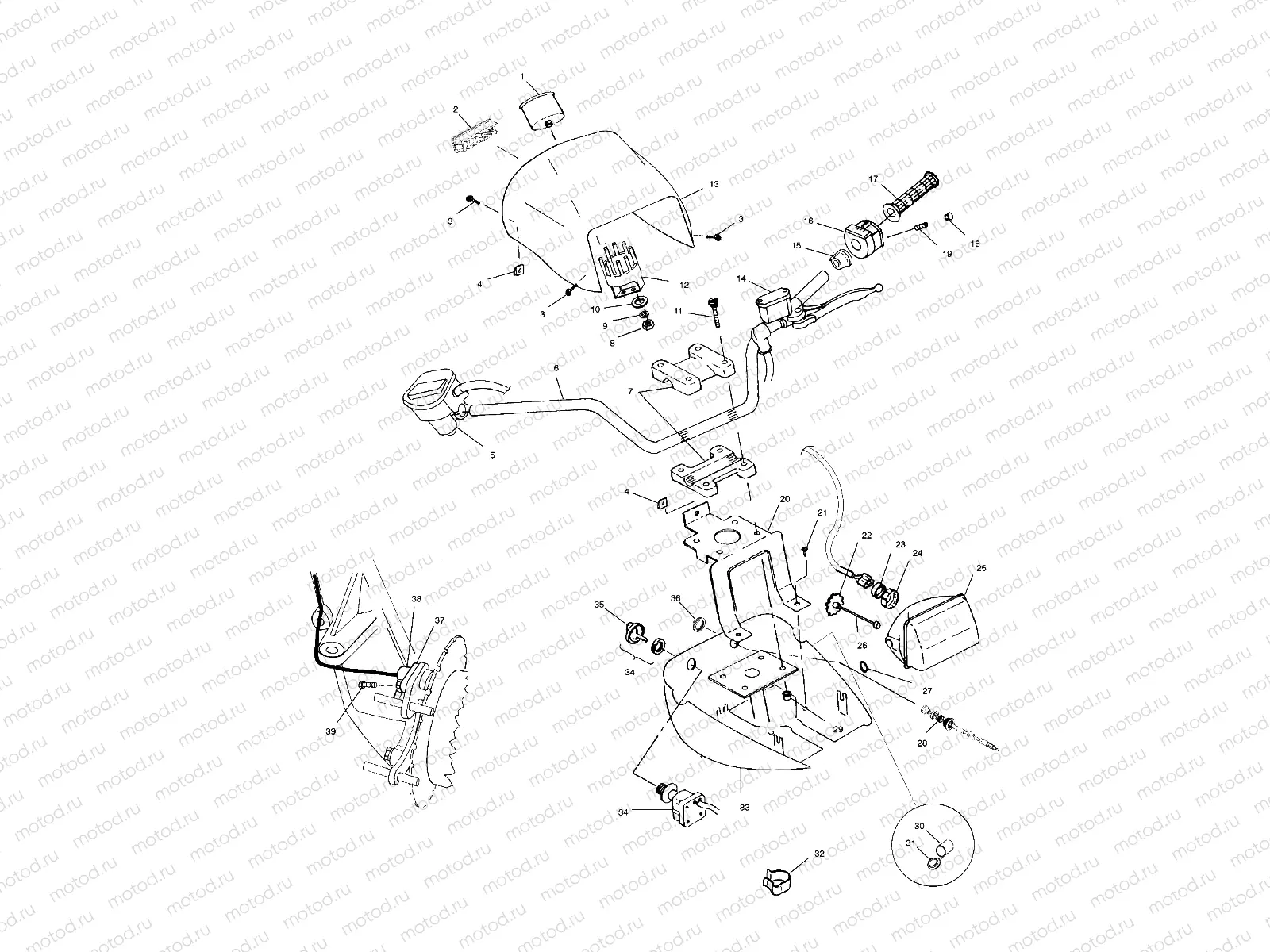

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 SPORTSMAN 400 (A02CH42AB) Polaris 2002 ATV HANDLEBAR AND HEADLIGHT POD - A02CH42AA (4968536853C01) | HANDLEBAR AND HEADLIGHT POD - A02CH42AA (4968536853C01)

HANDLEBAR AND HEADLIGHT POD - A02CH42AA (4968536853C01) | HANDLEBAR AND HEADLIGHT POD - A02CH42AA (4968536853C01)

HANDLEBAR AND HEADLIGHT POD - A02CH42AA (4968536853C01) | HANDLEBAR AND HEADLIGHT POD - A02CH42AA (4968536853C01)

Например: 3280363

1

3280363

SPEEDOMETER 3.38 6-PULSE

2

4010416

BULB-INDICATOR HOBBS

2

4010459

PANEL-INDICATOR SVC STD PVT

3

7511881

Vis

4

7670127

CLIP-SCREW #8/10 .03-.10 PANEL

5

LR--

CALIPER, BRAKE, RH

6

5242987-067

TUBE-HANDLEBAR BLK

7

2202395

KIT-HANDLE BAR BLOCK

7

5630616

DESC NOT_AVAILABLE

8

7541933

Nut

9

7555868

Rondelle (Lock)

10

7558212

WASHER 13/64X1/2X18GA FL-Y (10

11

7515189

Vis

12

3280291

CLAMP BACK ELEC.SPEEDO 3.38

13

5433763-053

POD-HEADLIGHT,UPPER,MED YELLOW (AC)

13

5433763-359

POD-HEADLIGHT UPPER OLIVE GRN

13

5433763-136

POD-HEADLIGHT,UPPER,PORCHE RED (AB)

15

5433903

SPACER-SWITCH LH 99

16

4010591

SWITCH-HANDLEBAR HI/LO/MODE

17

5433834-070

GRIP-HNDLBAR 7/8 ID BLACK

18

5432952

PLUG HOLE

19

7517625

SCREW SET

20

5244969-329

BRKT-POD MOUNTING E-COAT

21

7517317

Vis

22

4032079

KNOB ADJUSTING

23

5411120

BOOT HEADLIGHT

24

4032077

COLLAR LOCK

25

2410268

HEADLAMP ASM. 50 WATT

25

2204143

KIT-HARNESS HEADLIGHT

25

4010253

BULB-HEADLIGHT 50 WATT

26

4032078

ROD ADJUSTING

27

5410163

O RING

28

7081008

CABLE-CHOKE FRICTION 40

29

7542122

NUT-NYLOK

30

4010283

RECEPTACLE-POD MNT 12 VOLT

31

5411744

CAP-RUBBER,12-VOLT RECEPTACLE

32

7080631

CLIP CABLE RETAIN

33

5433762-070

POD-HEADLIGHT LOWER SNAP BLK

34

4010278

Clé Vierge

34

4012164

SWITCH-IGNITION KEYSTART MT SL

34

4010321

Clé Vierge

35

5433534

KEY COVER-KEYSWITCH

36

7080922

NUT CHOKE M24X1.5 THD M29 HEX

37

4010298

SENSOR HALL EFFECT

38

5132382

CAP-HALL SENSOR

39

7517658

Vis
