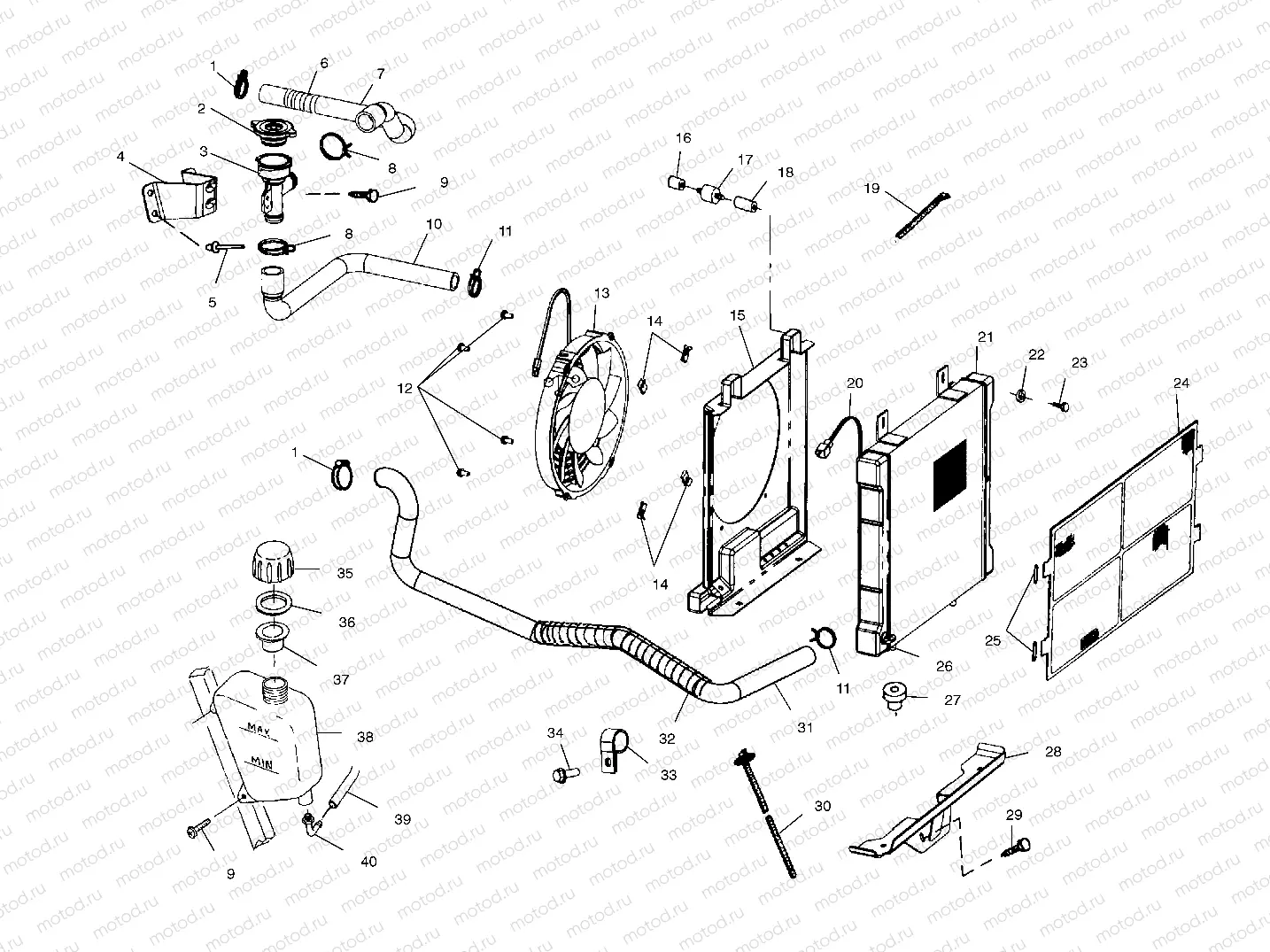

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 SPORTSMAN 400 (A02CH42AB) Polaris 2002 ATV COOLING SYSTEM - A02CH42AA (4968536853A09) | COOLING SYSTEM - A02CH42AA (4968536853A09)

COOLING SYSTEM - A02CH42AA (4968536853A09) | COOLING SYSTEM - A02CH42AA (4968536853A09)

COOLING SYSTEM - A02CH42AA (4968536853A09) | COOLING SYSTEM - A02CH42AA (4968536853A09)

Например: 7080696

1

7080696

CLAMP HOSE 1.25 WORM DRIVE

2

1240508

CAP-PRESSURE 13 PSI

3

5433364

FILLER-REMOTE COOLANT

4

5243505

BRKT-REMOTE COOLANT FILL PLTD

5

7661637

RIVET INTERLOCK Z

6

5433948

FLEXGUARD-PLASTIC GUARD

7

5411783

HOSE UPPER ENGINE

8

7080843

CLAMP SPRINGBAND 32/12

9

7512084

Vis

10

5411632

HOSE FILLER NECK

11

7080826

CLAMP-ROTO CLIP

12

7517659

Vis

13

2410123

FAN&MOTOR ASM SPAL

14

7670111

CLIP U

15

5433059

SHROUD-FAN

16

7547069

NUTSERT HEX

17

3110032

MOUNT RUBBER

18

5020572

SPACER MOUNT

19

7080492

CABLE TIE 11 INCH

20

4010161

SENSOR-THERMAL/HARNESS

21

1240533

RADIATOR

22

7552801

Rondelle (Lock)

23

7512240

Vis

24

5433317

COVER-RADIATOR,W/MESH

25

5410607

O RING

26

7052296

VALVE-PLASTIC DRAIN

27

5410584

BUSHING-MOUNT LOWER RADIATOR

28

5243503-067

BRKT RADIATOR LOWER BLK

29

7512232

Vis

30

7080890

STRAP-PANDUIT,PANEL TIE

31

5411782

HOSE LOWER ENGINE

32

5521793-51

CONDUIT-FLEX 1.00 ID PE 51CM

33

7080807

CLAMP-HOSE

34

7517386

Vis

35

5430743

CAP OVERFLOW

36

5810279

GASKET

37

5433774

CAP PLUG9X(GRN) FLEX TEMP

38

5436936

TANK-SURGE

39

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

40

7052065

FITTING 90 DEGREE
