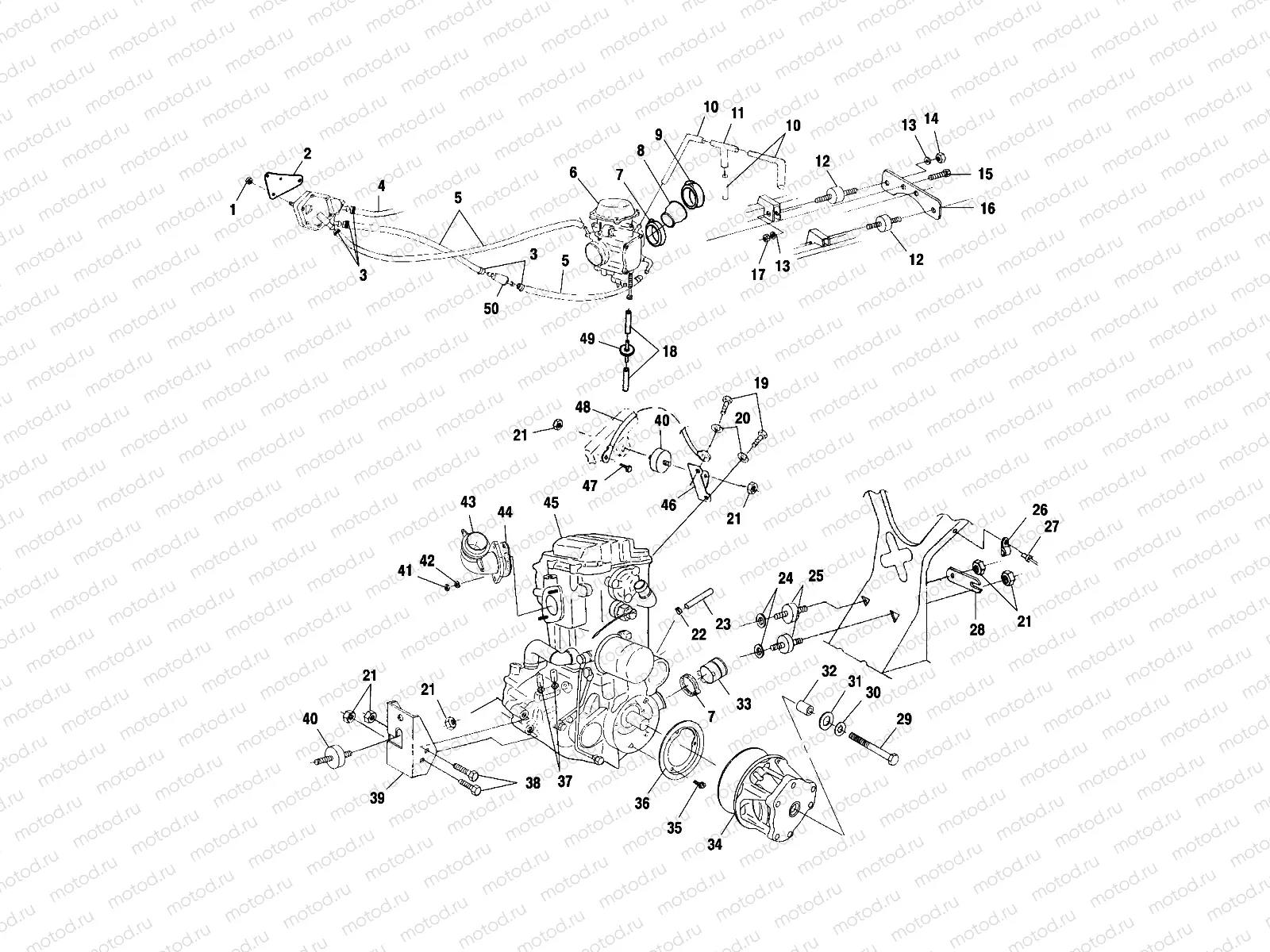

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 SPORTSMAN 400 (A02CH42AB) Polaris 2002 ATV ENGINE MOUNTING - A02CH42AA (4968536853A13) | ENGINE MOUNTING - A02CH42AA (4968536853A13)

ENGINE MOUNTING - A02CH42AA (4968536853A13) | ENGINE MOUNTING - A02CH42AA (4968536853A13)

ENGINE MOUNTING - A02CH42AA (4968536853A13) | ENGINE MOUNTING - A02CH42AA (4968536853A13)

Например: 7546601

1

7546601

NUT NYLOK

2

5243829

DESC NOT_AVAILABLE

3

7080003

CLAMP HOSE

4

5811490

HOSE,(.25 IDX1.75"LG.)

5

8450040-600

LINE FUEL 1/4 ID(600 CM.)

7

7080413

CLAMP BAND NARROW

8

5410995

BOOT,CARB

9

7080511

CLAMP NARROW BAND

10

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

11

7052075

FITTING TEE

12

3110032

MOUNT RUBBER

13

7552605

Rondelle

14

7542105

NUT HEX

16

5211626-067

STRAP CARB.MT BLK.

17

7547069

NUTSERT HEX

18

8360009-600

LINE FUEL 1/8 ID 600 CM.

19

7512315

Vis

20

7552901

Rondelle (Lock)

21

7547108

Nut

22

7080694

CLAMP HOSE SPRING

24

7555815

WASHER FLAT

25

3022072

ISOLATOR-3/8-24M 3/8-16M 60DUR

26

7080539

CLAMP NYLON CABLE

27

7621462

RIVET

28

5224658-067

STRAP FRAME SUPPORT BLK

29

7512566

Vis

30

7575202

Rondelle (Lock)

31

5210748

Rondelle

32

5430261

BUSHING

33

5410421

BOOT CLUTCH INTAKE

35

LR--

CALIPER, BRAKE, RH

37

7080474

CLAMP HOSE

38

7515417

Vis

39

5241150

Mount, Engine, Front

40

3024012

ISOLATOR-3/8-24M/M 60DURO

43

1261688-489

WELD-MANIFOLD 1.625 BLK

45

3087023

ENGINE-EH42PLE05-SB (EH42PLE05) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f

46

5241453

MOUNT-ENGINE TOP PLTD

47

7512232

Vis

48

4010132

CABLE GND-ENGINE

49

7051011

VALVE CHECK

50

2530009

Filtre à carburant (IN-LINE)
