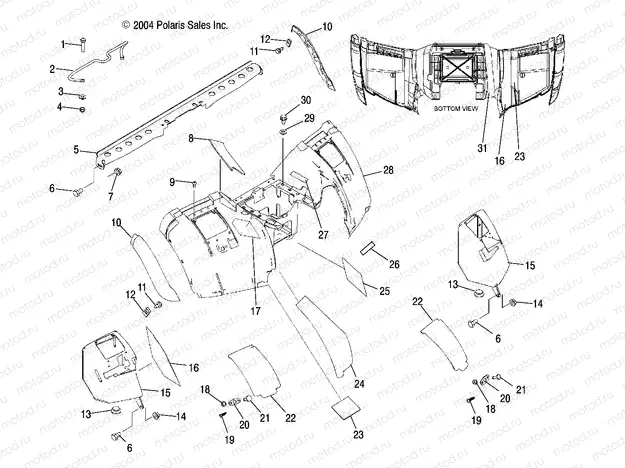

REAR CAB - A05JD32EA (4997869786A08) | REAR CAB - A05JD32EA (4997869786A08)

REAR CAB - A05JD32EA (4997869786A08) | REAR CAB - A05JD32EA (4997869786A08)

Например: 7511930

1

7511930

Vis

2

5334292

Retainer, Seat Latch

3

7555792

Rondelle

4

7541925

NUT NYLOK 10-24 Y

5

5247389-067

Support, Compartment

6

7512297

Vis

7

7542122

NUT-NYLOK

8

5812505

Foil, Rear Cab, Inside

9

7517299

Vis

10

5434797-070

GUARD-MUD REAR LH BLK

10

5434798-070

Guard, Mud, Rear, RH

11

7512232

Vis

12

7670057

NUT SPEED

13

5412981

PLUG-COMPARTMENT

14

7542153

NUT NYLOK FLANGED

15

5434905

Compartment, Rear, Cab, RH

15

5434904

Compartment, Rear, Cab, LH

16

5812489

Foil, Compartment, RH

17

5812805

Foil

18

5412504

GROMMET-RUBBER MOUNT 25

19

7512076

Vis

20

5246946

PLATE-SPEAR

21

5246693

PIN-CATCH

22

5434795-070

COVER-COMPARTMENT CAB LH BLK

22

5434796-070

COVER-COMPARTMENT CAB RH BLK

23

5811107

FOIL REAR

24

5812804

Fabric, Rear Cab, Fender

25

5812810

Foil, Battery Box

26

5811322

Foil (If built after 6/30/03)

27

7170007

Decal, Carb Information

28

5434796-070

COVER-COMPARTMENT CAB RH BLK

29

7555859

WASHER FLAT

30

7512242

Vis

31

5812807

Fabric, Rear Cab, Upper
