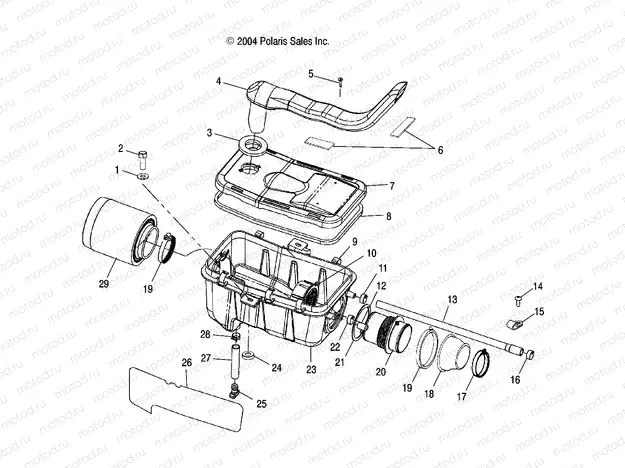

AIR BOX - A05JD32EA (4997869786B08) | AIR BOX - A05JD32EA (4997869786B08)

AIR BOX - A05JD32EA (4997869786B08) | AIR BOX - A05JD32EA (4997869786B08)

Например: 7558301

1

7558301

WASHER FLAT

2

7518306

SCR-1/4-20X1.50-HX/W-TAPR-GP-Y

3

5812023

SEAL

4

5433920

DUCT-INLET,AIRBOX COVER

5

7517317

Vis

6

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

7

5433769

COVER AIRBOX

8

5813949

SEAL-AIRBOX COVER

9

5242044

CLIP

10

5432601

COLLAR CARBURETOR INLET

11

7080699

CLAMP HOSE

12

5433396

CAP END 406-12 3/4BLK

13

5411866

HOSE BRTHR .47-.38X13.5

14

7512024

Vis

15

7080499

CLAMP CABLE

16

7080694

CLAMP HOSE SPRING

17

7080511

CLAMP NARROW BAND

18

5411588

BOOT-CARBURETOR

19

7080413

CLAMP BAND NARROW

20

5433180

DUCT-CARBURETOR INLET

21

5830128

GASKET CARBURETOR INLET DUCT

22

7080534

CLAMP HOSE

23

5435758

BOX-AIR INTAKE

24

7556091

Entretoise

25

5432377

PLUG TRAP

26

5812111

FOIL-RH

27

8450059-150

FUEL LINE

28

7080650

CLAMP HOSE

29

1253372

ASM-FILTER AIR 4.0 LONG
