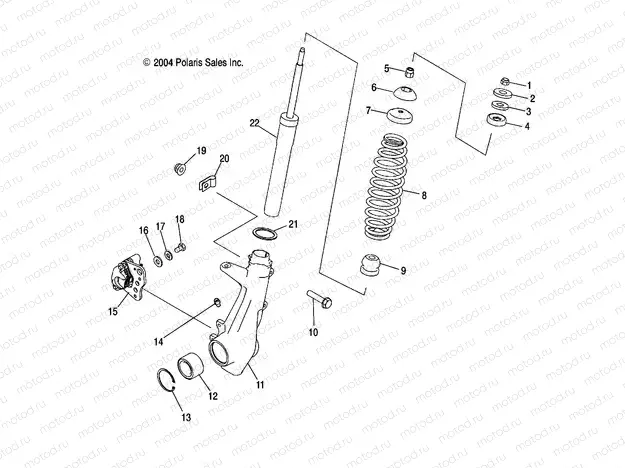

FRONT STRUT - A05JD32EA (4997869786B13) | FRONT STRUT - A05JD32EA (4997869786B13)

FRONT STRUT - A05JD32EA (4997869786B13) | FRONT STRUT - A05JD32EA (4997869786B13)

Например: 7547104

1

7547104

NUT

2

7555749

Rondelle

3

5810291

SPACER RUBBER

4

5432872

PIVOT BALL TOP

5

5132062

SPACER-1/2-20

6

5432871

PIVOT BALL BOTTOM

7

5243364

RETAINER-SPRING

8

7042312-067

SPRING-COMP 64-113# 11.6 BLK

9

5412665

BUMPER-MCU 17.8MM ID

10

7518340

BOLT-5/16-18X2-1/4 HXFLNG GR5

11

1822654

HUBSTRUT ASM RH

11

1822653

HUBSTRUT ASM LH

12

3514634

BEARING-WHEEL 35X64X37MM

13

7710507

RING RET. 2.500 INTERNAL

14

7080306

FITTING LUBE.W/BALL CK.

15

LR--

CALIPER, BRAKE, RH

16

7558402

WASHER FLAT

17

7552901

Rondelle (Lock)

18

7512365

SCREW CAP

19

7542343

NUT FLANGE

20

7080367

CLAMP CABLE

21

5211115

Rondelle

22

7041761

STRUT-FRONT 18X30MM 153.8MM ST
