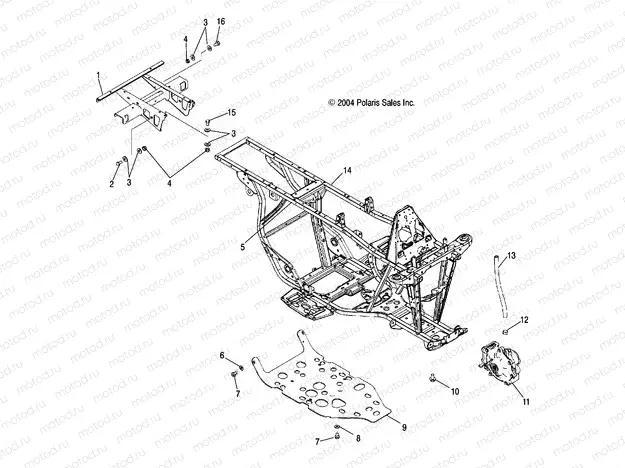

FRAME EXTENSION and MAIN FRAME - A05JD32EA (4997869786A03) | FRAME EXTENSION and MAIN FRAME - A05JD32EA (4997869786A03)

FRAME EXTENSION and MAIN FRAME - A05JD32EA (4997869786A03) | FRAME EXTENSION and MAIN FRAME - A05JD32EA (4997869786A03)

Например: 1013839-067

1

1013839-067

WELD-FRAME EXTENSION BLK

2

7515317

Vis

3

7555960

WASHER FLAT

4

7542324

Nut (SELF-LOCKING)

5

5812809

Fabric, Upper Frame Tube

6

7558301

WASHER FLAT

7

7517386

Vis

8

7556065

WASHER SKID PLATE

9

5435005

Guard, Rock

10

7518364

Vis

11

LR--

CALIPER, BRAKE, RH

12

7080307

CLAMP HOSE

13

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

14

1014966-067

Frame, Main, Black

15

7515319

Vis

16

7512329

Vis
