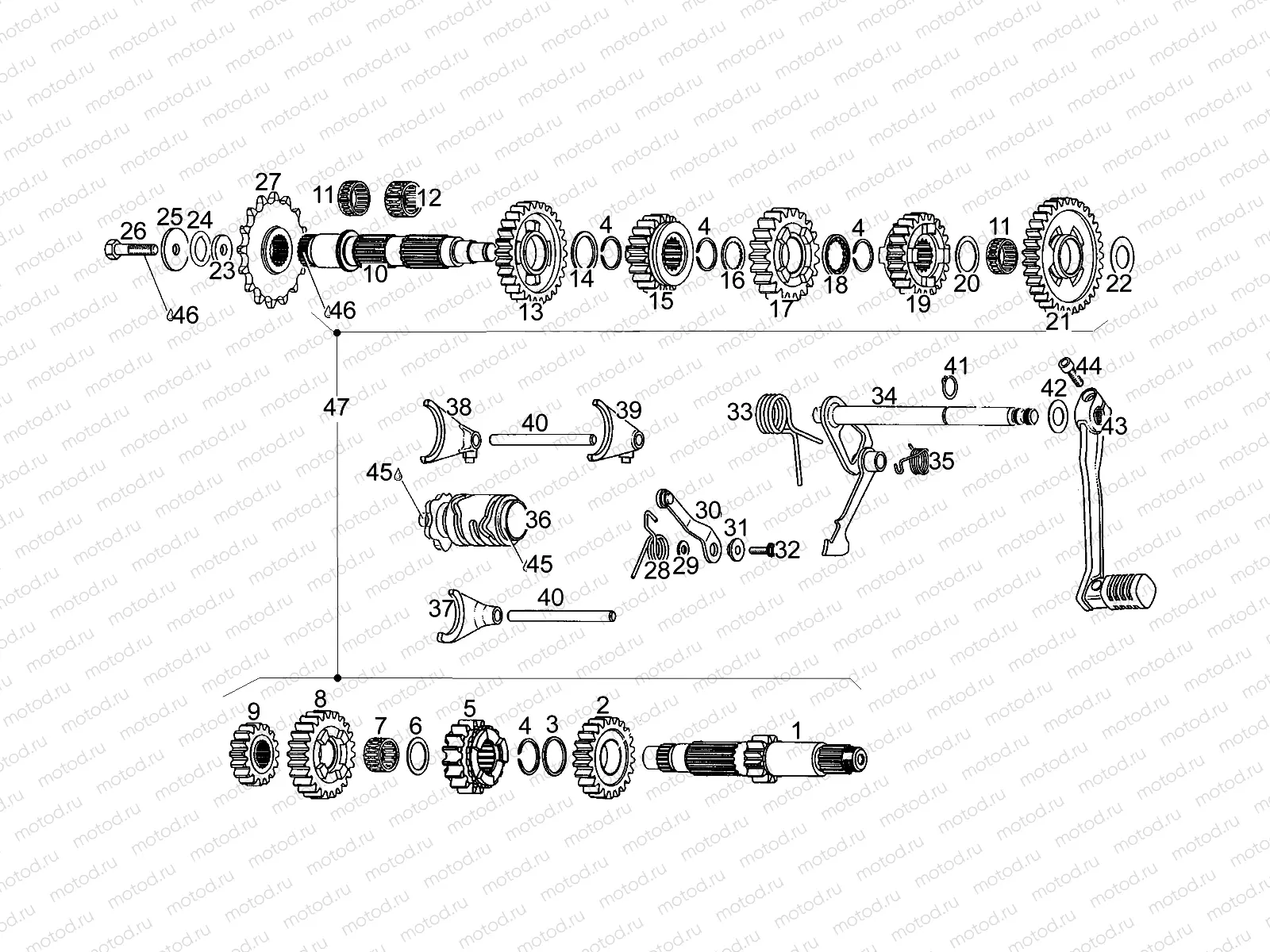

Gear box N>S

Gear box N>S
Например: AP0237110
1
AP0237110
rimary gear shaft Z=12
2
AP0234715
Gear 4 v.ta' Z=22
2
AP0234719
Gear 4 v.ta' Z=22
3
AP0227820
Thrust washer
4
AP0445300
Seeger
5
AP0234690
Gear Z=16
5
AP0634335
Gear Z=16
6
AP0227445
Thrust washer 21,2/27,5/1
7
AP0232805
Roller cage 21x25x13
8
AP0234720
5th pinion gear Z=24
9
AP0234671
nd pinion gear Z=16
10
AP0237070
Driven shaft
11
AP0232520
Roller cage 22x26x10
12
AP0232530
Roller cage 22x26x13
13
AP0234680
Gear Z=28
14
AP0227860
Thrust washer
15
AP0234740
Gear Z=21
16
AP0244050
Thrust washer
17
AP0234700
rd wheel gear Z=21
18
AP0227495
Thrust washer 22,5x31,4x2,9
19
AP0234730
Gear 4 v.ta' Z=23
20
AP0927470
Rondelle
21
AP0234660
Gear 1 v.tà Z=33
22
AP0227430
Thrust washer 17,2/30/1
23
AP0244200
Rondelle
24
AP0250430
O-ring 20-3,5 mm
25
AP0227930
Rondelle
26
AP0940485
Vis
27
AP0236156
inion Z=16
27
AP0236157
inion Z=17
27
AP0236155
inion
28
AP0239090
Index spring
29
AP0244211
Rondelle
30
AP0248995
Index assy. lever
31
AP0227711
Bush
32
AP0240580
Vis
33
AP0239084
Spring
34
AP0237155
Gearshift shaft+pawl assy
35
AP0239070
Spring
36
AP0258105
Shift cam
37
AP0258038
Fork 4-5 speed
37
AP0258030
Fork 4-5 v.tà
38
AP0258028
Fork 2 speed
38
AP0258020
Fork 2 v.tà
39
AP0258018
Fork 1-3 speed
39
AP0258010
Fork 1-3 v.tà
40
AP0258782
Fork shaft
41
AP0945650
Circlip d14
42
AP0227400
Thrust washer
43
AP0248312
Gear lever
44
AP0241930
Vis
45
AP0297434
Loctite Anti Seize 10 GR.
46
AP0899785
Loctite (violet) 221 10cc.
47
AP0281191
Gear box assy
