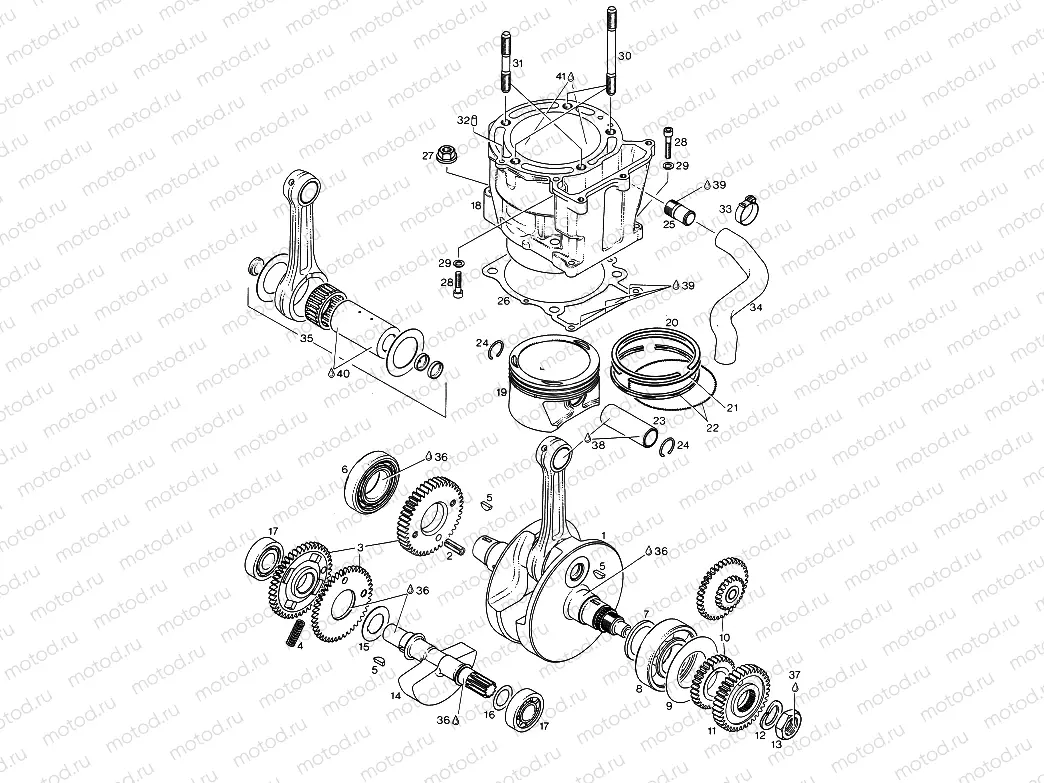

Drive shaft - Cylinder - Piston N>S

Drive shaft - Cylinder - Piston N>S

Например: AP0294375

1

AP0294375

Vilebrequin

2

AP0429150

in 8x24

3

AP0294470

Balance shaft driven gear

4

AP0239015

Spring 16,9

5

AP0246570

Woodruff key

6

AP0832235

Roulement

7

AP0244977

Washer 2,25 mm

7

AP0244975

Washer 1,75 mm

7

AP0244976

Washer 2 mm

8

AP0432122

Roulement

9

AP0244082

Rondelle

10

AP0294483

Timing system gear

11

AP0294400

Clutch drum

12

AP0945759

Break washer a22

13

AP0842230

Nut m22x1,5

14

AP0237990

Balance shaft Z=11

15

AP0227542

Thrust washer 24,3/41/1,5

16

AP0944462

Thrust washer 0,5 mm

16

AP0944461

Thrust washer 20,5x30 sp.03mm

17

AP0232280

Roller bearing

18

AP0223515

Ensemble Cylindre et Piston

18

AP0223517

Ensemble Cylindre et Piston

19

AP0294280

iston assy 99,97

20

AP0215600

Conical ring

21

AP0215610

Ring

22

AP0215620

Oil scraper ring

23

AP0216180

iston pin

24

AP0245700

Stop ring

25

AP0251020

Hose clip 23,5

26

AP0230592

Gasket

27

AP0242851

Nut

28

AP0840880

Vis

29

AP0945751

Break washer a6

30

AP0240705

Stud bolt

31

AP0240545

Stud bolt

32

AP0929650

in 5x10

33

AP0251875

Collier

34

AP0222280

Water pipe

35

AP0294379

Connecting rod

36

AP0297434

Loctite Anti Seize 10 GR.

37

AP0899785

Loctite (violet) 221 10cc.

38

AP0297433

Molykote G-N 50gr.

39

AP0899784

Loctite (orange) 574

41

AP0260310

Rubber spacer

42

AP0430782

pc - O-Ring (23,3x2,4)

43

AP0241370

Cover m24x1
