Главная Каталог товаров HONDA EPC 1100 cm³ - HONDA GL 1500 Gold Wing HONDA GL1500J B / KPH (GL1500J) GOLD WING 1988 HONDA (VIN: 1HFSC220) F-40 WIND SCREEN / BACK MIRROR (GL1500J / K / L / AM / AN)

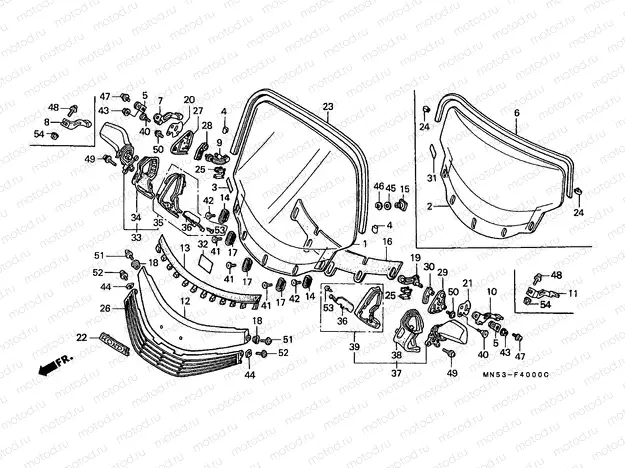

F-40 WIND SCREEN / BACK MIRROR (GL1500J / K / L / AM / AN)

F-40 WIND SCREEN / BACK MIRROR (GL1500J / K / L / AM / AN)

Например: 64130-MW5-000

1

64130-MW5-000

SCREEN COMP., WIND

2

64100-MN5-610

SCREENWIND

74 951 ₽/шт

3

64101-463-891

LABELSCREEN ** NLA**

4

64102-MJ0-000

CLIP, SCREEN MOLDING

393 ₽/шт

5

64103-MN5-000

LEVER A

6

64106-MN5-610

OLDING, WINDSCREEN

7

64107-MN5-000

LEVER R

8

64107-MT8-000

LEVER, R.

1 294 ₽/шт

9

64108-MN5-000

TENTION PLATE COM

10

64109-MN5-000

LEVER

11

64109-MT8-000

LEVER, L.

12

64110-MN5-000

GARNISH SCREEN

13

64111-MN5-000

SEAL WIND SCREEN

14

64113-MN5-000

PLATE, WIND SCREEN SETTIN

708 ₽/шт

15

64114-MG9-770

NUT, WINDSCREEN SETTING

900 ₽/шт

16

64115-MAM-690

CUSHION,SCREEN

17

64116-MN5-000

PLATE, WIND SCREEN SETTIN

550 ₽/шт

18

64117-MW5-000

COLLAR, SCREEN GARNISH

245 ₽/шт

19

64118-MN5-000

TENTION PLATE *** NLA***

20

64123-MN5-000

PLATE RLEVER SID

21

64124-MN5-000

PLATE L LEVER SID

22

64125-MT8-000

EMB SCREEN W ** NLA**

23

64206-MT8-000

OULDINGWIND SCR

24

64208-MG9-710

CLIPSCREEN MOUL

25

64219-MN5-000

CLIP, SCREEN GUIDE

353 ₽/шт

26

64260-MN5-000

LOUVER, FR. UPPER

27

64531-MN5-000

BASE, R. MIRROR

1 511 ₽/шт

28

64532-MN5-000

PLATER.PIVOT

29

64631-MN5-000

BASE, L. MIRROR

1 511 ₽/шт

30

64632-MN5-000

PLATEL.PIVOT

31

87515-MN5-610

LABEL, FAIRING MARK

303 ₽/шт

32

87522-MG9-770

LEBEL WIND SHIELD

33

88110-MN5-602ZC

Rétroviseur droite (YR)

33

88110-MN5-602ZA

Rétroviseur droite (PB)

33

88110-MN5-602ZC

Rétroviseur droite (YR)

33

88110-MN5-602ZA

Rétroviseur droite (PB)

33

88110-MN5-602ZB

Rétroviseur droite (NH)

33

88110-MN5-602ZB

Rétroviseur droite (NH)

34

88113-MN5-003

BOOT,R.

4 133 ₽/шт

35

88114-MN5-003ZC

Base, r. *pb192m*

7 514 ₽/шт

35

88114-MN5-003ZB

ase, r. *pb192m*

7 514 ₽/шт

35

88114-MN5-003ZA

Base, r. *pb192m*

7 514 ₽/шт

36

88119-MN5-000

PLATE SET

37

88120-MN5-602ZC

Rétroviseur gauche (YR)

37

88120-MN5-602ZA

Rétroviseur gauche (PB)

37

88120-MN5-602ZB

Rétroviseur gauche (NH)

37

88120-MN5-602ZB

Rétroviseur gauche (NH)

37

88120-MN5-602ZC

Rétroviseur gauche (YR)

37

88120-MN5-602ZA

Rétroviseur gauche (PB)

38

88123-MN5-003

BOOT,L.

4 070 ₽/шт

39

88124-MN5-003ZC

Base, l. *pb192m*

7 989 ₽/шт

39

88124-MN5-003ZA

Base, l. *pb192m*

7 989 ₽/шт

39

88124-MN5-003ZB

ase, l. *pb192m*

7 989 ₽/шт

40

90104-MJ0-660

Vis (spec)

407 ₽/шт

41

90107-MN5-000

Vis

204 ₽/шт

42

90107-MN5-000

Vis

204 ₽/шт

43

90301-MG8-000

Nut (5 mm)

296 ₽/шт

44

90305-MN5-000

UT, PLATE, 5MM

322 ₽/шт

45

90501-MT2-000

Rondelle

46

90601-473-003

E-RING, 8MM

236 ₽/шт

47

93891-040-0808

Screw-washer

47 ₽/шт

48

93891-050-2207

Screw-washer (5x22)

55 ₽/шт

49

93891-050-2808

Screw-washer (5x28)

55 ₽/шт

50

93893-050-1208

Screw-washer

55 ₽/шт

51

93894-050-1208

Screw-washer

47 ₽/шт

52

93894-050-1607

Screw-washer

47 ₽/шт

53

93901-24280

Vis

39 ₽/шт

54

94001-050-800S

Гайка

39 ₽/шт
