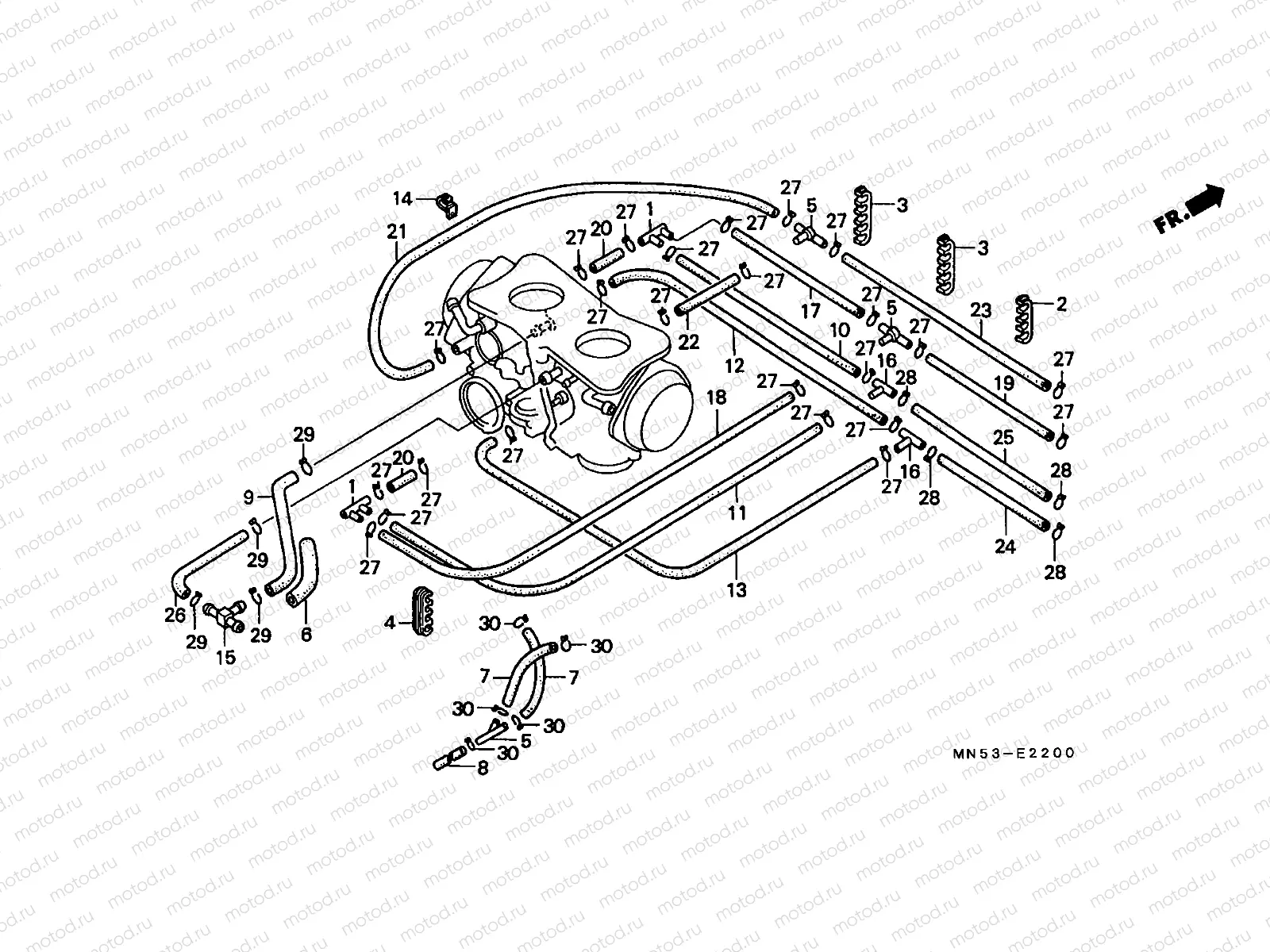

E-22 TUBING (1) (GL1500J)

E-22 TUBING (1) (GL1500J)
Например: 16133-MN5-000
1
16133-MN5-000
JOINT
2
16179-MN5-010
BINDER
3
16179-MN5-601
BINDER
4
16179-MN5-741
BINDER
5
16180-195-731
T-JOINT
723 ₽/шт
6
16198-MN5-000
TUBE
7
16199-428-405
TUBE
535 ₽/шт
8
16199-MN5-405
TUBE
393 ₽/шт
9
17180-MN5-000
Fuel hose
660 ₽/шт
10
17182-MN5-000
TUBEPRIMARY AIR
11
17183-MN5-020
TUBE AIR PRI B
11
17183-MN5-020
TUBE AIR PRI B
12
17184-MN5-010
TUBE AIR PRI C
13
17185-MN5-020
TUBE AIR PRI D
13
17185-MN5-020
TUBE AIR PRI D
14
17191-MN5-740
CLIP, PLATE
15
17193-MN5-000
T-JOINT
1 101 ₽/шт
16
17194-MN5-000
T-JOINT
723 ₽/шт
17
17281-MN5-000
TUBE (150MM)
18
17282-MN5-020
TUBE
18
17282-MN5-020
TUBE
19
17283-MN5-000
TUBE (490MM)
20
17284-MN5-000
TUBE (30MM)
21
17285-MN5-020
TUBE
22
17286-MN5-010
TUBE (40MM)
22
17286-MN5-010
TUBE (40MM)
23
17287-MN5-010
TUBE
24
17288-MN5-010
TUBE AIR PRI F
25
17289-MN5-000
TUBE EAIR PRIMAR
26
16143-KV0-405
Fuel hose
27
95002-02080
Collier
47 ₽/шт
28
95002-02100
Collier
55 ₽/шт
29
95002-02124
CLIP, TUBE (B12)
55 ₽/шт
30
95002-02650
Collier
50 ₽/шт
