Главная Каталог товаров HONDA EPC 1100 cm³ - HONDA GL 1500 Gold Wing HONDA GL1500J B / KPH (GL1500J) GOLD WING 1988 HONDA (VIN: 1HFSC220) F-37 COOLING FAN / SHROUD

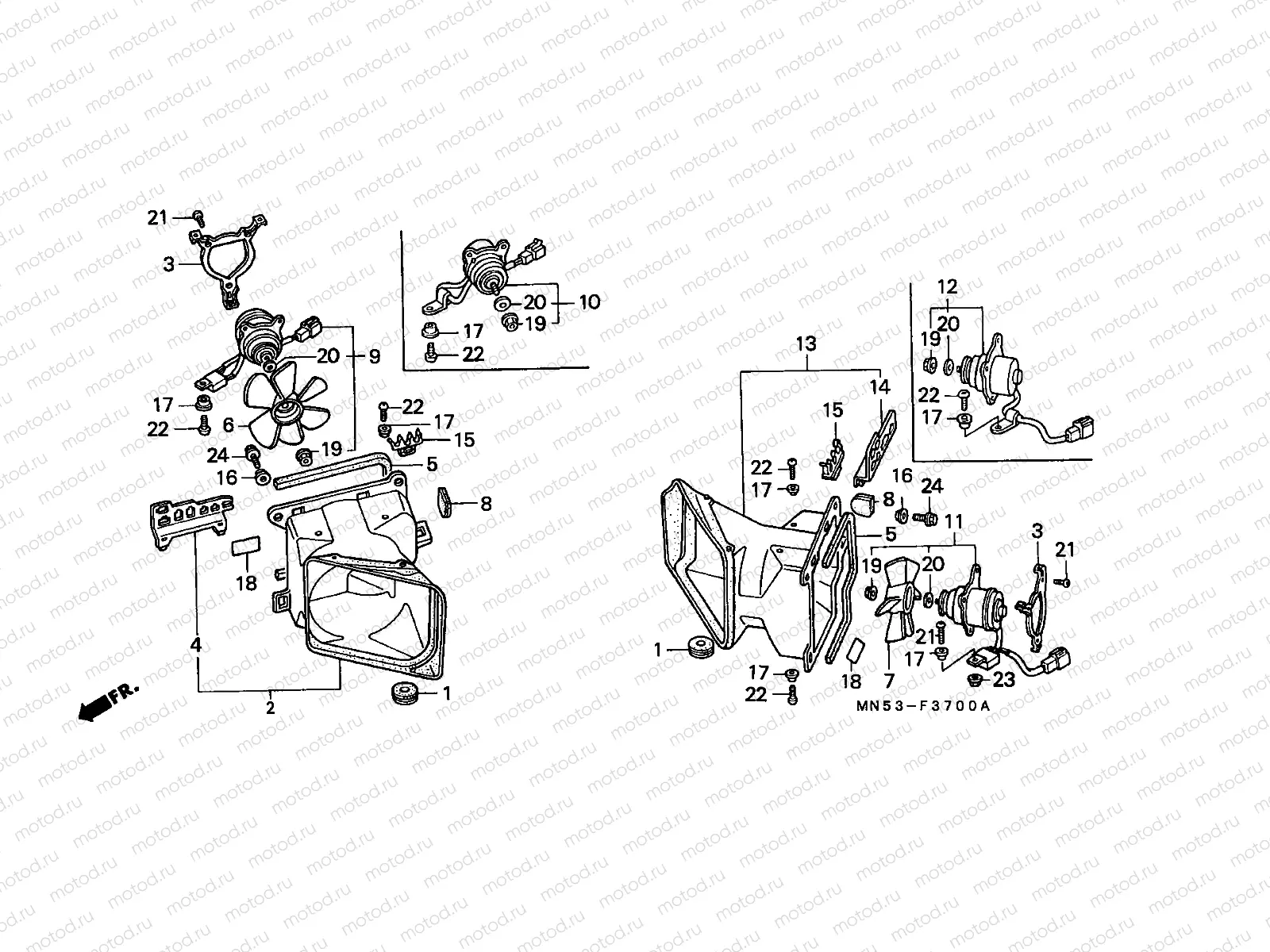

F-37 COOLING FAN / SHROUD

F-37 COOLING FAN / SHROUD
Например: 19012-HB9-000
1
19012-HB9-000
Damper (Radiator)
491 ₽/шт
2
19020-MT2-000
SHROUD ASSY.R.
3
19021-MN5-000
STAYFAN MOTOR
4
19022-MN5-000
HOLDER RSHROUD C
5
19023-MN5-300
SEAL, FAN SHROUD
558 ₽/шт
6
19024-MN5-003
FAN COMP.COOLING
5 029 ₽/шт
7
19025-MN5-003
FAN COMP.COOLING
5 029 ₽/шт
8
19027-MN5-000
GROMMETSHROUD
353 ₽/шт
9
19030-MN5-023
OTOR ASSYFAN R
10
19030-MW5-005
OTOR ASSY., R. FAN
31 118 ₽/шт
11
19032-MN5-023
OTOR ASSYFAN L
12
19032-MW5-005
OTOR ASSYFAN L
31 118 ₽/шт
13
19070-MT2-000
SHROUD ASSY.L.*** NLA ****
14
19070-MT8-770
SHROUD ASSY., L.
15
32981-MN5-003
CLAMP AH/T CORD
16
61105-MA3-000
Entretoise
345 ₽/шт
17
61304-397-830
COLLAR, HEADLIGHT SETTING
197 ₽/шт
18
87509-371-670
LABEL SHROUD FAN ** NLA**
19
90041-PG6-004
NUT, HEX., 5MM (MITSUBA)
156 ₽/шт
20
90511-MB6-003
Rondelle (7 mm)
21
93500-040-060G
Болт
39 ₽/шт
22
93500-050-120A
Болт
39 ₽/шт
23
94050-05080
NUT, FLANGE, 5MM
47 ₽/шт
24
95701-060-1208
ДЕТАЛЬ
58 ₽/шт
