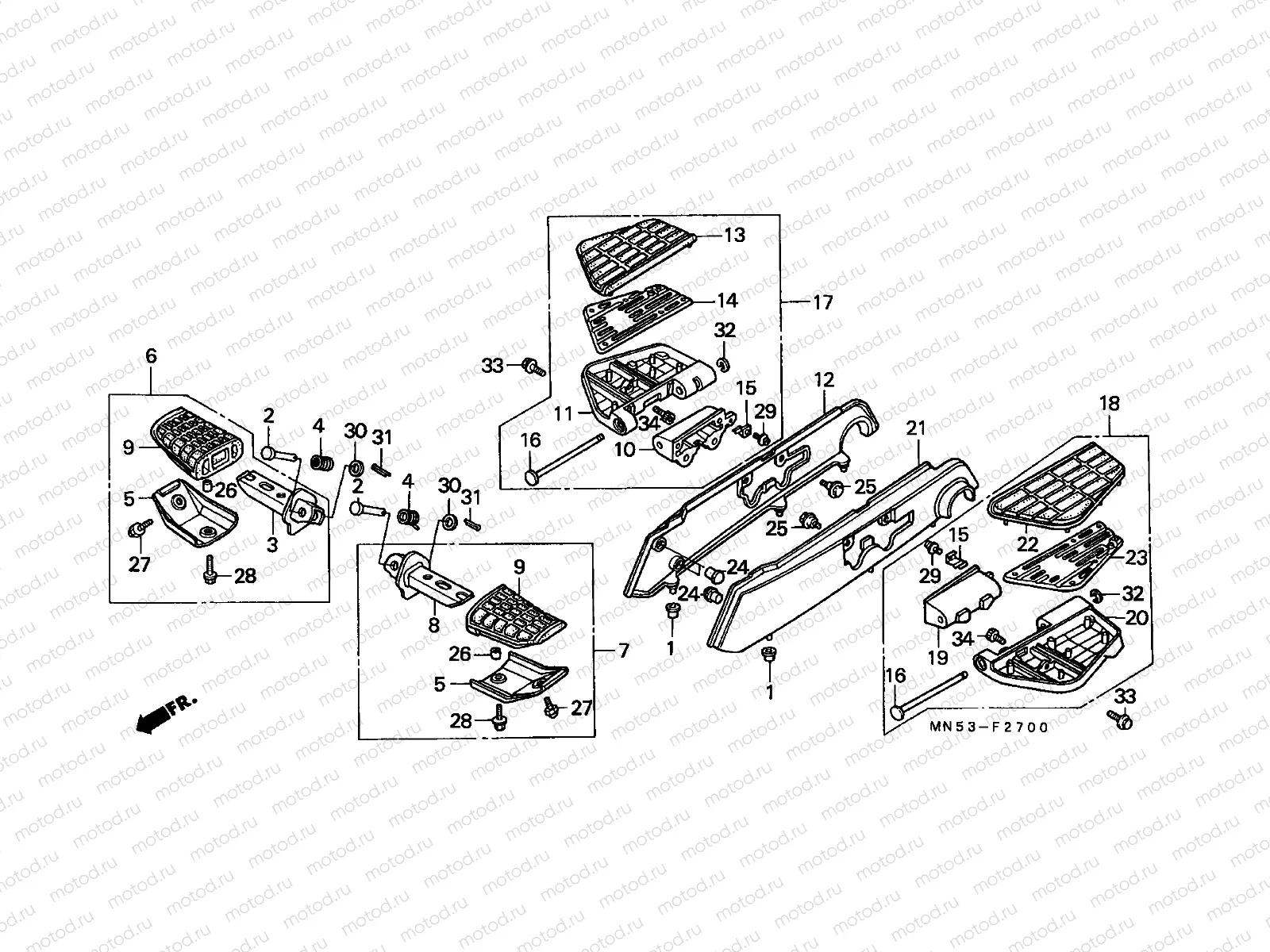

F-27 STEP (GL1500J / K / L / AM / AN)

F-27 STEP (GL1500J / K / L / AM / AN)
Например: 19113-MB1-870
1
19113-MB1-870
RUBBER, RADIATOR MOUNTING
283 ₽/шт
2
50603-MN5-000
PIN, STEP PIVOT
456 ₽/шт
3
50612-MN5-000
BAR COMP.R STEP
4
50617-MB1-700
SPRING, STEP RETURN
409 ₽/шт
5
50619-MN5-000
COVER, STEP LOWER
1 994 ₽/шт
6
50630-MN5-000
STEP ASSY.R MAIN
7
50640-MN5-000
STEP ASSY.L MAIN
8
50642-MN5-000
BAR COMP.L STEP *** NLA***
9
50661-MN5-000
Footrest rubber
1 936 ₽/шт
10
50715-MN5-010
HOLDERR P.STEP
5 387 ₽/шт
11
50716-MN5-505
RP.STEP SET
12
50717-MN5-000
COVERR.PILLION S
13 511 ₽/шт
13
50718-MN5-000
RUBBER, R. PILLION STEP
1 571 ₽/шт
14
50719-MN5-000
PLATE, R. FOOT
1 556 ₽/шт
15
50720-MN5-000
SPRING, PILLION STEP
16
50721-MN5-000
PINP.STEP
17
50730-MT8-000
STEP HOLDER ASSY
16 009 ₽/шт
18
50740-MT8-000
STEP HOLDER ASSY
16 009 ₽/шт
19
50815-MN5-010
HOLDERL.PILLION
5 552 ₽/шт
20
50816-MN5-505
LP.STEP SET
21
50817-MN5-000
COVER, L. PILLION STEP HO
13 728 ₽/шт
22
50818-MN5-000
RUBBER, L. PILLION STEP
1 406 ₽/шт
23
50819-MN5-000
PLATE LFOOT ** NLA**
1 406 ₽/шт
24
84103-443-611
CAP, RR. BUMPER
315 ₽/шт
25
90113-GS6-010
Vis
297 ₽/шт
26
90325-197-000
Entretoise
189 ₽/шт
27
92501-060-080B
olt, cap (6x8)
1 075 ₽/шт
28
93403-060-2000
Bolt-washer
63 ₽/шт
29
93893-050-1208
Screw-washer
55 ₽/шт
30
94102-08000
Rondelle (8 mm)
39 ₽/шт
31
94201-16150
PIN, SPLIT, 1.6X15
39 ₽/шт
32
94540-07010
E-RING, 7MM
197 ₽/шт
33
95701-080-2000
БОЛТ
66 ₽/шт
34
96600-060-1608
Bolt
63 ₽/шт
