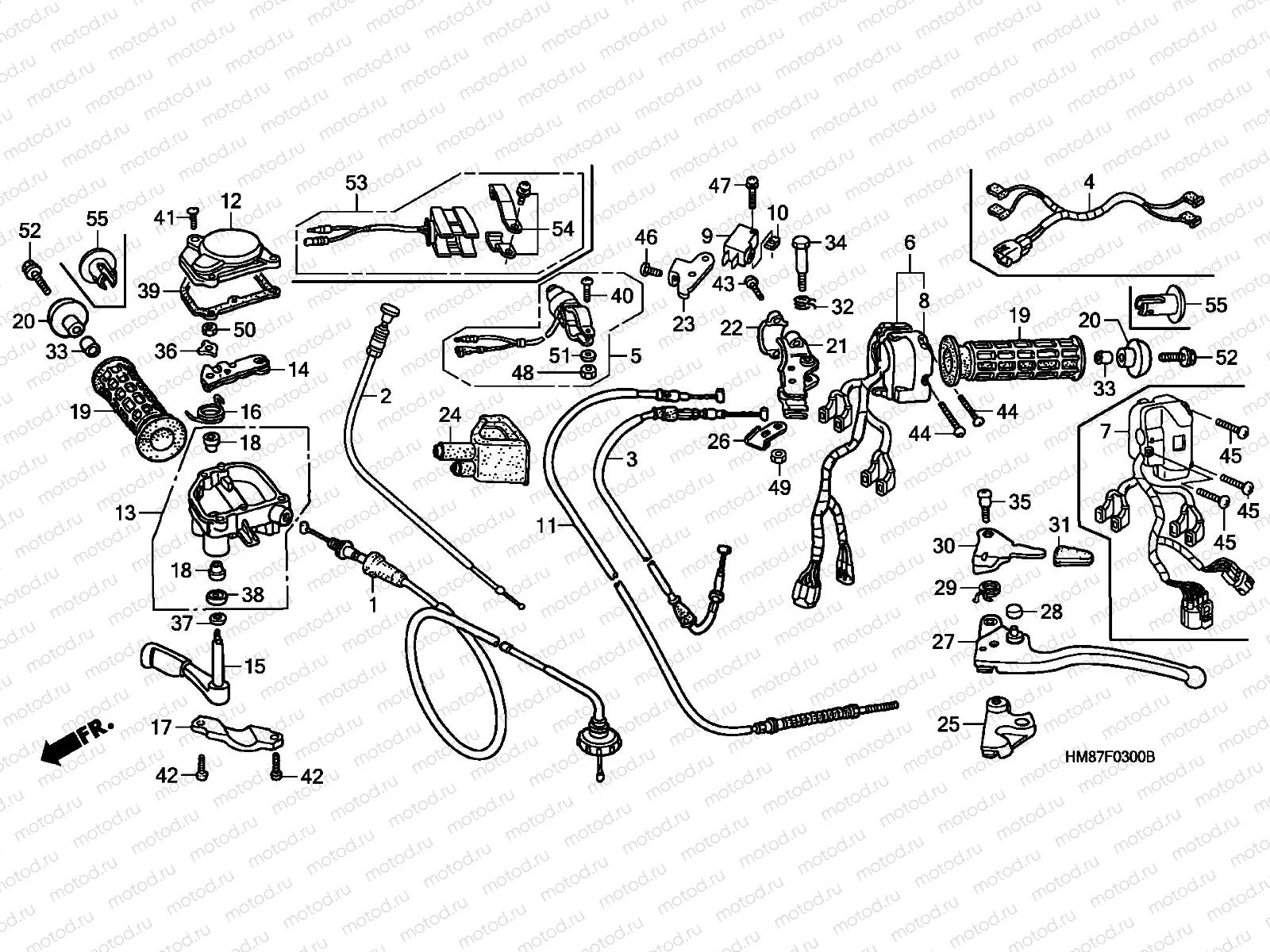

F-3 HANDLE LEVER/SWITCH/CABLE

F-3 HANDLE LEVER/SWITCH/CABLE
Например: 17920-HM8-B00
1
17920-HM8-B00
Câble de gaz
2
17950-HM8-B20
CABLE COMP., CHOKE
3
22880-HM8-B00
CABLE, REVERSE ASSIST
4
32105-HM8-B00
SUB CORDFR STOP
5
35180-HM8-851
SWITCH ASSY., HORN
6
35200-HM8-B00
SWITCH ASSY., LIGHTING &
7
35140-HM8-B73
SWITCH ASSY., ELECTRIC SH
7
35200-HM8-B10
SW.ASSYLH HANDLE
7
35140-HM8-B52
SW ASSYLH HANDLE
8
35201-HB7-671
COVERSWITCH
1 038 ₽/шт
9
35340-ML4-005
Commutateur de feu-stop
1 478 ₽/шт
10
35345-HF1-830
COLLAR, STOP SWITCH
11
43460-HM8-B00
Câble de frein
12
53141-HP1-000
COVER, THROTTLE CASE
13
53143-HM7-305
CASE ASSY., THROTTLE LEVE
14
53144-HA0-010
RM COMP., THROTTLE
723 ₽/шт
15
53145-HA0-770
LEVER, THROTTLE
2 514 ₽/шт
16
53146-HM8-000
SPRING, THROTTLE RETURN
17
53147-HM5-850
OLDER, THROTTLE CASE
18
53148-HA0-000
BUSH, THROTTLE PIVOT
566 ₽/шт
19
53165-958-010
GRIP, HANDLE
1 431 ₽/шт
20
53167-958-680
GUARD, HANDLE END
519 ₽/шт
21
53172-HN5-V60
BRACKET, BRAKE LEVER
22
53173-376-000
HOLDER, LEVER BRACKET
1 289 ₽/шт
23
53174-HN5-V60
STAY, PARKING BRAKE STOPP
24
53177-HN5-M40
COVER, L. HANDLE
25
53179-HA6-000
RM, REVERSE ASSISTANT
26
53179-HN5-M40
OLDER, STOP SWITCH SUB C
27
53180-HA8-770
LEVER COMP., RR. BRAKE
28
53187-VM6-000
CAP, REVERSE PIN
275 ₽/шт
29
53191-961-010
SPRING, PARKING BRAKE LEV
307 ₽/шт
30
53192-HN5-V60
LEVER, PARKING BRAKE LOCK
31
53193-HA0-770
CAP, PARKING LEVER
454 ₽/шт
32
53193-HF1-830
SPRING, RETURN LEVER
33
84906-118-000
COLLAR, NUMBER BRACKET SE
239 ₽/шт
34
90114-HM8-000
BOLT, HANDLE LEVER PIVOT
35
90115-HA6-000
SCREW, PARKING LEVER PIVO
283 ₽/шт
36
90501-HA0-000
WASHER, LOCK, 6MM
272 ₽/шт
37
90504-HA0-000
Rondelle (9x20)
223 ₽/шт
38
91210-HA0-004
DUST SEAL, 9X16X5 (NOK)
404 ₽/шт
38
91210-HA0-004
DUST SEAL, 9X16X5 (NOK)
404 ₽/шт
39
91532-HA0-020
PACKING, THROTTLE CASE
272 ₽/шт
40
93500-040-140B
Screw, pan (4x14)
55 ₽/шт
41
93500-040-160G
Болт
41 ₽/шт
42
93500-050-140G
Screw, pan (5x14)
39 ₽/шт
43
93500-050-180G
Screw, pan, 5x18
41 ₽/шт
44
93500-050-250G
Screw, pan, 5x25
47 ₽/шт
45
93500-050-280G
Screw, pan, 5x28
47 ₽/шт
46
93500-060-160G
Screw, pan (6x16)
47 ₽/шт
47
93893-040-2207
SCREW-WASHER, 4X22
48
94001-040-000S
Гайка
39 ₽/шт
49
94001-060-700S
Гайка
47 ₽/шт
50
94002-060-000S
Гайка
47 ₽/шт
51
94111-04000
WASHER, SPRING, 4MM
41 ₽/шт
52
95701-060-2507
БОЛТ
66 ₽/шт
53
35180-HM8-V81
SW ASSYHORN
54
35181-HM8-V81
BAND SET
55
53167-HP5-600
GUARD, HANDLE END
