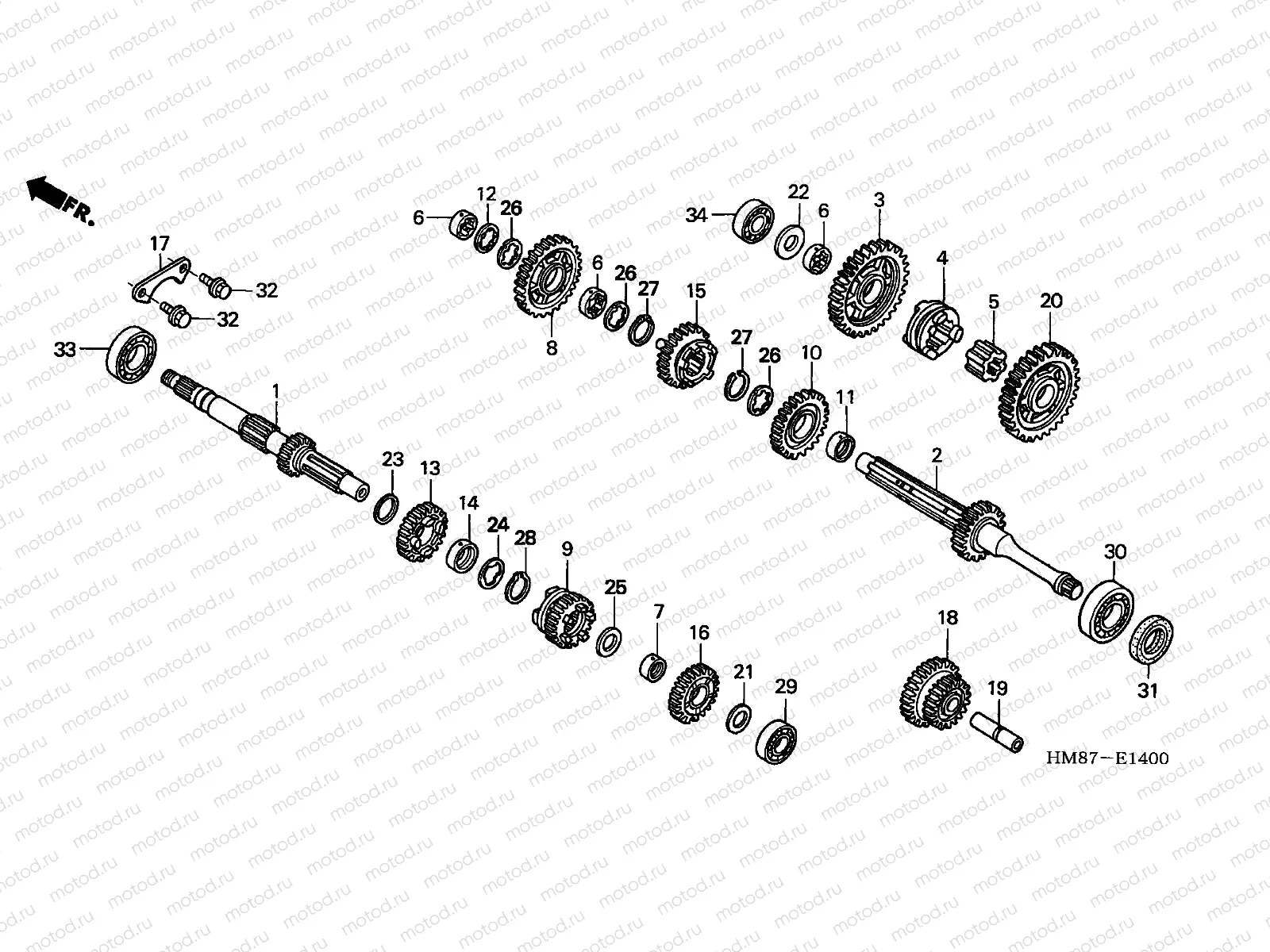

E-14 TRANSMISSION

E-14 TRANSMISSION
Например: 23211-HM8-A40
1
23211-HM8-A40
INSHAFT, TRANSMISSION (
2
23221-HM8-A40
COUNTERSHAFT (25T)
3
23411-HM8-A40
GEAR, COUNTERSHAFT FIRST
4
23412-HM8-A40
SHIFTER, REVERSE COUNTERS
5
23413-HM8-A40
COLLAR, SPLINE
6
23414-HN5-670
BUSH, SPLINE, 25X8.6
7
23415-HB3-000
USH, 15MM
991 ₽/шт
8
23431-HM8-A40
GEAR, COUNTERSHAFT SECOND
9
04101-HM8-505
GEAR SET,M-3&M-5
10
23451-HM8-A40
GEAR, COUNTERSHAFT THIRD
11
23452-HB3-000
USH, 22MM
12
23456-HN5-670
Rondelle (Lock)
13
23461-HM8-B60
GEAR, MAINSHAFT FOURTH (2
14
23462-HB3-000
USH, 20MM
1 180 ₽/шт
15
23471-HM8-A40
GEAR, COUNTERSHAFT FOURTH
16
04101-HM8-505
GEAR SET,M-3&M-5
17
23521-HM8-000
PLATEBRG SET
18
23721-HM8-A40
GEAR, REVERSE IDLE (20T/3
19
23731-HB3-000
SHAFT, REVERSE IDLE
20
23751-HM8-A40
GEAR, COUNTERSHAFT REVERS
21
90451-107-000
Rondelle (15mm)
228 ₽/шт
22
90452-HB3-000
Rondelle (15mm)
23
90454-107-000
Rondelle (20 mm)
228 ₽/шт
24
90455-HM8-A40
WASHER, SPLINE, 20MM
283 ₽/шт
25
90457-HB3-000
Rondelle (15x1)
283 ₽/шт
26
90464-HN5-670
Rondelle (SPLINE, 22mm)
27
90601-329-000
CIRCLIP, 22MM
307 ₽/шт
28
90605-200-000
SET RING, 20MM
283 ₽/шт
29
91001-HN6-003
BEARING, RADIAL BALL SPEC
30
91002-HE0-003
Roulement
1 147 ₽/шт
31
91202-898-003
Joint
32
95701-060-1400
Bolt
55 ₽/шт
33
96100-620-4000
ПОДШИПНИК ВЫЖИМНОЙ
708 ₽/шт
34
96140-62020
Bearing (6202u)
645 ₽/шт
