Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA TRX 250 Fourtrax HONDA TRX250TM6 U / CMF FOURTRAX 250 2006 HONDA (VIN: 1HFTE21U) E-17 CARBURETOR

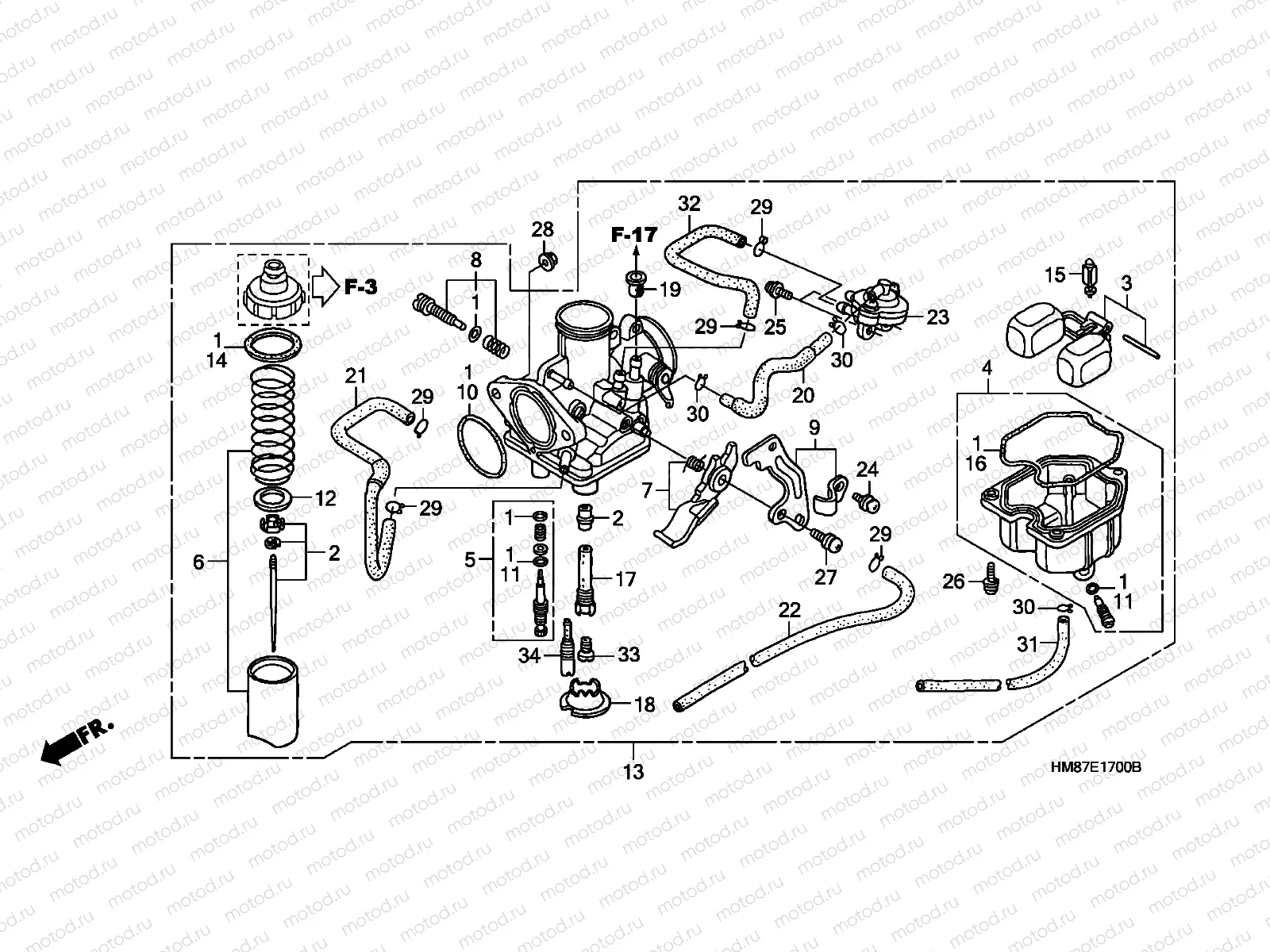

E-17 CARBURETOR

E-17 CARBURETOR
Например: 16010-HM8-000
1
16010-HM8-000
GASKET SET
2
16012-HM8-B01
NEEDLE SET, JET
3
16013-KRP-981
FLOAT SET
4
16015-HN6-003
CHAMBER SET, FLOAT
5
16016-HM8-B01
SCREW SET A
6
16022-HM8-B01
VALVE SET, THROTTLE
7
16025-HM8-B01
LEVER SET, CHOKE
8
16028-KEH-900
SCREW SET B
1 211 ₽/шт
9
16035-HM8-000
PLATE SET, STAY
10
16075-GHB-B70
O-Ring
645 ₽/шт
11
16075-GHB-640
O-Ring
189 ₽/шт
12
16092-HM8-A01
PLATE B, VALVE
13
16100-HM8-B01
CARBURETOR ASSY. (PDC1F A
14
16110-KN4-651
GASKET, TOP
472 ₽/шт
15
16155-KFR-701
VALVE COMP., FLOAT
2 254 ₽/шт
16
16163-KCS-920
Gasket - float chamber
723 ₽/шт
17
16165-HM8-000
OLDER, NEEDLE JET
18
16168-382-014
HOLDER, JET
723 ₽/шт
19
16176-HM8-B01
Filtre à carburant
1 488 ₽/шт
20
16197-HM8-000
TUBE COMP.
21
16198-HM8-000
TUBE COMP.
22
16199-HM8-000
TUBE
23
16510-HM8-B01
VALVE ASSY., AIR CUT
24
93892-040-0808
Screw-washer
52 ₽/шт
25
93892-040-1408
Screw-washer
52 ₽/шт
26
93892-040-1608
Screw-washer
52 ₽/шт
27
93892-050-1208
ШАЙБА
47 ₽/шт
28
94050-06000
Nut
55 ₽/шт
29
95002-02089
Collier
47 ₽/шт
30
95002-02659
Collier (B6.5)
50 ₽/шт
31
95005-352-9050
TUBE 3.5X290
32
95005-451-4020
TUBE, 4.5X140 (95005-4500
33
99101-GHB-0920
Jet (#92)
624 ₽/шт
33
99101-GHB-0980
Jet, main (#98)
594 ₽/шт
34
99103-MT2-0380
Жиклер
912 ₽/шт
