Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA CH 125 Spacy - Elite HONDA CH125J Spacy 125 1988 HONDA F-23-1 RADIATOR (CH125J / L / M / N / P / R)

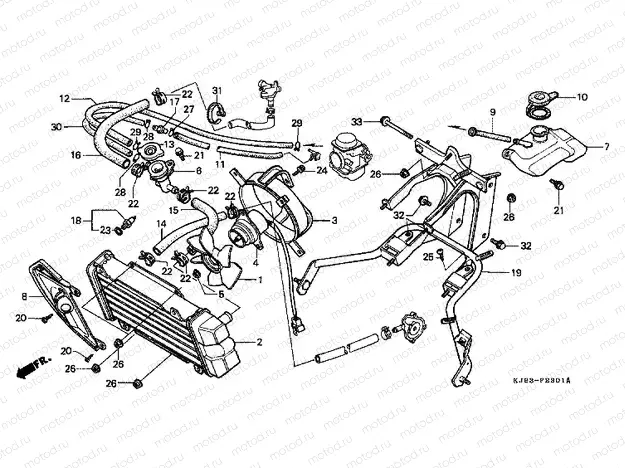

F-23-1 RADIATOR (CH125J / L / M / N / P / R)

F-23-1 RADIATOR (CH125J / L / M / N / P / R)
Например: 19009-KM3-003
1
19009-KM3-003
FAN COMP., COOLING
4 696 ₽/шт
2
19010-KV8-305
Radiateur - refroidisseur d’eau
40 693 ₽/шт
3
19015-KV7-671
SHROUD COMP.
4
19030-KS4-013
MOTOR, COOLING FAN
18 641 ₽/шт
5
19036-KS4-003
NUTTOOTHED3MM
204 ₽/шт
6
19039-KV7-671
NECKFILLER (TOYO
2 095 ₽/шт
7
19101-KV7-670
TANKRESERVE
8
19102-KV8-000
DUCTAIR
9
19103-KV7-670
TUBERESERVE TANK
10
19104-MB0-700
CAP, RESERVE TANK
843 ₽/шт
11
19106-KV7-670
TUBE ARADIATOR
12
19108-KV7-670
HOSERESERVE TANK
13
19111-KE1-013
CAP, RADIATOR FILLER
3 506 ₽/шт
14
19121-KV7-670
HOSE RFR.
15
19123-KV7-670
HOSE ARADIATOR
16
19124-KV7-670
HOSE BRAD
17
19126-KM1-010
JOINT, TUBE
244 ₽/шт
18
37760-KS4-880
WITCH ASSY., THERMOSTAT
9 176 ₽/шт
19
50310-KV7-670
BRKTRAD MT
20
93913-14280
Vis
44 ₽/шт
21
90111-162-000
Vis
338 ₽/шт
22
90682-SB0-671
Collier
393 ₽/шт
23
91214-ZM3-003
OIL SEAL, 15X25X6
24
93891-040-0808
Screw-washer
47 ₽/шт
25
93903-25220
Vis (5x16)
41 ₽/шт
26
94050-06080
Nut (6 mm)
55 ₽/шт
27
95002-02070
Collier
47 ₽/шт
28
95002-02120
Collier
55 ₽/шт
29
95002-80000
CLIP, TUBE (C12)
47 ₽/шт
30
95005-750-5020
TUBE, 7.3X50 (95005-75001
31
32161-404-000
BAND B1, WIRE
283 ₽/шт
32
95701-060-1208
ДЕТАЛЬ
58 ₽/шт
33
95701-060-5508
БОЛТ
86 ₽/шт
