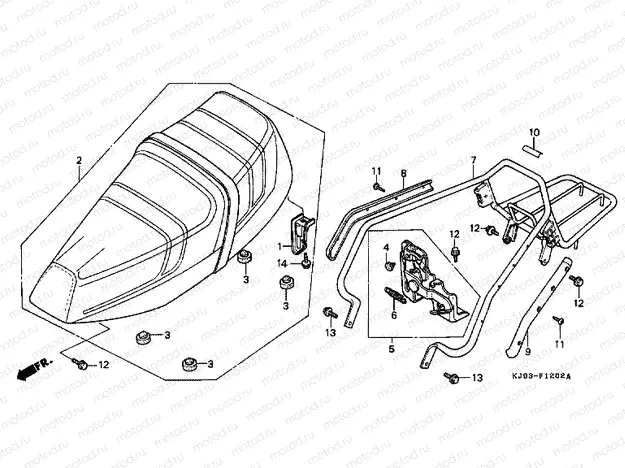

F-12-2 SEAT (CH125J / L / M / N / P / R)

F-12-2 SEAT (CH125J / L / M / N / P / R)
Например: 77102-KV7-670
1
77102-KV7-670
HOOKSEAT LOCK
2
77200-KV8-730ZA
SEAT ASSY*TYPE1*
3
77206-KG8-000
RUBBER, SEAT SETTING
409 ₽/шт
4
77218-KV7-670
GROMMETSEAT LOCK
5
77220-KV7-670
SEAT LOCK COMP.
6
77234-GN2-000
SPRING, SEAT LOCK
283 ₽/шт
7
81200-KV8-000
CARRIERLUGGAGE
8
81205-KV7-670
GRIPR.CARRIER
9
81206-KV7-670
GRIPL.CARRIER
10
81220-GN2-920ZA
Label
262 ₽/шт
11
93903-22120
Vis
39 ₽/шт
12
95701-060-1200
Bolt
58 ₽/шт
13
95701-080-1600
Bolt, flange, 8x16
66 ₽/шт
14
95701-060-1208
ДЕТАЛЬ
58 ₽/шт
