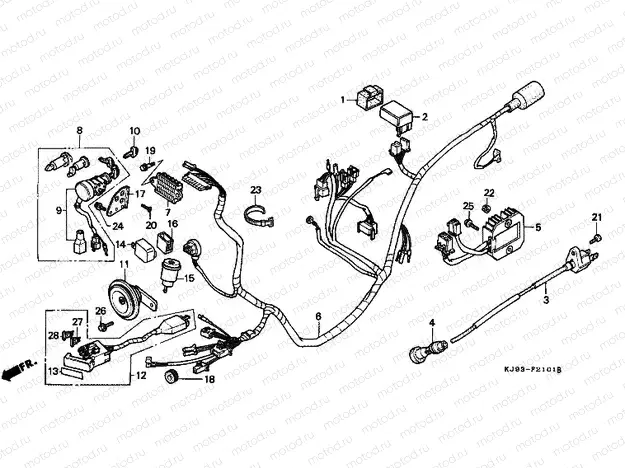

F-21-1 WIRING HARNESS (CH125J / L / M / N / P / R)

F-21-1 WIRING HARNESS (CH125J / L / M / N / P / R)
Например: 30401-KT1-670
1
30401-KT1-670
CUSHION, C.D.I. UNIT
472 ₽/шт
2
30410-KV8-004
CDI unit
3
30510-GR2-405
Bobine d'allumage
7 052 ₽/шт
4
30700-KN7-671
Spark plug cap
5
31600-KV8-681
Régulateur de tension
6
32100-KV8-620
Harness wire
7
32150-GE8-601
MULTI-COUPLER, 15X5 (MALE
1 363 ₽/шт
8
35010-KV8-700
EY SET
9
35100-KV8-700
SW ASSYCOMB&LOCK
10
35122-KAB-812
Clé Vierge
1 054 ₽/шт
11
38110-MM8-610
HORN COMP.
12
38200-KV8-620
BOX ASSY.FUSE
13
38215-KV7-730
LABELFUSE
353 ₽/шт
15
38301-KM1-832
RELAY COMP., AUDIBLE PILO
5 073 ₽/шт
17
53128-KJ9-000
STAYHANDLE LOCK
18
64407-KM1-000
GROM INNER BOX
475 ₽/шт
19
90111-162-000
Vis
338 ₽/шт
20
90164-028-000
SCREW, U-LOCK FLAT, 6X12
204 ₽/шт
21
92101-050-200A
Bolt, hex., 5x20
41 ₽/шт
22
94050-06080
Nut (6 mm)
55 ₽/шт
23
95014-62300
BAND B3, WIRE
165 ₽/шт
24
95701-060-1200
Bolt
58 ₽/шт
25
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
26
95701-080-1200
Bolt, flange, 8x12
66 ₽/шт
27
98200-30500
Fusible (5A)
55 ₽/шт
28
98200-31000
Fusible (10A)
55 ₽/шт
