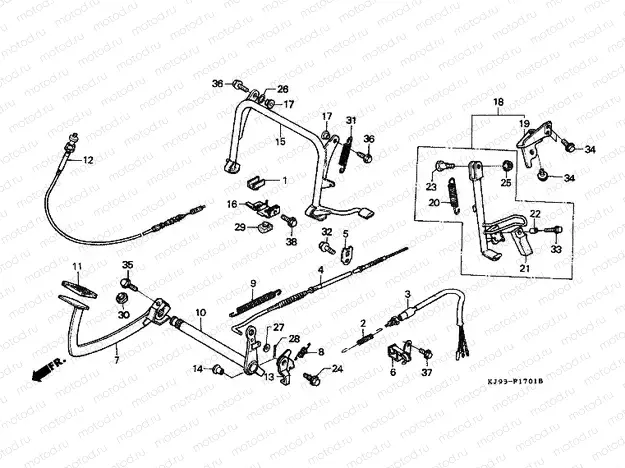

F-17-1 SUPPORT / BRAKE PEDAL (CH125J / L / M / N / P / R)

F-17-1 SUPPORT / BRAKE PEDAL (CH125J / L / M / N / P / R)
Например: 19105-GE2-000
1
19105-GE2-000
PROTRRAD COVER
2
35357-KE4-730
SPRING,STOP SWITC
338 ₽/шт
3
35370-KM1-000
SWITCH ASSY., STARTER STO
1 525 ₽/шт
4
43450-KV8-971
CABLE COMP., RR. BRAKE
5
43451-KG8-000
STOPRR.BRK.CABLE
6
43453-KN7-670
CLAMPRR.BRAKE CA
7
46500-KV7-670
Pédale de frein
8
46510-KJ9-000
SPRING B, BRAKE LOCK CABL
236 ₽/шт
9
46514-KE1-000
Spring (Brake pedal)
10
46515-KV7-671
ARM COMPMIDDLE
11
46545-538-010
COVER, PEDAL
377 ₽/шт
12
46620-KV7-670
CABLE COMP.BRAKE
13
46625-KV7-670
PLATEPEDAL STOPP
14
46633-KJ9-000
BUSHSTOPPER PL
370 ₽/шт
15
50500-KV7-670
Béquille centrale
16
50501-KV7-670
PLATEMAIN STAND
1 163 ₽/шт
17
50504-KJ9-670
Béquille centrale
401 ₽/шт
18
50510-KV7-670
STAND ASSY., SIDE
19
50520-KV7-670
STAYSIDE STAND
20
50532-KN7-670
SPG.SIDE STAND
21
50548-324-760
RUBBER, STAND
708 ₽/шт
22
50549-356-700
COLLAR, STAND RUBBER SETT
283 ₽/шт
23
90108-KN7-670
SCREWSIDE STAND
24
90132-KV7-671
is
503 ₽/шт
25
90309-428-731
Nut
409 ₽/шт
26
91304-035-000
O-Ring
291 ₽/шт
27
94101-06000
Rondelle (M6)
39 ₽/шт
28
94201-20120
PIN, SPLIT, 2.0X12
39 ₽/шт
29
95011-61000
RUBBER A, STAND STOPPER
86 ₽/шт
30
95011-63000
RUBBER C, STAND STOPPER
173 ₽/шт
31
95014-71402
SPRING D, MAIN STAND
165 ₽/шт
32
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
33
95701-060-2507
БОЛТ
66 ₽/шт
34
95701-080-1200
Bolt, flange, 8x12
66 ₽/шт
35
95701-080-3200
Bolt, flange, 8x32
79 ₽/шт
36
95701-100-2508
Bolt
86 ₽/шт
37
96001-060-1200
БОЛТ
69 ₽/шт
38
96001-060-1200
БОЛТ
69 ₽/шт
