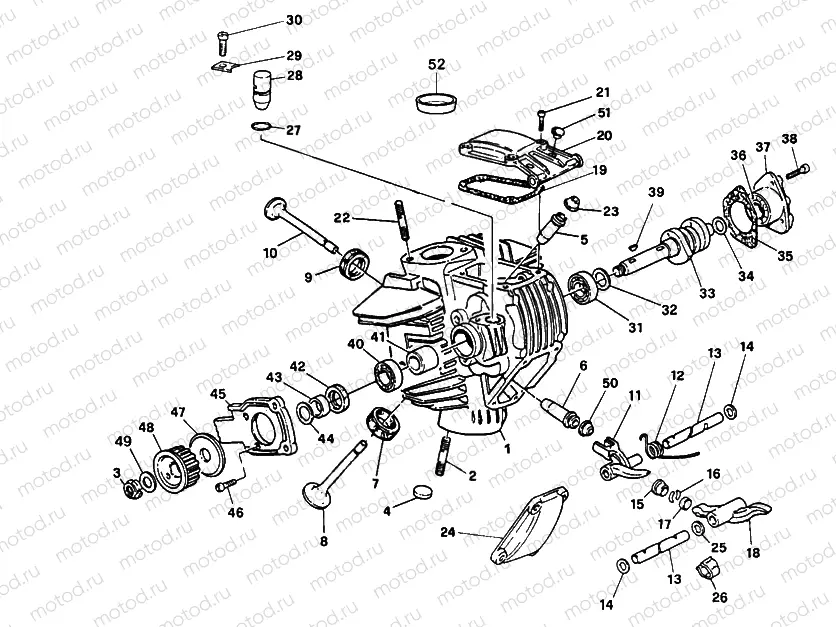

CYLINDER HEAD » ENGINE CASE

1

30120251B

HORIZONTAL HEAD

1

30120252B

HORIZONTAL HEAD

2

037092050

Stud bolt

3

70350062A

ELASTIC-STOP RING NUT

4

70010271A

pc - Damper

5

037092400

INTAKE VALVE GUIDE, CAST IRON

5

037092401

VALVE GUIDE, OVERSIZED

5

037092402

VALVE GUIDE, OVERSIZED

5

037092403

VALVE GUIDE, OVERSIZED

6

037092410

EXHAUST VALVE GUIDE, BRONZE

6

037092411

VALVE GUIDE, OVERSIZED

6

037092412

VALVE GUIDE, OVERSIZED

6

037092413

VALVE GUIDE, OVERSIZED

7

067092370

SEAT, INTAKE VALVE

7

30410211AB

SEAT, INLET VALVE +0.03 MM

7

067092372

INTAKE VALVE SEAT, OVERSIZED

8

21010151A

Valve (IN)

9

067092380

SEAT, EXHAUST VALVE

9

30410221AC

SEAT, EXHAUST VALVE +0.06 MM

9

30410221AC

SEAT, EXHAUST VALVE +0.06 MM

10

21110151A

Valve (EX)

11

20910124A

CLOSE ROCKER ARM

12

79910613A

SPRING, CLOSING ROCKER ARM

13

066092240

ROCKER ARM PIN

13

066092245

ROCKER ARM PIN, OVERSIZED

14

076592205

.THRUST WASHER 10.5X15X0.2

14

067092190

5 pc - Rondelle (10.5x15x2)

14

076592190

.THRUST WASHER 10.5X15X0.5

14

076592190

.THRUST WASHER 10.5X15X0.5

14

076592205

.THRUST WASHER 10.5X15X0.2

15

072792050

RETURN CAP 5.00 MM

15

072792051

RETURN CAP 5.10 MM

15

072792052

RETURN CAP 5.20 MM

15

072792053

RETURN CAP 5.30 MM

15

072792054

RETURN CAP 5.40 MM

15

072792055

RETURN CAP 5.50 MM

15

072792056

RETURN CAP 5.60 MM

15

072792057

RETURN CAP 5.70 MM

15

072792058

RETURN CAP 5.80 MM

15

072792059

RETURN CAP 5.90 MM

15

072792060

RETURN CAP 6.00 MM

15

072792061

RETURN CAP 6.10 MM

15

072792062

RETURN CAP 6.20 MM

15

072792063

RETURN CAP 6.30 MM

15

072792064

RETURN CAP 6.40 MM

15

072792065

RETURN CAP 6.50 MM

15

072792066

RETURN CAP 6.60 MM

15

072792067

RETURN CAP 6.70 MM

15

072792068

RETURN CAP 6.80 MM

15

072792069

RETURN CAP 6.90 MM

15

072792070

RETURN CAP 7.00 MM

15

072792071

RETURN CAP 7.10 MM

15

072792072

RETURN CAP 7.20 MM

15

072792073

RETURN CAP 7.30 MM

15

072792074

RETURN CAP 7.40 MM

15

072792075

RETURN CAP 7.50 MM

15

072792076

RETURN CAP 7.60 MM

15

072792077

RETURN CAP 7.70 MM

15

072792078

RETURN CAP 7.80 MM

15

072792079

RETURN CAP 7.90 MM

15

072792080

RETURN CAP 8.00 MM

15

072792081

RETURN CAP 8.10 MM

15

072792082

RETURN CAP 8.20 MM

15

072792083

RETURN CAP 8.30 MM

15

072792084

RETURN CAP 8.40 MM

15

072792085

RETURN CAP 8.50 MM

15

072792086

RETURN CAP 8.60 MM

15

072792087

RETURN CAP 8.70 MM

15

072792088

RETURN CAP 8.80 MM

15

072792089

RETURN CAP 8.90 MM

15

072792090

RETURN CAP 9.00 MM

15

072792092

RETURN CAP 9.20 MM

15

072792094

RETURN CAP 9.40 MM

15

072792096

RETURN CAP 9.60 MM

15

072792150

RETURN CAP 5.05 MM

15

072792151

RETURN CAP 5.15 MM

15

072792152

RETURN CAP 5.25 MM

15

072792153

RETURN CAP 5.35 MM

15

072792154

RETURN CAP 5.45 MM

15

072792155

RETURN CAP 5.55 MM

15

072792156

RETURN CAP 5.65 MM

15

072792157

RETURN CAP 5.75 MM

15

072792158

RETURN CAP 5.85 MM

15

072792159

RETURN CAP 5.95 MM

15

072792160

RETURN CAP 6.05 MM

15

072792161

RETURN CAP 6.15 MM

15

072792162

RETURN CAP 6.25 MM

15

072792163

RETURN CAP 6.35 MM

15

072792164

RETURN CAP 6.45 MM

15

072792165

RETURN CAP 6.55 MM

15

072792166

RETURN CAP 6.65 MM

15

072792167

RETURN CAP 6.75 MM

15

072792168

RETURN CAP 6.85 MM

15

072792169

RETURN CAP 6.95 MM

15

072792170

RETURN CAP 7.05 MM

15

072792171

RETURN CAP 7.15 MM

15

072792172

RETURN CAP 7.25 MM

15

072792173

RETURN CAP 7.35 MM

15

072792174

RETURN CAP 7.45 MM

15

072792175

RETURN CAP 7.55 MM

15

072792176

RETURN CAP 7.65 MM

15

072792177

RETURN CAP 7.75 MM

15

072792178

RETURN CAP 7.85 MM

15

072792179

RETURN CAP 7.95 MM

15

072792180

RETURN CAP 8.05 MM

15

072792181

RETURN CAP 8.15 MM

15

072792182

RETURN CAP 8.25 MM

15

072792183

RETURN CAP 8.35 MM

15

072792184

RETURN CAP 8.45 MM

15

072792185

RETURN CAP 8.55 MM

15

072792186

RETURN CAP 8.65 MM

15

072792187

RETURN CAP 8.75 MM

15

072792188

RETURN CAP 8.85 MM

15

072792189

RETURN CAP 8.95 MM

16

66910031A

HALF-RINGS

17

072392500

ADJUSTER, ROCKER ARM (2.00 mm)

17

072392501

ADJUSTER, ROCKER ARM (2.10 mm)

17

072392502

ADJUSTER, ROCKER ARM (2.20 mm)

17

072392503

ADJUSTER, ROCKER ARM (2.30 mm)

17

072392504

ADJUSTER, ROCKER ARM (2.40 mm)

17

072392505

ADJUSTER, ROCKER ARM (2.50 mm)

17

072392506

ADJUSTER, ROCKER ARM (2.60 mm)

17

072392507

ADJUSTER, ROCKER ARM (2.70 mm)

17

072392508

ADJUSTER, ROCKER ARM (2.80 mm)

17

072392509

ADJUSTER, ROCKER ARM (2.90 mm)

17

072392510

ADJUSTER, ROCKER ARM (3.00 mm)

17

072392511

ADJUSTER, ROCKER ARM (3.10 mm)

17

072392512

ADJUSTER, ROCKER ARM (3.20 mm)

17

072392513

ADJUSTER, ROCKER ARM (3.30 mm)

17

072392514

ADJUSTER, ROCKER ARM (3.40 mm)

17

072392515

ADJUSTER, ROCKER ARM (3.50 mm)

17

072392516

ADJUSTER, ROCKER ARM (3.60 mm)

17

072392517

ADJUSTER, ROCKER ARM (3.70 mm)

17

072392518

ADJUSTER, ROCKER ARM 3.80 MM (3.80 mm)

17

072392519

ADJUSTER, ROCKER ARM (3.90 mm)

17

072392520

ADJUSTER, ROCKER ARM (4.00 mm)

17

072392521

ADJUSTER, ROCKER ARM (4.10 mm)

17

072392522

ADJUSTER, ROCKER ARM (4.20 mm)

17

072392523

ADJUSTER, ROCKER ARM (4.30 mm)

17

072392524

ADJUSTER, ROCKER ARM (4.40 mm)

17

072392525

ADJUSTER, ROCKER ARM (4.50 mm)

17

072392526

ADJUSTER, ROCKER ARM (4.60 mm)

17

072392527

ADJUSTER, ROCKER ARM (4.70 mm)

17

072392528

ADJUSTER, ROCKER ARM (4.80 mm)

17

072392529

ADJUSTER, ROCKER ARM (4.90 mm)

17

072392530

ADJUSTER, ROCKER ARM (5.00 mm)

17

072392535

ADJUSTER, ROCKER ARM (2.05 mm)

17

072392545

ADJUSTER, ROCKER ARM (2.15 mm)

17

072392555

ADJUSTER, ROCKER ARM (2.25 mm)

17

072392565

ADJUSTER, ROCKER ARM (2.35 mm)

17

072392575

ADJUSTER, ROCKER ARM (2.45 mm)

17

072392585

ADJUSTER, ROCKER ARM (2.55 mm)

17

072392595

ADJUSTER, ROCKER ARM (2.65 mm)

17

072392605

ADJUSTER, ROCKER ARM (2.75 mm)

17

072392615

ADJUSTER, ROCKER ARM (2.85 mm)

17

072392625

ADJUSTER, ROCKER ARM (2.95 mm)

17

072392635

ADJUSTER, ROCKER ARM (3.05 mm)

17

072392645

ADJUSTER, ROCKER ARM (3.15 mm)

17

072392655

ADJUSTER, ROCKER ARM (3.25 mm)

17

072392675

ADJUSTER, ROCKER ARM (3.35 mm)

17

072392685

ADJUSTER, ROCKER ARM (3.45 mm)

17

072392695

ADJUSTER, ROCKER ARM (3.55 mm)

17

072392705

ADJUSTER, ROCKER ARM (3.65 mm)

17

072392715

ADJUSTER, ROCKER ARM (3.75 mm)

17

072392725

ADJUSTER, ROCKER ARM (3.85 mm)

17

072392735

ADJUSTER, ROCKER ARM (3.95 mm)

17

072392745

ADJUSTER, ROCKER ARM (4.05 mm)

18

208Z0011A

OPEN. ROCKER ARM

19

78810322A

pc - Joint de couvercle de soupape

20

24010121AA

COVER, INTAKE VALVE

21

77150668B

Vis

22

705562125

pc - Stud bolt

23

76410091A

.SEAL VALVE STEM

24

24010101AB

VALVE COVER

25

064770010

Rondelle (THRUST)

26

037592210

pc - Spring

27

88640431A

O-Ring

28

87210061A

PLUG

29

82710103A

PLATE

30

77150638B

pc - Vis

31

751102054

.BEARING 20BC10X3 UNI 4259

32

040016190

Rondelle

33

14811571A

HORIZONTAL HEAD CAMSHAFT

34

040029126

.THRUST WASHER 15.5X22X0.5

35

066092310

pc - Gasket

36

751731542

.BEARING 15BC02XV3 UNI 4259

37

23520151B

CAMSHAFT MOUNTING CAP

38

77150678B

pc - Vis

39

68010131A

pc - KEY, WOODRUFF 4X5X10

40

751101747

.BEARING 17BC10X3 UNI 4259

41

066029030

.SPACER 17X25X22

42

020470105

Joint (22 mm)

43

066029035

. PULLEY SPACER

44

061916120

Rondelle

45

066029150

VERTICAL RUBBER CAP

46

77150658B

Vis

47

85610022A

.BELT ROLLER SEPARATING WASHER

48

036729050

PULLEY, TIMING

49

85211731A

0 pc - Rondelle

50

76410131A

2 pc - Joint de couvercle de soupape

51

M300160

.CAP, RUBBER

52

87310011A

.PLUG 16 MM

52

87310021A

PLUG 10 MM

52

87310051A

.PLUG 18 MM

52

87310201A

.PLUG 20 MM
