Главная Каталог товаров DUCATI EPC 1997 DUCATI Monster 750 DUCATI 1997 (VIN: ZDMM100AAV) CRANKCASE » ENGINE CASE

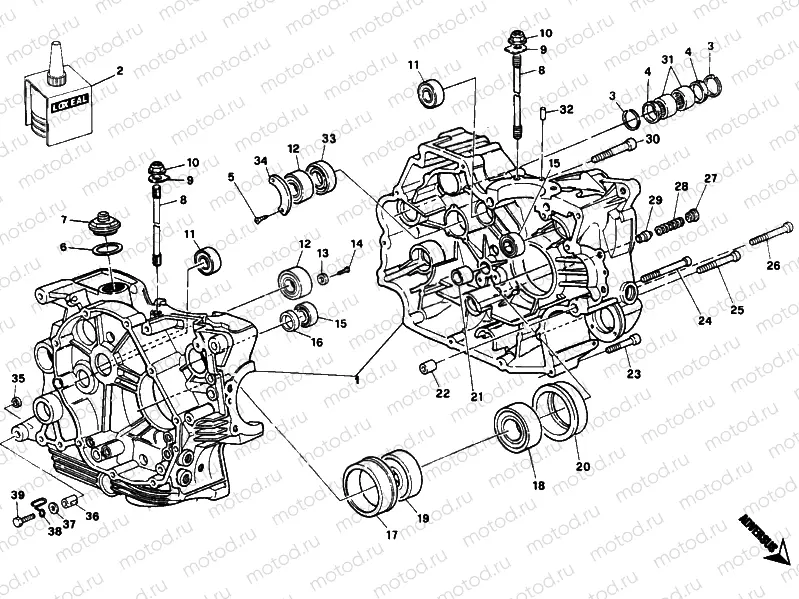

CRANKCASE » ENGINE CASE

CRANKCASE » ENGINE CASE
Например: 22520051B
1
22520051B
CRANKCASE
2
942470014
Gasket - silicone sealant
3
88440531A
pc - .SPRING RING
4
93041271A
pc - . SEAL RING 20X26X4
5
720941616
.SCREW TSPEI M6X12
6
066049920
Gasket
7
59310031B
Oil breather valve
8
76610481A
Stud bolt
9
85610642A
Rondelle
10
74810501A
pc - Nut (M10)
11
70240331A
Roulement
12
751202567
Roulement
13
000017718
Entretoise
14
77052508B
Vis
15
751102054
.BEARING 20BC10X3 UNI 4259
16
937852035
.SEAL RING
17
71010052A
Entretoise
18
751913380
Roulement
19
70240201A
Roulement
20
066049240
BUSHING
21
774993421
pc - BUSH
22
066049320
. LOCATDOWEL
23
77150722B
Vis
24
77151368B
Vis
25
77150752B
pc - Vis
26
77151398B
Vis
27
066049010
THREADED PLUG M18X1.5
28
061949178
BYPASS SPRING
29
066049020
BY-PASS VALVE
30
77157358B
Vis
31
764000004
Needle bearing
32
86010041A
pc - Dowel pin
33
066049268
.OIL SEAL
34
036749275
PLATE, RETAINER
35
71110721B
.BUSH, CONICAL
36
71010321A
SPINDLE, TAPER
37
85211761A
0 pc - Rondelle
38
82911242A
RING
39
77251038B
Vis (M6x25)
